Dried Fruit Horizontal Pouch Packing Machine Zipper Bag Stand Up Pouch Filling Sealing Machine

Application:

This granule packaging machines could realize high filling accuracy, fast packing speed, easy to operate and adjust. It is widely applied in dry fruit, pharmaceutical, food, Daily chemical such as dried mango, beef jerky, nuts, pet food, puffy food, chips, jelly, candy, pistachio nuts, apple slices, frozen dumpling, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Dried Fruit Horizontal Pouch Packing Machine Zipper Bag Stand Up Pouch Filling Sealing Machine

FEATURES

1.Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

2.Precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

3.Minimize the loss with complete automatic warn protection function;

4.Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma

5.It could pack different kind of granule ,puffed food, rice, sugar etc.

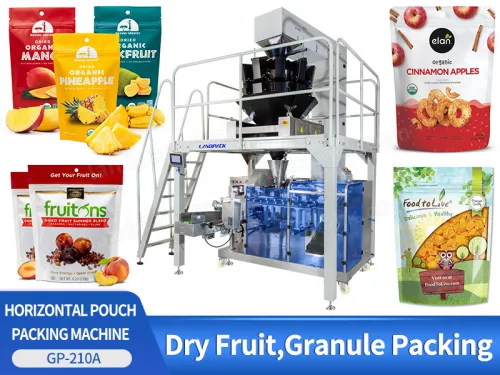

Automatic Horizontal Pre-Made Pouch Doypack Granule Packing Machine With Multihead Weigher

WORKFLOW

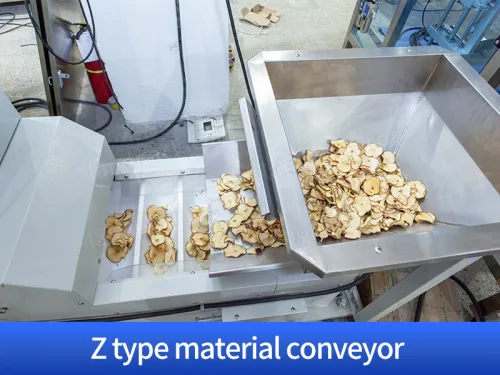

Z-elevator deliver

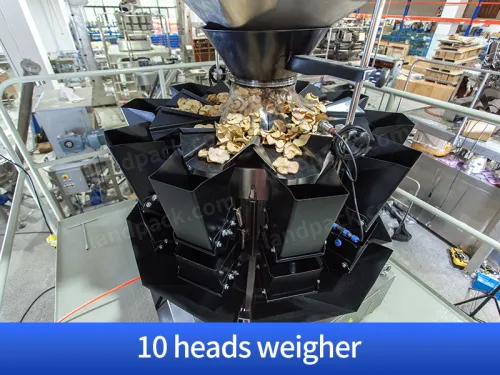

Multi-Head Weigher Measure Weight

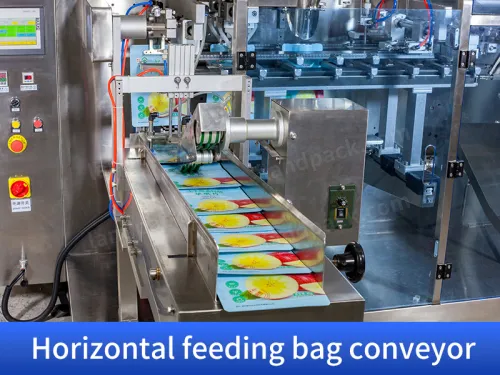

Feeding Bag

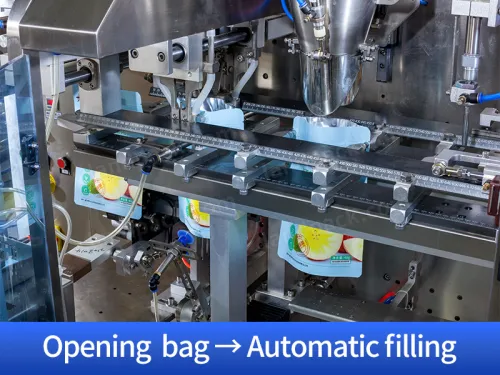

Open Bag

Filling material into bag

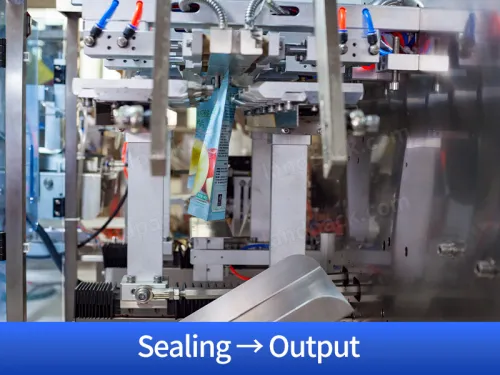

Sealing bag

Output the finished products

PARAMETER

Automatic Granule Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator
