High Precision Nut Groundnut Almond Filling Capping Labeling Machine Line

Application:

Mainly used for automatic filling of granular or flake materials such as dry fruit, nut, groundnut, almond, melon seeds, rice, seeds, pistachios, coffee beans, green beans, white sugar, salt, chicken essence, monosodium glutamate, oatmeal, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Precision Nut Groundnut Almond Filling Capping Labeling Machine Line

FEATURES

1.This is automatically packing line, just need one operator, save more cost of labor.

2. From Feeding / weighing (Or counting ) / filling /capping /Printing to Labeling, This is fully automatic packing line, it more efficiency.

3. Use HBM weighing sensor to weighing Or Counting product, It with more high accuracy, and save more material cost.

4. Using fully packing line, the product will packed more beautiful than Manual packing.

5. Using fully packing line, product will be more safe and clear in the packaging process.

6. All controls are realized by software, which is convenient for function adjustment and technical upgrade, and can adapt to production requirements in different periods.

High Precision Nut Groundnut Almond Filling Capping Labeling Machine Line

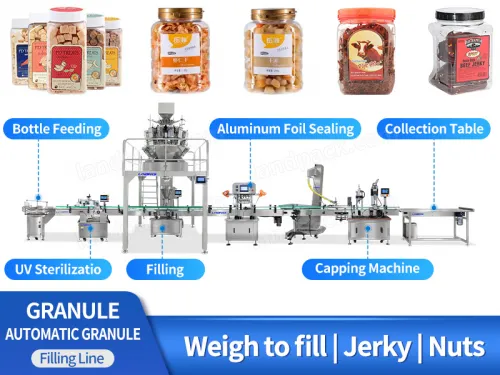

WORKFLOW

Bottle Conveyor Feeding

Automatic Labeling

Multi Heads Granule Weighing And Filling

Double Head Aluminum Foil Sealing

Automatic Servo Capping

Collection Table

PARAMETER

Round Bottle Labeling machine auto labeling
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

			Accuracy weighing and filling
			Model	LF-ZP-008
			Output	20-30 bottles/min
			Bottle diameter	Φ30mm-Φ135mm (customizable)
			Bottle height	40mm-200mm (customizable)
			Power	750W,220V,50Hz
			Weight	200kg

Double Heads Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Autoamtic servo capping machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg
