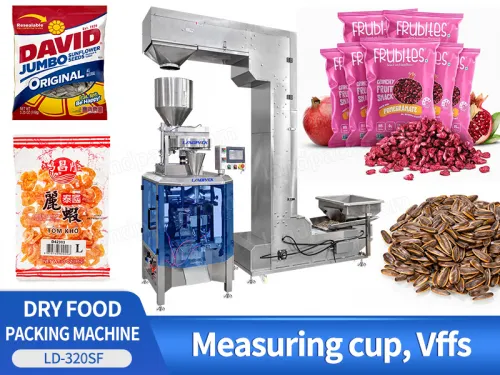

Automatic Vertical Form Fill Seal Sunflower Seeds Dry Food Packing Machine With Volumetric Cups

Application:

The machine is suitable packing for grains, pulses, seeds, salt, coffee beans, maize, nuts, candies, dry food, dried fruits, pasta,vegetables, snacks, pet food, low weighing engineering products and many more.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Vertical Form Fill Seal Sunflower Seeds Dry Food Packing Machine With Volumetric Cups

FEATURES

1. The structure of the machine is tight, firm, with reasonable design and simple appearance.

2. Stepping motor film, can adjust the parameters on the screen, easy to operate.

3. Frequency conversion speed regulation, more stable operation, lower noise, lower failure probability.

4. It can be even packaged or individually packaged, and can be connected to the inflatable device to meet the needs of different products.

Automatic Vertical Form Fill Seal Sunflower Seeds Dry Food Packing Machine With Volumetric Cups

WORKFLOW

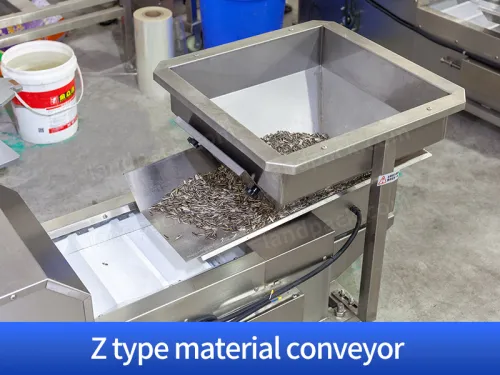

Z Type Buckets Feeding

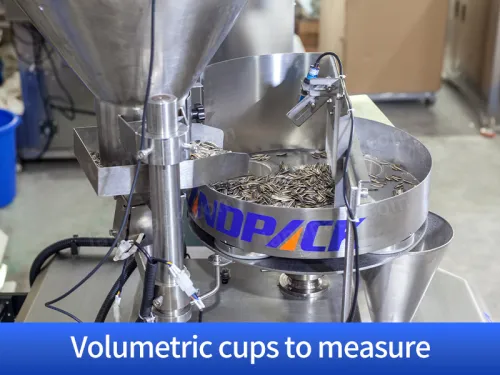

Volumetric Cups Measuring

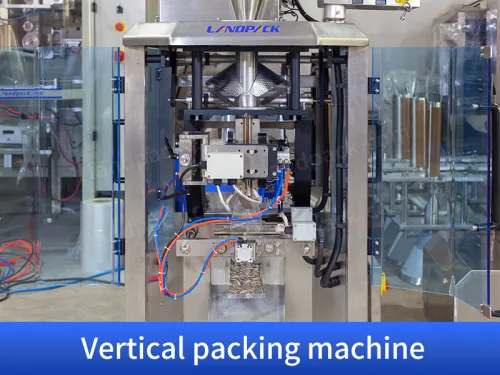

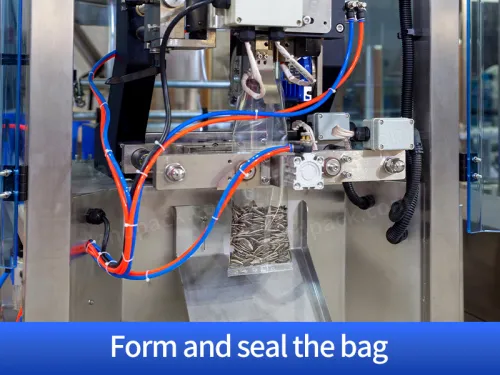

Pouch Packing

Finished Product Output

PARAMETER

Vertical Packing Machine
Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
