Engine Oil Filling & Packing Machine / Line

Home > Applications > Liquid Filling Machine / Line > Engine Oil Filling & Packing Machine / Line > Automatic Engine Oil Motor Oil Bottle Filling Capping Labeling Machine Linear Production Line

Automatic Engine Oil Motor Oil Bottle Filling Capping Labeling Machine Linear Production Line

Application:

The Landpack Automatic Engine Oil Motor Oil Bottle Filling Capping Labeling Machine Linear Production Line is designed for a wide range of applications in the automotive and industrial sectors. It is ideal for filling, capping, and labeling various lubricants, including engine oil, motor oil, transmission fluid, brake fluid, coolant, hydraulic oil, gear oil, and machine oil. Additionally, it can handle other liquid products such as additives and chemicals that require precise and efficient automation. This versatile machine is perfect for manufacturers looking to enhance production efficiency and ensure consistent product quality across different types of fluids.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

The Landpack Automatic Engine Oil Motor Oil Bottle Filling Capping Labeling Machine Linear Production Line is designed for a wide range of applications in the automotive and industrial sectors. It is ideal for filling, capping, and labeling various lubricants, including engine oil, motor oil, transmission fluid, brake fluid, coolant, hydraulic oil, gear oil, and machine oil. Additionally, it can handle other liquid products such as additives and chemicals that require precise and efficient automation. This versatile machine is perfect for manufacturers looking to enhance production efficiency and ensure consistent product quality across different types of fluids.

FEATURES

It is made of electrical components of internationally famous brands.

1. No filling if there is no bottle, no filling if the bottle is falling;

2. Achieve one-click adjustment and can store 40 formulas;

3. Make sure to clean everywhere, particularly those areas out of sight.

4. The submersible filling function can be configured to prevent bubbles during the filling process;

5. The filling accuracy is high, and the vacuum suction device can be configured to achieve equal liquid-level filling;

6. Compared with linear filling, tracking filling is twice as fast.

Automatic 4 Heads Tracking Type Liquid Filling Capping And labeling Line

Automatic 4 Heads Tracking Type Liquid Filling Capping And labeling Line

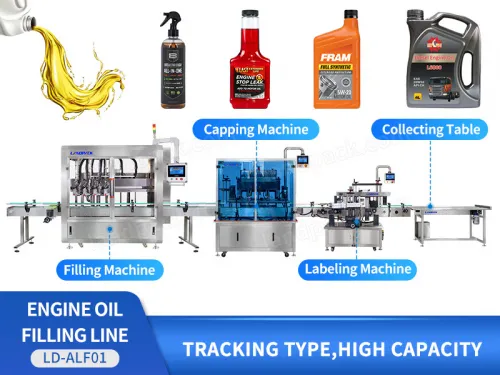

WORKFLOW

01

Diaphragm Pump Feeding for detergent liquid

02

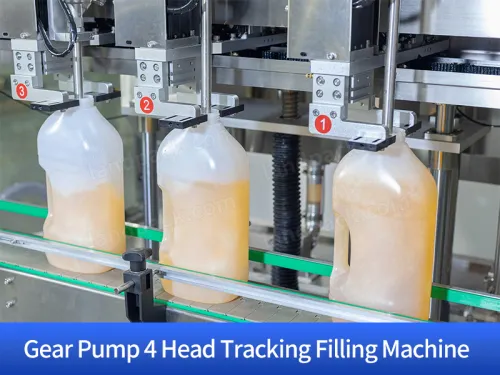

Gear Pump 4 Head Tracking Filling Machine

03

Gear Pump Filling Max 5 liters

04

Filling with Bottom to Up Design

05

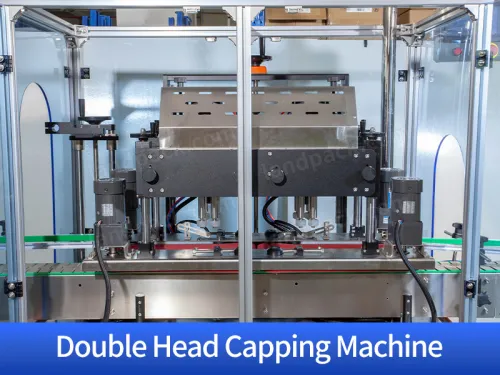

Double Head Capping Machine

06

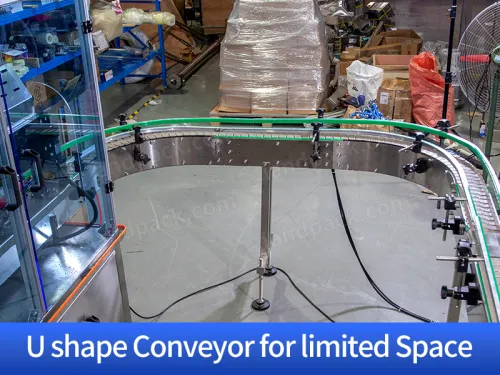

U shape Conveyor for limited Space

07

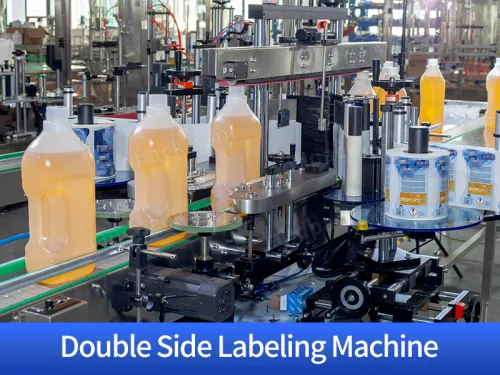

Double Side Labeling Machine

08

Finished Bottle Collector

PARAMETER

Automatic 4 Heads Tracking Type Liquid Filling Capping And labeling LineBottle Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08LFZ-10
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Production Speed<15-25 bottles/min <20-35 bottles/min <30-40 bottles/min <40-50 bottles/min
Measurement Accuracy±1%±1%±1%±1%
Power2KW2.5KW3.5KW5KW
Voltage220V, 50Hz220V, 50Hz220V, 50Hz220V, 50Hz
Air consumption0.6-8Mpa0.6-8Mpa0.6-8Mpa0.6-8Mpa
Weight600kg650kg800kg800kg
DimensionL4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)


Automatic 4 Heads Tracking Type Liquid Filling Capping And labeling LineDouble-head four-wheel capping machine
Speed0-100pcs/Min
Cap TypeScrew cap
Bottle Diameter30-110mm
Bottle Height50-250mm
Cap Diameter18-80mm
Power5KW
Air Pressure0.6-0.8Mpa
Voltage220V/380V, 50Hz/60Hz
Weight1000KG
Dimension2600mm*1200mm * 2050mm


Automatic 4 Heads Tracking Type Liquid Filling Capping And labeling LineAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm20mm~300mm
Label width/height20mm~200mm(can be customized)20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)30-150mm(can be customized)
Roll Label outer diameter300mm300mm
Roll Label inner diameter76mm76mm
Accuracy±1mm±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)Adhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa0.4-0.6Mpa
Voltage220V can be customized 4KW220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
