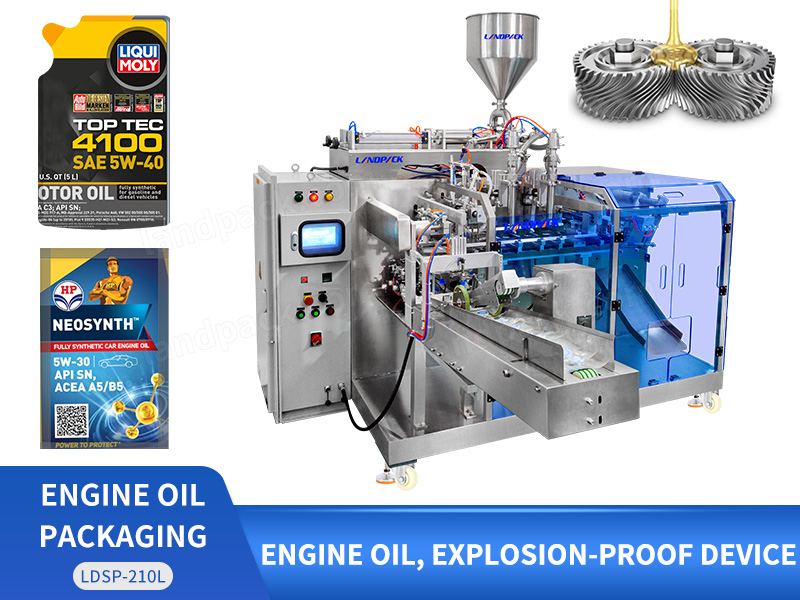

Automatic Filling Sealing Premade Stand Up Doypack Liquid Engine Oil Bag Pouch Packing Machine

Introduction:

This liquid filling packing machine s suitable for engine oil, honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This liquid filling packing machine s suitable for engine oil, honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.

Automatic Filling Sealing Premade Stand Up Doypack Liquid Engine Oil Bag Pouch Packing Machine

FEATURES

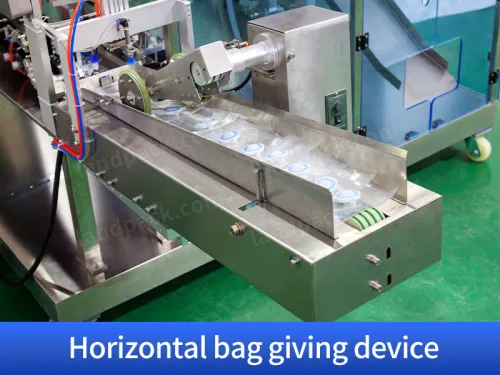

1.Horizontal bag loading device, the bag can hold a large number.

2.Double-piston metering pump, wide metering range.

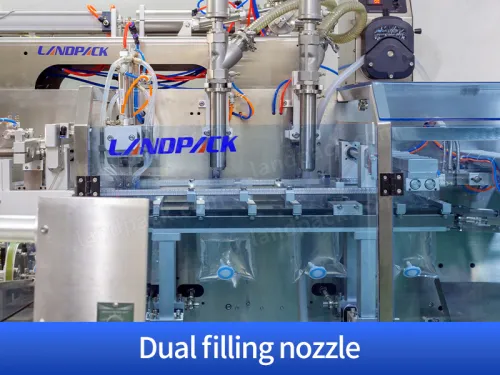

3.Double feeding nozzles to increase the packaging speed.

4.The machine can be equipped with different metering systems, such as weighers, liquid pumps, auger fillers, and bucket chains, to handle diverse product filling and packaging needs for premade bags.

5.Modular heating, temperature control more accurate, heating fault have alarm prompt.

6.Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quaity and grade of the product.

Automatic Liquid Doypack Filling Packing Machine For Premade Bag

WORKFLOW

01

Pouch Loading

02

Pouch Picking

03

Pouch Opening

04

Liquid Filling

05

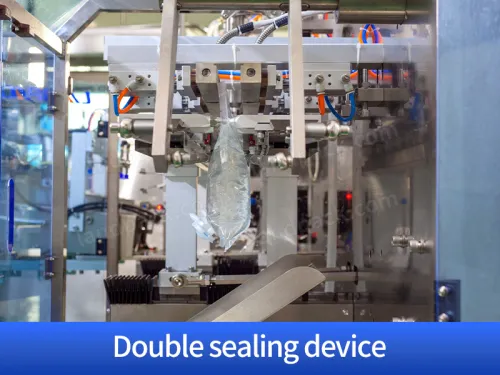

Sealing

PARAMETER

Automatic Filling Sealing Premade Stand Up Doypack Liquid Engine Oil Bag Pouch Packing MachineTypeLDSP-160LDSP-160YLDSP-210LDSP-260

Bag Type3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.

Bag Size110-230mm*80-160mm(L*W)70-100mm*110-230(L*W)100-210mm/110-320mm(L*W)100-260mm/110-320mm(L*W)

Filling Range10g-100g10g-100g10g-1kg10g-3kg

Packing Speed20-45bags/min(speed is determined 25-50bags/min(speed is determined 20-50bags/min (speed is determined20-50bags/min (speed is determined

by the product filling quantity)by the product filling quantity)by the product filling quantity)by the product filling quantity)

Machine weight800KG800KG900KG1000KG

Total Power2.0KW2.0KW2.0KW2.0KW

Work Flow1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling   5.Heating sealing     6.Output of product

Dimensions1750mm X 1285mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)
CollocationScrew metering,screw elevator
