Applications

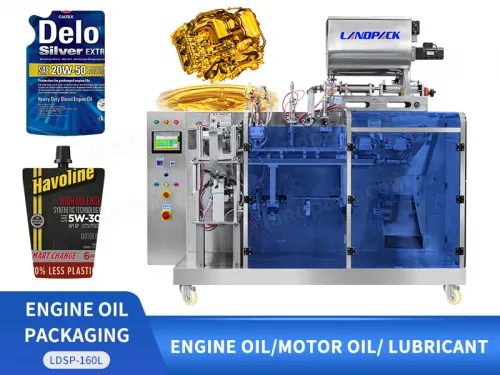

Horizontal Automatic Engine Oil Premade Pouch Spout Pouch Filling Sealing Machine

Introduction:

Suitable for automatic packing for liquid, such as engine oil, sauce, rice vinegar, fruit juice, mayonnaise, salad dressing, beverage, chocolate sauce, tomato sauce, peanut butter, jam, paste, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for automatic packing for liquid, such as engine oil, sauce, rice vinegar, fruit juice, mayonnaise, salad dressing, beverage, chocolate sauce, tomato sauce, peanut butter, jam, paste, etc.

Horizontal Automatic Engine Oil Premade Pouch Spout Pouch Filling Sealing Machine

FEATURES

1. Versatile Packaging: Suitable for packing various sauces, soups, and dipping sauces.

2. Double Sealing: Ensures tighter, more attractive packaging with no leakage.

3. Large Filling Tube: Accommodates both sticky and non-sticky sauces efficiently.

4. Premade Bag Packaging: Enhances product presentation and adds value.

Horizontal Automatic Engine Oil Premade Pouch Spout Pouch Filling Sealing Machine

WORKFLOW

Horizontal storage tank

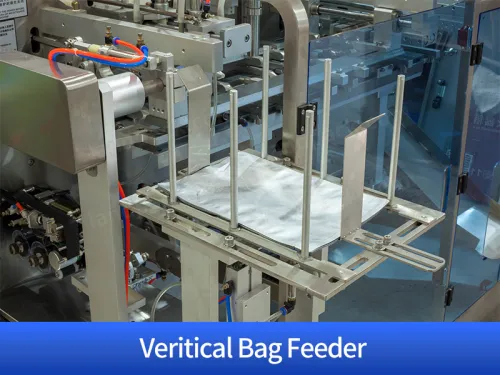

Vertical bag feeder

Ribbon code print

Open bag

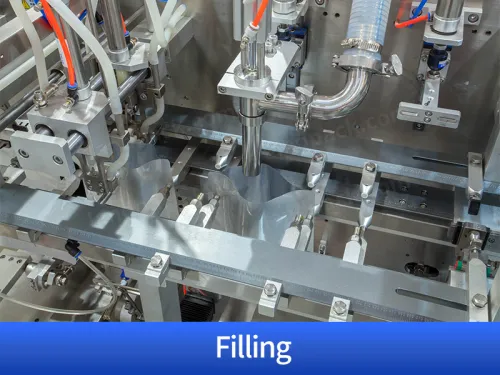

Filling

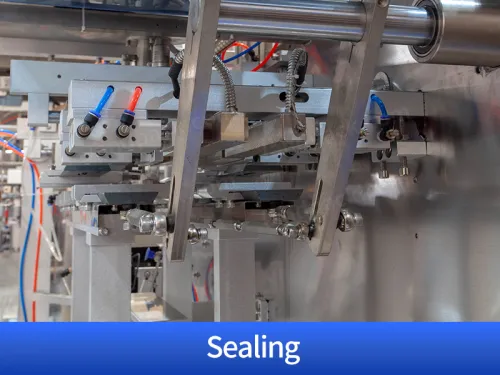

Hot sealing

Product Output

PARAMETER

Horizontal Automatic Engine Oil Premade Pouch Spout Pouch Filling Sealing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min(speed is determined	20-50 bags/min (speed is determined	20-50 bags/min (speed is determined
	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag, 2. Pick up the bag(coding), 3.Open the bag up and down, 4.Filling, 5.Heating sealing, 6.Output of product
Dimensions	1750mm1285mm1360mm(LWH)	2140mm1366mm1360mm(LWH)	2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator
