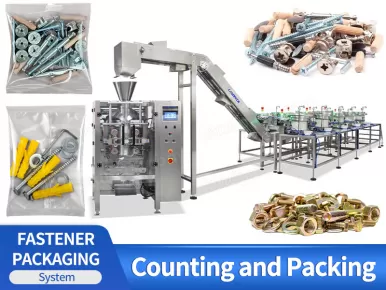

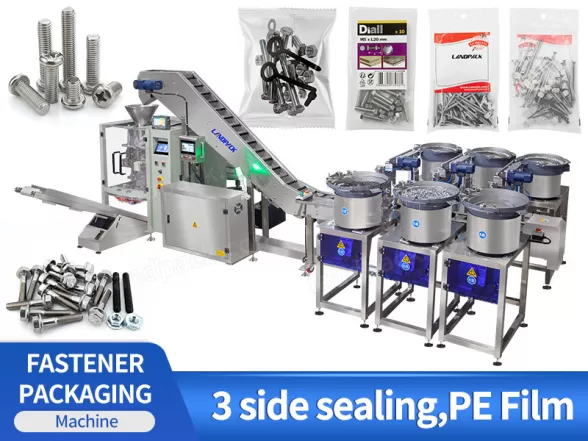

Automatic Fastener Gasket Screw Nut Hardware Bag Fill And Seal Counting Packing Machine

Application:

This automatic counting and packing machine is ideal for a range of hardware and small parts, including fasteners, hinges, screws, nails, bolts, wood dowel, nuts, gaskets, plastic parts, furniture and toy accessories, and various other components. It ensures efficient and accurate counting and packing for diverse industrial applications.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This automatic counting and packing machine is ideal for a range of hardware and small parts, including fasteners, hinges, screws, nails, bolts, wood dowel, nuts, gaskets, plastic parts, furniture and toy accessories, and various other components. It ensures efficient and accurate counting and packing for diverse industrial applications.

Automatic Fastener Gasket Screw Nut Hardware Bag Fill And Seal Counting Packing Machine

FEATURES

1. Flexible Machine suits for different hardware sizes.

2. Can be packaged separately or mixed with 6 different hardware packaging.

3. Stable and high-speed running.

4. Roller film spreading mechanism, PE film transverse sealing mechanism.

Automatic Fastener Gasket Screw Nut Hardware Bag Fill And Seal Counting Packing Machine

WORKFLOW

01

Film releasing

02

Heat transfer printing and coding

03

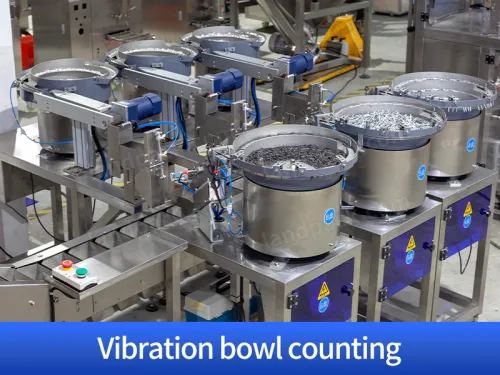

Vibration bowl counting

04

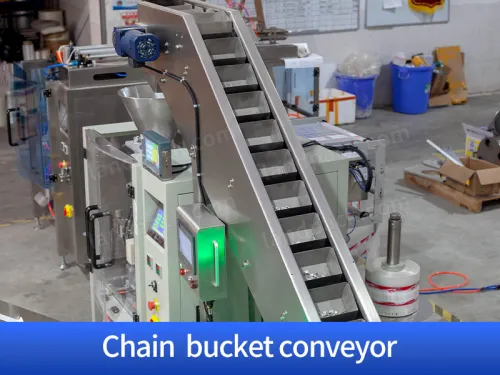

Chain bucket conveyor

05

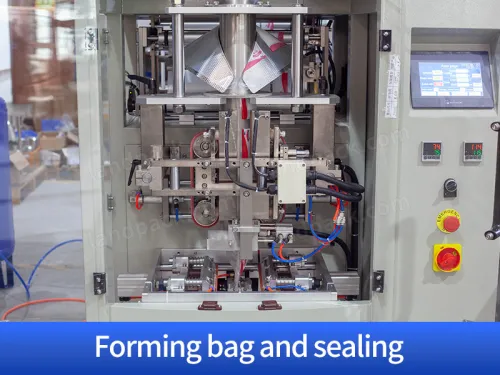

Bag making and hole making

06

PE film transverse sealing mechanism

PARAMETER

Automatic Fastener Gasket Screw Nut Hardware Bag Fill And Seal Counting Packing MachineFastener Gasket Screw Nut Hardware Bag Fill And Seal Counting Packing Machine
Production capacity5-50 bags/min
Diameter of film rollmaximum 300mm
Packaging film width120-320 mm
outer bag sizethe longest 200mm widest 150mm product packaging聽
Air pressure0.5-0.7Mpa
Machine noise聽less than 80db(A)decibel聽
Heating power2.2Kw
Total weight of the machine300KG
Machine sizetotal length 970mm* total width 680mm* total height 1950mm
