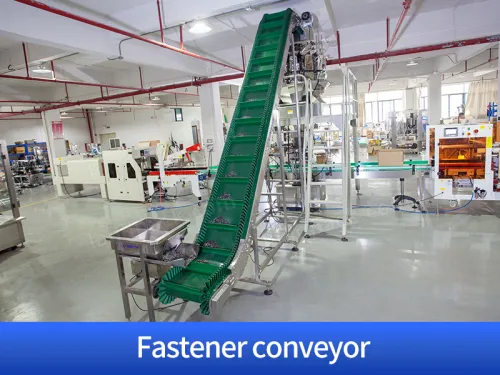

Automatic Fastener Hardware Metal Washer Bag Packing And Boxing Packing Machine Line

Application:

This Multifunction Bag Packing And Boxing Line is suitable for heavy bag packing and boxing, apply for screws, hardware, nails, beautiful sealing and high accurate weihing, Save labor cost and improve efficiency.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Fastener Hardware Metal Washer Bag Packing And Boxing Packing Machine Line

FEATURES

1. Automatic metal washer bag packing and boxing packing machine line.

2. Heavy bag packing and boxing

3. Save labor cost and improve efficiency

4. Suitable for PE material film, beautiful sealing and high accurate weihing

5. Separate PID temperature controller, suitable for various packing materials.

Automatic Fastener Hardware Metal Washer Bag Packing And Boxing Packing Machine Line

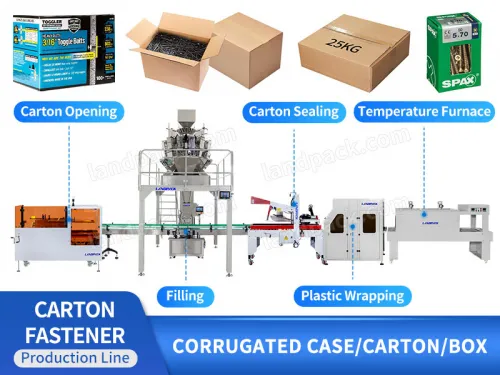

WORKFLOW

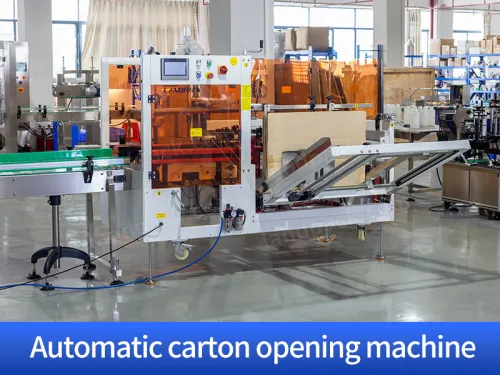

Carton Opening

Nail filling

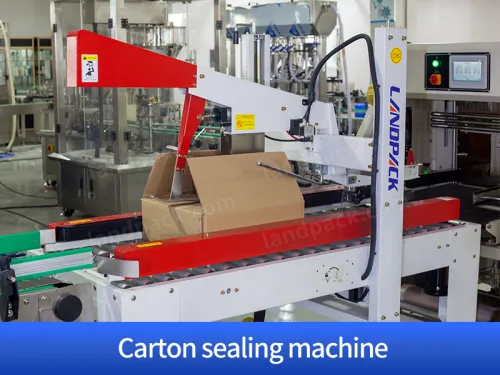

Box sealing

Shrink Labeling

PARAMETER

			Speed	12 ctns/min
			Carton Max Size	L450×W400×H400mm
			Carton Min Size	L250×W150×H100mm
			Power Supply	110/220V 50/60Hz
			Power	220W
			Adhesive Tape Width	48/60/75mm
			Carton Storage Quantity	80-100pcs (800-1000mm)
			Air Consumption	420NL/min
			Air Compressing	6kg/cm³ /0.6Mpa
			Table Height	580+30 mm
			Machine dimension	L1800×W1800×H1250mm
			Machine Weight	350Kg

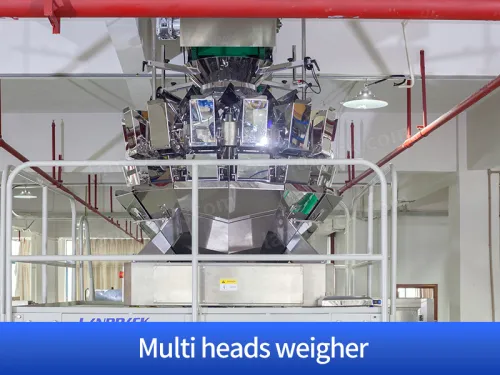

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

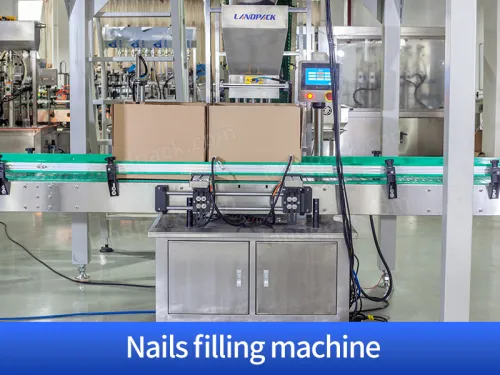

			Accuracy weighing and filling
			Model	LF-ZP-10
			Output	20-30 bottles/min
			Bottle diameter	Φ30mm-Φ135mm (customizable)
			Bottle height	40mm-200mm (customizable)
			Power	750W,220V,50Hz
			Weight	200kg

			Packing Speed	0-20m/min
			Max Packing Size	L500×W500×H500mm
			Min Packing Size	L200×W150×H150mm
			Applicable tape	W48mm/60mm/75mm
			Power	220/380V, 50/60Hz 200W
			Machine size	L1700×W880×H1450mm (without front and rear roller frame)
			Machine weight	260 kg

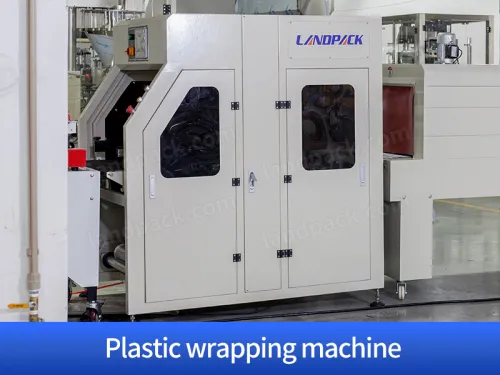

			Shrink Wrapping Machine
			Sealing Type	Continuous Sealing
			Installed Power	220V/ 60HZ
			Packing Capacity	Max. 40 Packs per Minute (Depends on Product Size)
			Sealing Height/ Packing Width	220MM/ 500MM
			Air Pressure	0.5MPA (5 BAR)
			Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
			Sealing Machine Dimensions	2600 X 1450 X 1680 MM

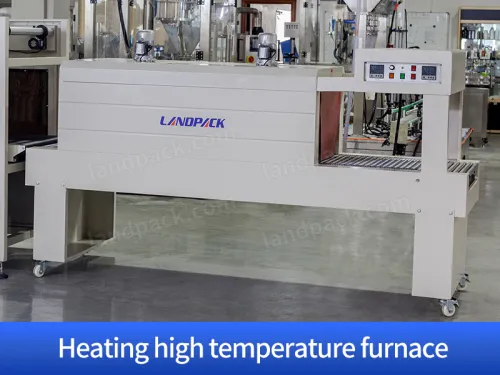

			Shrink Tunnel
			Oven Size	1500MM (L), Entrance 600(W) X 300(H) MM
			Conveyor	Chains with Rotating Silicon Coated Rods
			Tunnel Machine Dimensions	1800 X 980 X 1560 MM
			Weight (Net/ Gross)	1000KGS/ 1100KGS (For Reference Only, Including Sealer and Tunnel)
