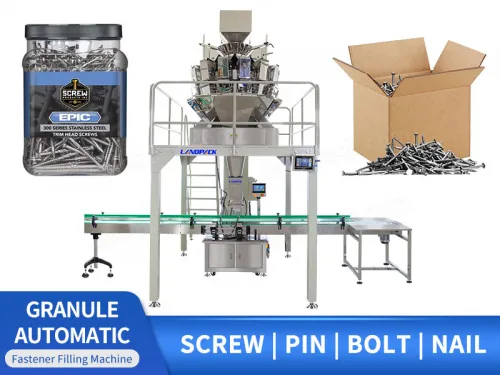

Automatic Hardware Carton Boxing Machine For Fastener Screw Nut Bolt Nail

Application:

It is fully automatic Carton Boxing Machine. it could weight and fill 125g to 25kg screw, nail, fastener, hardware into the cartons automatically. It will help customers to save the labor cost and improve the production.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Hardware Carton Boxing Machine For Fastener Screw Nut Bolt Nail

FEATURES

1. There is a Z type fasteners conveyors to bring the fasteners from the ground to the weigher.The transport speed is around 3m3/h.

2. Heavy boxing packing

3. Save labor cost and improve efficiency

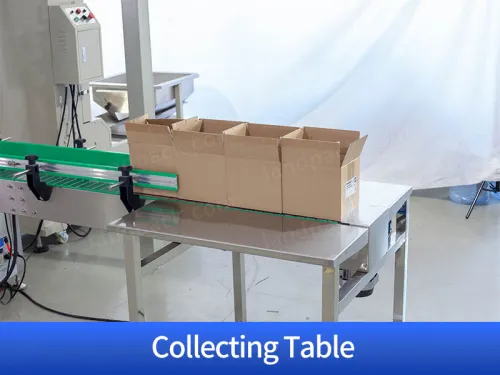

4. The finished product conveyor transport the finished products packing from the machine to the collecting table, so the worker could pick up and count the finished products directly and continuously.

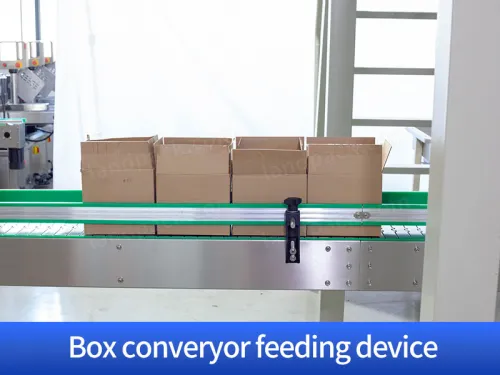

5. The transport conveyor for the cartons. It is adjustable conveyor and suits for differet cartons size. The workers could adjust the both sides of the conveyor.

Automatic Hardware Carton Boxing Machine For Fastener Screw Nut Bolt Nail

WORKFLOW

Empty Carton feeding

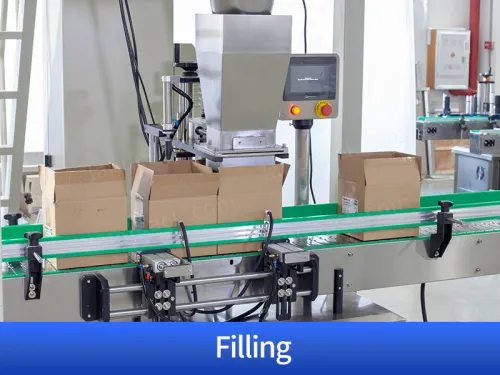

fastener filling into carton

PARAMETER

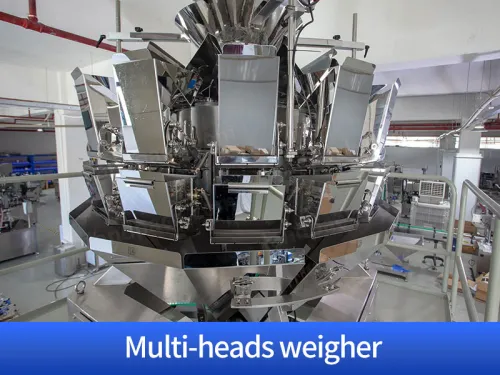

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes

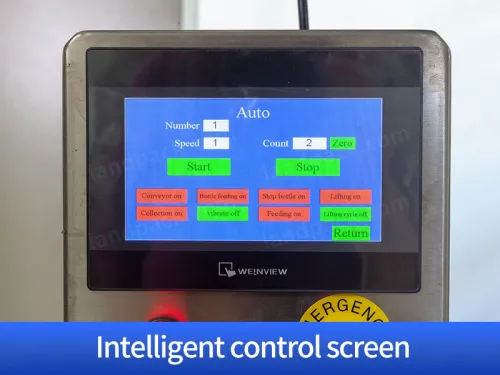

Control element	10.4-inch LCD aiming screen
