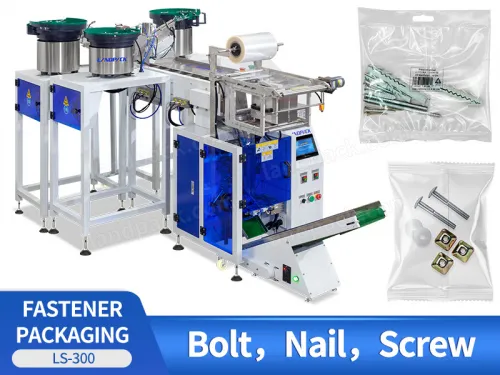

Automatic Screw Fastener Hardware Fittings Counting and Bagging Packing Machine For Fasteners

Application:

It can pack the same items or mixed items in the packs by quantity,which is suitable for fastener, furniture spare parts, plastic pipe fittings, auto parts, clothes parts.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can pack the same items or mixed items in the packs by quantity,which is suitable for fastener, furniture spare parts, plastic pipe fittings, auto parts, clothes parts.

Automatic Screw Fastener Hardware Fittings Counting and Bagging Packing Machine For Fasteners

FEATURES

1. high quality packaging and technology to ensure productloss ---- to ensure accurate packaging ;

2. perfect appearance ----unique, advanced, mature technology;

3. let the customer's products to be packed within a short period of time----fast, accurate, sanitary, perfect packaging ;

4. Design of system to meet your specific requirements.

Automatic Screw Fastener Hardware Fittings Counting and Bagging Packing Machine For Fasteners

WORKFLOW

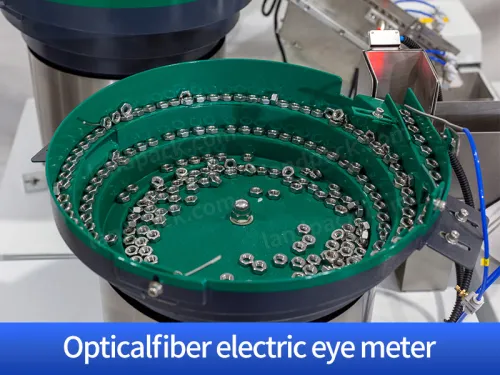

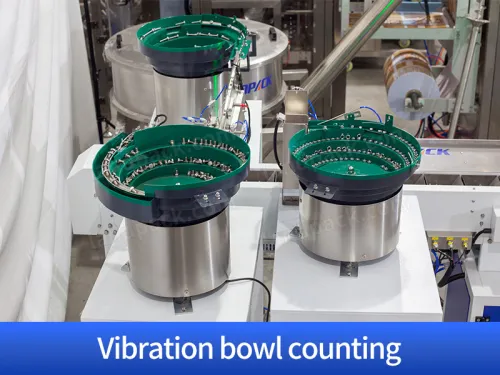

Automatic Vibration Disck Counting

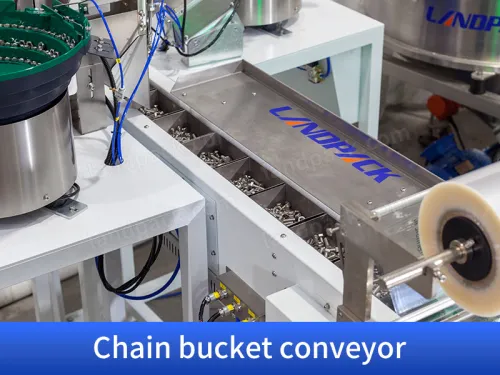

Belt Conveyor Feeding

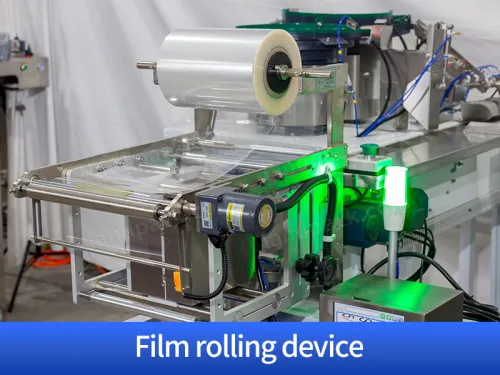

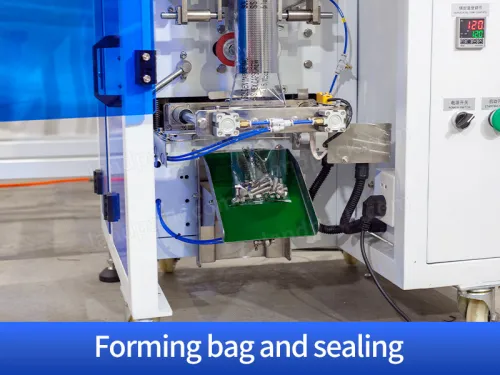

Automatic Film Roll Making And Packing

Automatic Weighing Checker

PARAMETER

Fastener Packing Machine
Model	LD-420	LD-520	LD-720	LD-900
Film width	Max.420mm	Max.520mm	Max.720mm	Max.900mm
Bag length	80-300mm	80-350mm	100-500mm	100-600mm
Bag width	60-200mm	100-250mm	180-350mm	260-430mm
Film roll diameter	Max.320mm	Max.320mm	Max.320mm	400mm
Packaging rate	5-60 bags/min	5-60 bags/min	5-55 bags/min	5-20 bags/min
Range of measurement	150-1500ml	2000ml	4000ml	1-25L
Film thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Power	220V, 50/60Hz, 2kw	220V, 50/60Hz, 3kw	220V, 50/60Hz, 3kw	220V, 50/60Hz, 4.5kw
Machine size(LWH)	121710151343mm	148810801490mm	178013502050mm	230516852725mm
Machine quality	About 650kg	About 680kg	About 750kg
