High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw Fastener

Application:

Applications and is used in boxing and packaging of fasteners, hardware fittings, auto parts and other industries. such as screw, nail, bolt, pin, button etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Applications and is used in boxing and packaging of fasteners, hardware fittings, auto parts and other industries. such as screw, nail, bolt, pin, button etc.

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw Fastener

FEATURES

1. Widely applicable range, suitable for a wide range of fasteners, hardware, auto parts.

2. 7 inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10. All parts in contact with materials are made of special materials, so the machine will not be scratched by the materials and is durable.

11. The transport conveyor for the cartons. It is adjustable conveyor and suits for differet cartons size. The workers could adjust the both sides of the conveyor.

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw Fastener

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw Fastener

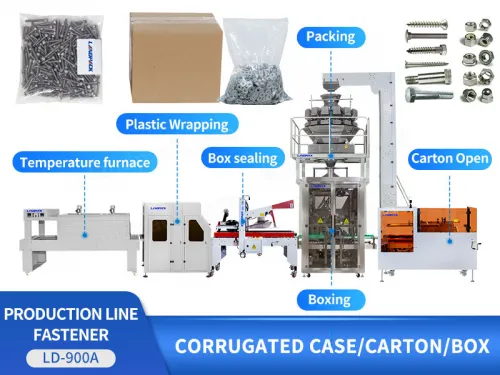

WORKFLOW

01

Fastener Bag filling

02

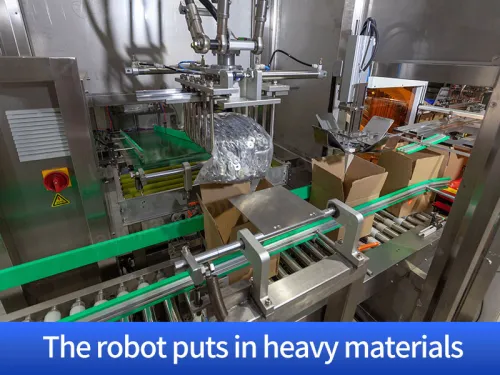

Bag filling into box

03

Box sealing

04

Shrink Labeling

PARAMETER

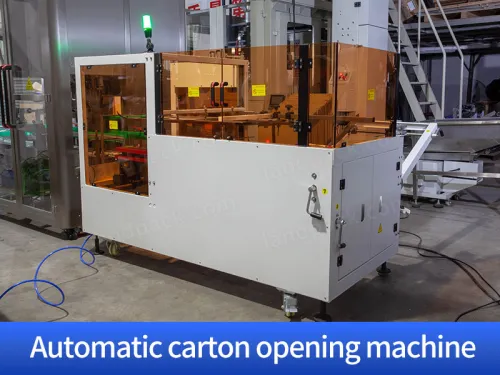

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw FastenerSpeed12 ctns/min
Carton Max SizeL450×W400×H400mm
Carton Min SizeL250×W150×H100mm
Power Supply110/220V 50/60Hz
Power220W
Adhesive Tape Width48/60/75mm
Carton Storage Quantity80-100pcs (800-1000mm)
Air Consumption420NL/min
Air Compressing6kg/cm³ /0.6Mpa
Table Height580+30 mm
Machine dimensionL1800×W1800×H1250mm
Machine Weight350Kg

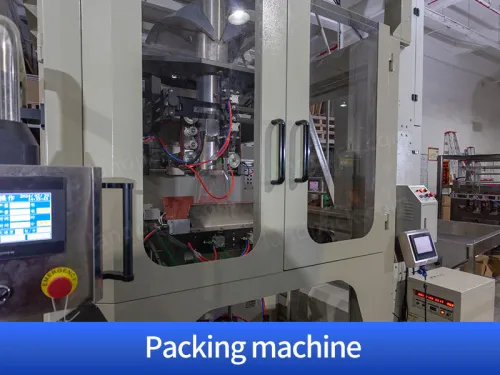

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw FastenerMachine ModelLD-620ASLD-720ASLD-900AS
Pouch sizeW: 130-300mm;L: 100-500mmW: 130-350mm;L: 100-600mmW: 130-380mm;L: 100-900mm
Making-bag volume3000ml5000ml7000ml
Filling range200g-2kg500g-3kg1kg-5kg
Power Supply220V,50/60Hz,3KW220V,50/60Hz,3KW220V,50/60Hz,3KW
Packing speed10-90 bag/min According to the product character
Power1.5-4.5KW AC220V/380V±10% 3-PHASE 50HZ/60HZ
Film materialBOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/AL/PE,PET/PET/ETC.
High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw FastenerAccuracy weighing and filling
ModelLF-ZP-10
Output20-30 bottles/min
Bottle diameterΦ30mm-Φ135mm (customizable)
Bottle height40mm-200mm (customizable)
Power750W,220V,50Hz
Weight200kg

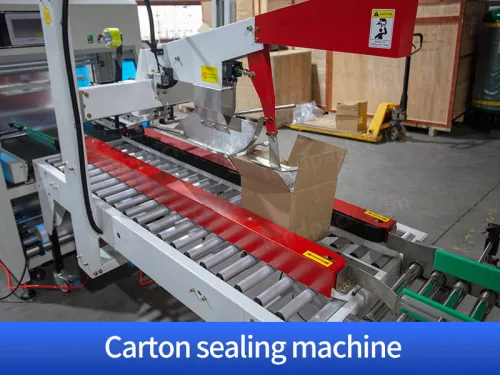

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw FastenerPacking Speed0-20m/min
Max Packing SizeL500×W500×H500mm
Min Packing SizeL200×W150×H150mm
Applicable tapeW48mm/60mm/75mm
Power220/380V, 50/60Hz 200W
Machine sizeL1700×W880×H1450mm (without front and rear roller frame)
Machine weight260 kg

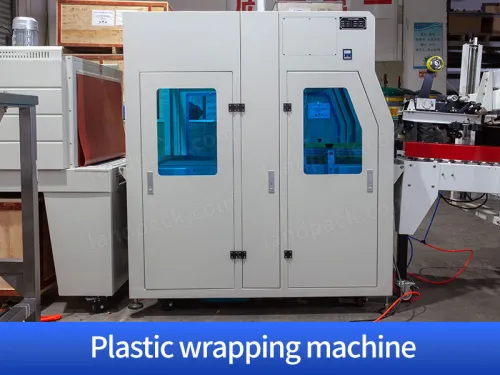

High Speed Automatic Opening Boxing Packing System For Hardware Fittings Screw FastenerShrink Wrapping Machine
 Sealing Type Continuous Sealing
 Installed Power 220V/ 60HZ
 Packing Capacity Max. 40 Packs per Minute (Depends on Product Size)
 Sealing Height/ Packing Width 220MM/ 500MM
 Air Pressure 0.5MPA (5 BAR)
 Sealing Knife Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
 Sealing Machine Dimensions 2600 X 1450 X 1680 MM

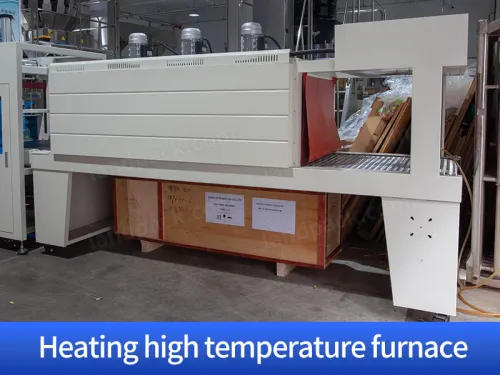

 Shrink Tunnel
 Oven Size 1500MM (L), Entrance 600(W) X 300(H) MM
 Conveyor Chains with Rotating Silicon Coated Rods
 Tunnel Machine Dimensions 1800 X 980 X 1560 MM
 Weight (Net/ Gross) 1000KGS/ 1100KGS (For Reference Only, Including Sealer and Tunnel)
