Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling Line

Application:

Fully automatic liquid filling capping and labeling line, it is recommended for a wide variety of products including liquid, such as peanut butter, condensed milk, chocolate sauce, ketchup, syrup, juice, shampoo, honey, edible oil, jam, detergent, body lotion, hand sanitize, shower gel, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Fully automatic liquid filling capping and labeling line, it is recommended for a wide variety of products including liquid, such as peanut butter, condensed milk, chocolate sauce, ketchup, syrup, juice, shampoo, honey, edible oil, jam, detergent, body lotion, hand sanitize, shower gel, etc.

Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling Line

FEATURES

1.Complete set, the whole line is fully automatic, saving labor;

2.According to the needs of different configurations of automatic equipment assembly;

3.Piston-type measuring cylinder, servo drive, suitable for large particles of thick sauce filling;

4.All the machine structures are selected and designed according to the food hygiene standards;

5.The inner wall of the container in contact with the material is polished;

6.The structures that are often disassembled and washed are all connected by easily disassembled parts, which is convenient for cleaning;

7.The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as juice, edible oil, sauce, daily necessities, medicine, etc;

Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling Line

Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling Line

WORKFLOW

01

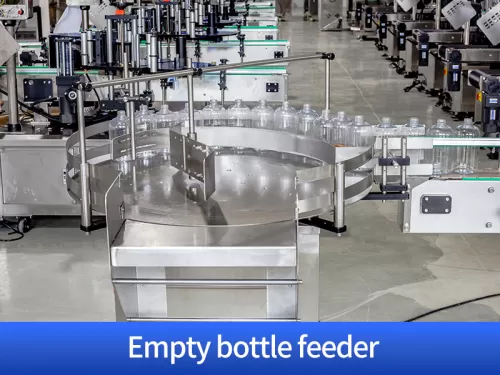

Automatic feeding empty bottle

02

Automatic Filling

03

Automatic High Speed Capping

04

Automatic Lableing

PARAMETER

Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling LineAutomatic Bottle feeder
Machine ModelLD-LFL800
Power Supply220V/110V, 50-60Hz, 200W
Turntable Diameter800mm
Suitable Bottle Diameter20-100mm
Suitable Bottle Height30-320mm
Working Speed40-60bottles/min(depending on bottle size)
Package Size1230*1010*1260mm
Gross Weight141kg


Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling LineBottle Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Production Speed<15-25 bottles/min <20-35 bottles/min <30-40 bottles/min
Measurement Accuracy±1%±1%±1%
Power2KW2.5KW3.5KW
Voltage220V, 50Hz220V, 50Hz220V, 50Hz
Air consumption0.6-8Mpa0.6-8Mpa0.6-8Mpa
Weight600kg650kg800kg
DimensionL4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)


Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling LineHigh speed capping machine
ModelLFX-GS-150(Eight wheel capping)LFX-GS-250(Six wheel capping)
Capacity40-100Bottles/min30-80Bottles/min
Bottle cap diameterΦ18mm-Φ80mm(Could be customized)Φ18mm-Φ80mm(Could be customized)
Bottle diameterΦ35mm-Φ140mm(Could be customized)Φ35mm-Φ140mm(Could be customized)
Bottle sealing height38mm-300mm(Could be customized)38mm-300mm(Could be customized)
Power2KW1.5KW
Voltage220V、50HZ220V、50HZ
Air pressure0.6-0.8Mpa0.5-0.7Mpa
Weight350kg300kg
DimensionsH3120*W1544*L2122H3100*W1244*L2122


Fully Automatic 4 Heads Liquid Bottle Pistion Pump Filling Capping And Labeling LineAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm20mm~300mm
Label width/height20mm~200mm(can be customized)20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)30-150mm(can be customized)
Roll Label outer diameter300mm300mm
Roll Label inner diameter76mm76mm
Accuracy±1mm±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)Adhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa0.4-0.6Mpa
Voltage220V can be customized 4KW220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm
