Application:
This granule liquid mixing filling machine line is suitable for filling granular and liquid materials such as fruit, marinade pickled products, pickles, sweet potato, mango pulp, nuts, corn flakes, peanuts, melon seeds, pepper, pepper, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
This granule liquid mixing filling machine line is suitable for filling granular and liquid materials such as fruit, marinade pickled products, pickles, sweet potato, mango pulp, nuts, corn flakes, peanuts, melon seeds, pepper, pepper, etc..
FEATURES
1. Stable operation, low noise, convenient maintenance, fully comply with GMP certification, widely used in medicine, food and other industries.
2. UV sterilization, the entire line meets food grade requirements.
3. Stable and high speed running.
4. Simultaneously filling fruit pulp and liquid, achieving mixed filling, saving labor, and improving production efficiency.
5. Can make plans according to the different requirements of customers to meet customer needs.

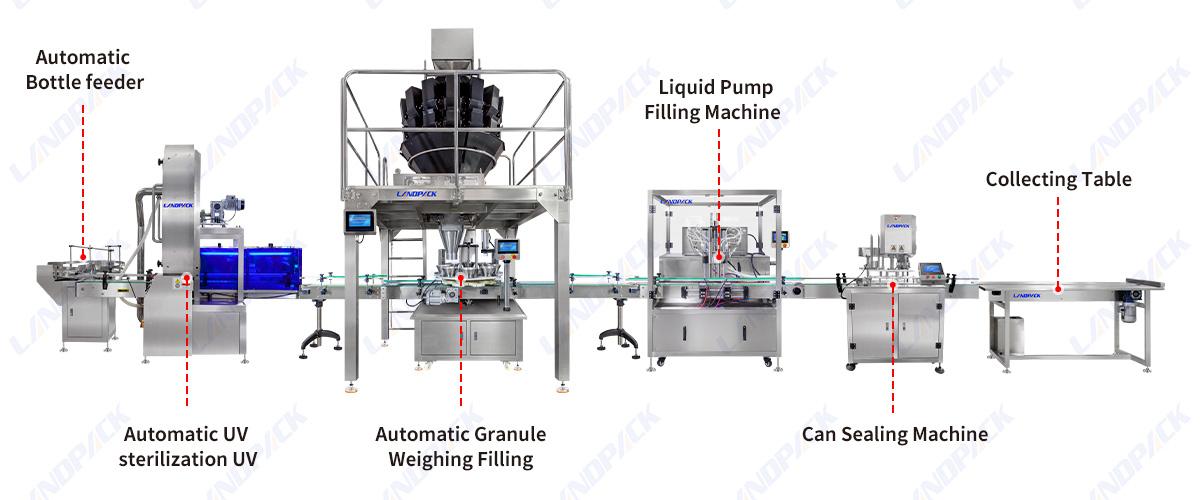

WORKFLOW
1. Bottle Sorting Machine.
2. UV sterilization.
3. Fruit Feeding.
4. Multi-heads weigher for accuracy weighing.
5. Fruit Filling.
6. Juice Filling.
7. Automatic cans sealing.
8. Finished Product Output.
PARAMETER
Automatic Bottle feeder | ||||
Machine Model | LD-LP800N | |||
Power Supply | 220V/110V, 50-60Hz, 200W | |||
Turntable Diameter | 800mm | |||
Suitable Bottle Diameter | 20-100mm | |||
Suitable Bottle Height | 30-320mm | |||
Working Speed | 40-60bottles/min(depending on bottle size) | |||
Package Size | 1230*1010*1260mm | |||
Gross Weight | 141kg |
Automatic UV sterilization UV | ||||
Voltage | 220V/50Hz(customized) | |||
Power | 2500W | |||
Air pressure | 0.3-0.5mpa | |||
Speed | 10-50 BPM (can be customized) | |||
Bottle diameter | 76-140mm | |||
Bottle high | 80-200mm | |||
UV light | 7 | |||
Outline dimension | 2400*1300*2200MM (L×W×H) | |||
Net weight | 350KG |
Multi-heads weigher | ||||||||
Model | LD-14 | LD-16 | LD-12 | LD-10 | LD-8 | |||
Number of weighing heads | 14 | 16 | 12 | 10 | 8 | |||
Per weighing range | 10-2000g | 10-1000G | ||||||
Weighing Accuracy | ±0.3-1.5g | ±0.3-1.5g | ±0.3-1.5g | ±0.3-1.5g | ±0.3-1.5g | |||
Weighing Speed | 120bag/min | 180bag/min | 100bag/min | 70bag/min | 60bag/min | |||
Hopper capacity | 1300ml | 1300ml | 1700ml | 1300ml | 1300ml | |||
Hopper type | Double row unrecorded bucket | Double row unrecorded bucket | single row bucket | Double row unrecorded bucket | Double row unrecorded bucket | |||
Product default mode | 99 modes | |||||||
Control element | 10.4-inch LCD aiming screen |
Accuracy Weighing And Filling | ||||
Model | LF-ZP-10 | |||
Output | 20-30 bottles/min | |||
Bottle diameter | Φ30mm-Φ135mm (customizable) | |||
Bottle height | 40mm-200mm (customizable) | |||
Power | 750W,220V,50Hz | |||
Weight | 200kg |
Liquid Pump Filling Machine | ||||
Model | ZS-YTZL4A | |||
Filling head | 4 Head | |||
Air pressure | 0.5-0.8MPa | |||
Liquid level accuracy | ±1mm | |||
Viscosity range | ≤20Cps (static viscosity) | |||
Working Speed | 20-40 Bottles/Minute | |||
Machine size | About 1500*1150*1530mm | |||
Machine weight | About 278kg | |||
Package size | About 1660*1310*1670mm |
Can Sealing Machine | ||||
Number of sealed cans | 1 | |||
Sealing speed | 15-24 bottles/minute | |||
Can sealing height | 50-200mm | |||
Applicable bottle diameter | 50-126mm | |||
Power | 0.55KW | |||
Weight | 130KG | |||
Size | 400*600*1450mm | |||
Voltage | 220V, 50/60Hz |
