Application:
This filling line is suitable for filling viscous, inviscid, and corrosive liquid. It's widely applied in plant oil, ghee, chemical liquid, and the daily chemical industry. It adopts linear type filling, electromechanical & instrumental integration controlling.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
This filling line is suitable for filling viscous, inviscid, and corrosive liquid. It's widely applied in plant oil, ghee, chemical liquid, and the daily chemical industry. It adopts linear type filling, electromechanical & instrumental integration controlling.
FEATURES
1. System control, data can be adjusted and stored, simple operation;
2. Use drip proof stainless steel filling head and photoelectric induction;
3. The connecting shaft connects the motor shaft and the filling support shaft. Stable and easy to install.;
4. The structures that are often disassembled and washed are all connected by easily disassembled parts, which is convenient for cleaning;
5. The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as juice, edible oil, sauce, daily necessities, medicine, etc;
6. Complete set, the whole line is fully automatic, saving labor.

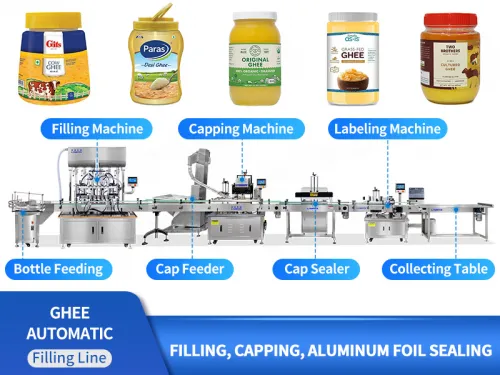

WORKFLOW
Automatic Bottle Feeder
Automatic 6 Heads Pistons Filling
Automatic Bottle Capping
Automatic Aluminum Foil Sealing
Automatic Bottle Labeling
Inkjet Printer
PARAMETER
Automatic Bottle feeder | ||||
Machine Model | LD-LP800N | |||
Power Supply | 220V/110V, 50-60Hz, 200W | |||
Turntable Diameter | 800mm | |||
Suitable Bottle Diameter | 20-100mm | |||
Suitable Bottle Height | 30-320mm | |||
Working Speed | 40-60bottles/min(depending on bottle size) | |||
Package Size | 1230*1010*1260mm | |||
Gross Weight | 141kg |
Bottle Liquid filling machine | |||||||
Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 | |||
Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | |||
Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min | |||
Measurement Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Power | 2KW | 2.5KW | 3.5KW | 5KW | |||
Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | |||
Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | |||
Weight | 600kg | 650kg | 800kg | 800kg | |||
Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |
Autoamtic capping machine | ||||||
Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |||
Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min | |||
Bottle cap diameter | Φ22mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | |||
Bottle diameter | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | |||
Bottle sealing height | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | |||
Power | 1.5KW | 2KW | 1.5KW | |||
Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ | |||
Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa | |||
weight | 250kg | 350kg | 300kg | |||
Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |
Aluminum foil sealing machine | |||||
Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |||
Applicable bottle diameter | Φ10-200mm(Could be customized) | Φ10-200mm(Could be customized) | |||
Applicable bottle height | H:40-300mm(Could be customized) | H:40-300mm(Could be customized) | |||
Speed | 0-30bottle/min | 0-10bottle/min | |||
Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals | |||
Voltage | 220V,50HZ | 220V,50HZ | |||
Power | 1500W | 1200W | |||
Dimension | 1500*800*1750mm | 1200*600*1550mm |
Automatic Labeling Machine | |||||
Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | |||
Label length | 20mm~300mm | 20mm~300mm | |||
Label width/height | 20mm~200mm(can be customized) | 20mm~200mm(can be customized) | |||
Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) | |||
Roll Label outer diameter | 300mm | 300mm | |||
Roll Label inner diameter | 76mm | 76mm | |||
Accuracy | ±1mm | ±1mm | |||
Label speed | 40-100pcs/min | 60-120pcs/min | |||
Conveyor speed | 5~25m/min | 15~20m/min | |||
Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) | |||
Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |||
Voltage | 220V can be customized 4KW | 220V can be customized 4KW | |||
Weight | 350KG | 450KG | |||
Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm |
