Automatic 4 Heads Grain Granule Particle Bottles Weighing Filling Machine With Capping Machine

Application:
This filling line machine is suitable for the filling of granular materials in food, daily necessities and other industries, such as tea, dried fruit, candy, chocolate beans, nuts, peanuts, oatmeal, beans, puffed food, fish feed, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This filling line machine is suitable for the filling of granular materials in food, daily necessities and other industries, such as tea, dried fruit, candy, chocolate beans, nuts, peanuts, oatmeal, beans, puffed food, fish feed, etc.

Automatic 4 Heads Grain Granule Particle Bottles Weighing Filling Machine With Capping Machine

FEATURES

1. The appearance of product is made of stainless steel material,its external shape is simple and beautiful,in line with the design requirement of lots of the standard production workshop.

2. Various accessories are processed precisely,production technology and industry,etc,have obtained the sediment from customer experience for a long time of the company and continuous improvement,its main parts adopts the unique design,high strength,low noise,good sealing performance.

3. The design of automatic production line is extremely east to be make up the operation line combined with the filling system,weighing filling system or labeling system.

4. High weighing accuracy, custom-made labeling machine to meet different needs, truely creat value for custoemrs.

Automatic 4 Heads Grain Granule Particle Bottles Weighing Filling Machine With Capping Machine

WORKFLOW

Empty Bottle Feeding

4 Heads Linear Granule Filling

Capping

Labeling

Finished Product Output

PARAMETER

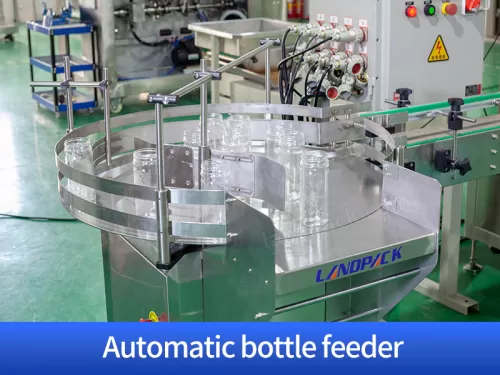

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

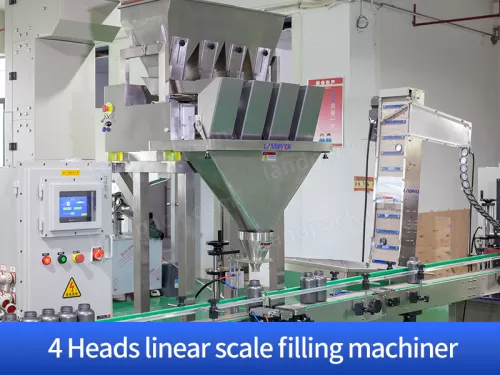

4 heads linear scale filling machine
Model	LD-AX4-1	LD-AX4-2	LD-AX4-3
Weight range	5-300g	50-2000g	50-3000g
Accuracy	0.5-1g
Max.speed	70wpm
Hopper volume	500ml
Control panel	20
Max mixing products	4		2
Power	1200W
Voltage	220V/50/60HZ/6A
Packing Dimension	10281078825		121511561025

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
