Automatic Granule Doy Pouch Multihead Weigher Packing Premade Bag Doypack Multi-Function Packaging Machines

Application:

It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins,plum, cereals and other leisure foods.


Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins,plum, cereals and other leisure foods.

Automatic Granule Doy Pouch Multihead Weigher Packing Premade Bag Doypack Multi-Function Packaging Machines

FEATURES

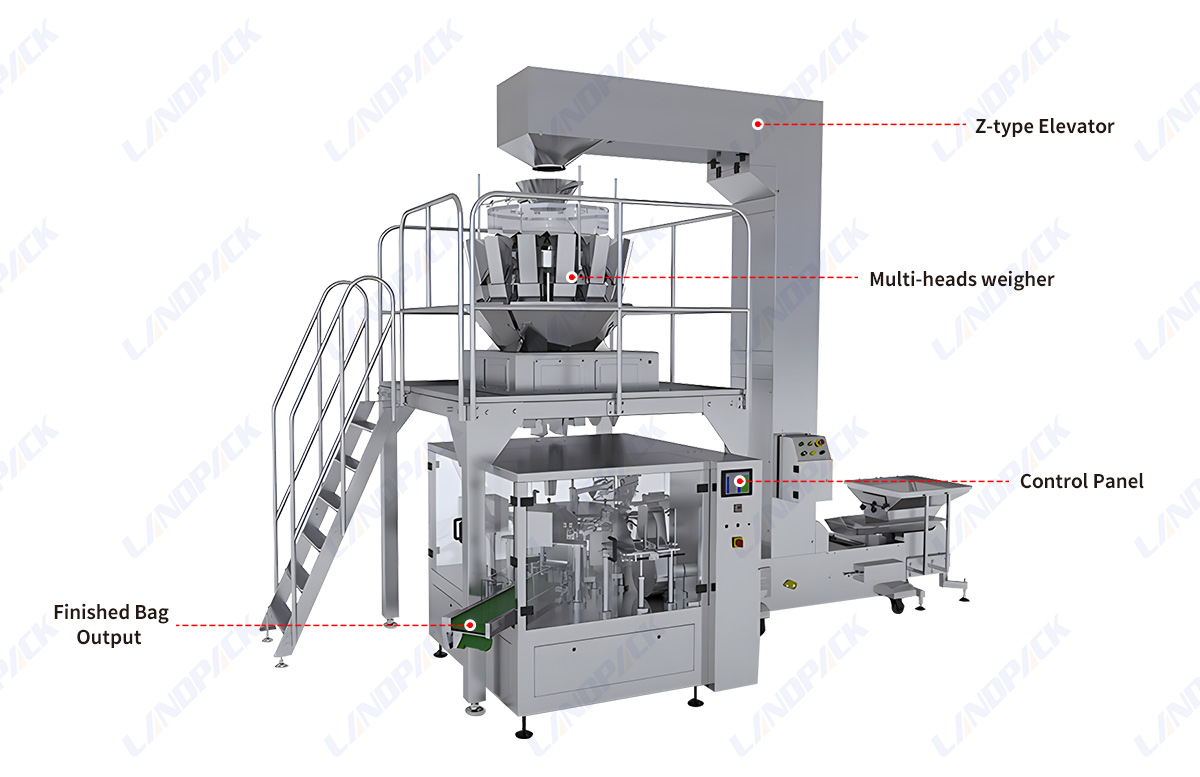

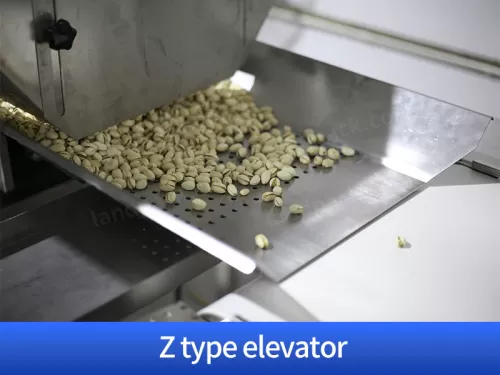

1.Z Shape bucket elevator / incline conveyor :Raise material to multi weigher which controls the start and stop of the hoister.

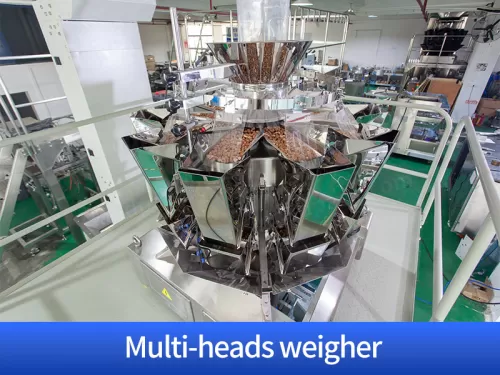

2.Multihead weigher:10/14/20 heads weighing machine for weighing target weight.

3.Platform:Support the multi weigher.

4. Rotary packing machine:It is for packing pre-made pouch,including get bag,print date,open zipper bag,filling from multihead weigher,option position,hot sealing and cold sealing.

Automatic Granule Doy Pouch Multihead Weigher Packing Premade Bag Doypack Multi-Function Packaging Machines


WORKFLOW

01

Z-elevator deliver

02

Multi-Head Weigher Measure Weight

03

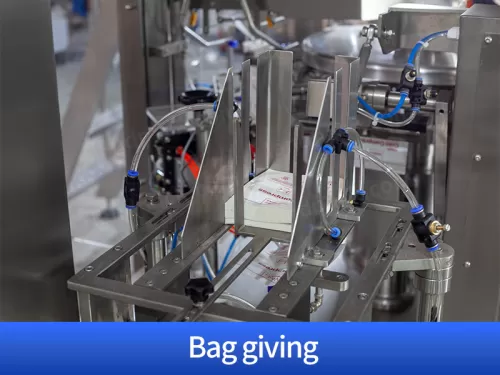

Take the bags

04

Code printing

05

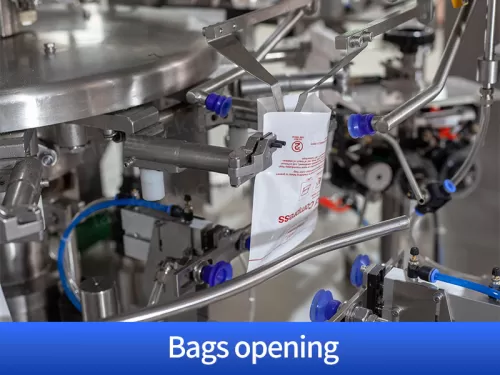

Open zipper ang bag

06

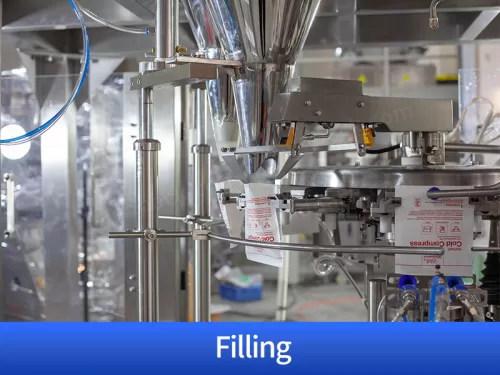

Filling

07

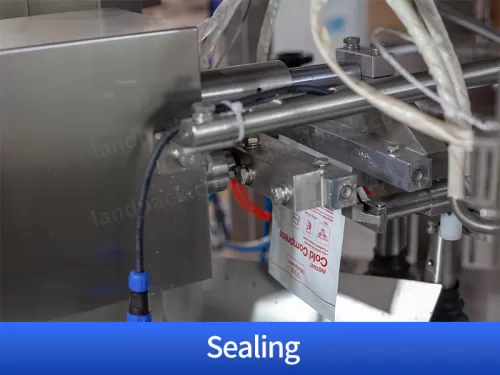

Sealing

08

Finished Product Conveyor

PARAMETER

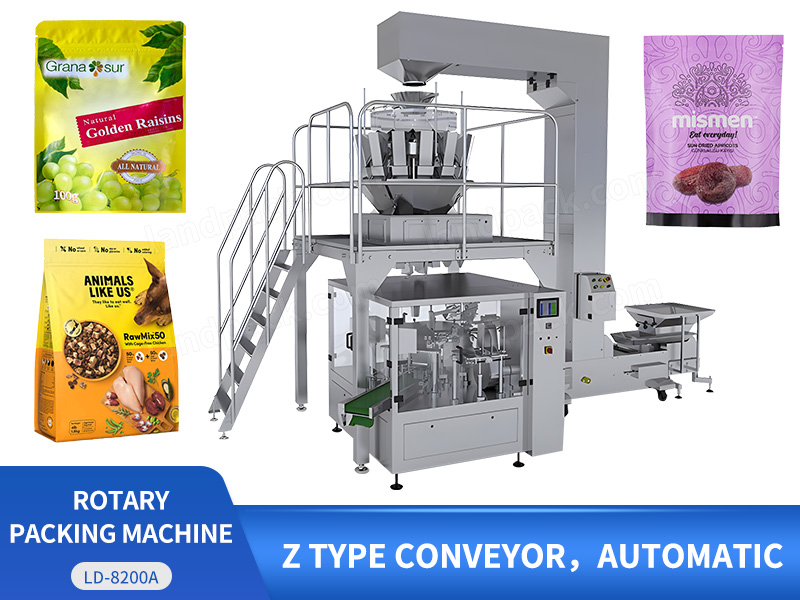

Automatic Granule Doy Pouch Multihead Weigher Packing Premade Bag Doypack Multi-Function Packaging MachinesAutomatic Granule Rotary Doypack Packing Machine
ModelLD-8200/LD-8250
Packing materialall type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
sizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
