Automatic Granule Food Plastic Bottle Jar Filling Capping Labeling Machine Lines

Application:
1. This filling line is designed for packaging various granular products, such as pet food, rice, nuts, cornflakes, peanuts, chips, snacks, popcorn, dry fruits, candy, melon seeds, pepper, oatmeal, etc.

2. Suitable for all kinds of containers on the market, such as plastic cans, bottles, jars, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

1. This filling line is designed for packaging various granular products, such as pet food, rice, nuts, cornflakes, peanuts, chips, snacks, popcorn, dry fruits, candy, melon seeds, pepper, oatmeal, etc.

2. Suitable for all kinds of containers on the market, such as plastic cans, bottles, jars, etc.

Automatic Granule Food Plastic Bottle Jar Filling Capping Labeling Machine Lines

FEATURES

1. Granule filling line, the machine is fully automatic, automatic filling, automatic sealing, automatic capping, automatic labeling.

2. It adopts deceleration lifting motor, automatic feeding control system when material is missing, and the bucket type lifting mechanism is completely closed, non-polluting, no leakage, feeding, weighing, filling, and full automation control.

3. The filling volume is easy to adjust, with no bottle, no filling, no need to replace parts, it can be applied to different bottles, easy to adjust, strong adaptability, one machine with multiple functions.

4. The entire line is simple installation and easy maintain, save labor cost.

5. Multi-heads weigher to ensure high accuracy and speed.

Automatic Granule Food Plastic Bottle Jar Filling Capping Labeling Machine Lines

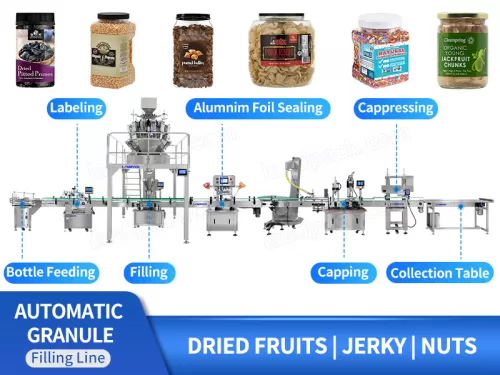

WORKFLOW

Empty Bottle Feeding

Labeling

Granule Filling

Sealing

Capping

Cap pressing

Product Output

PARAMETER

	Bottle conveyor feeding device
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm（Could be customized）
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60bottles/min(（Could be customized）)
	Package Size	123010101260mm（Could be customized）
	Gross Weight	141kg

Z Type Elevator
Model	LDBZ-2L	LDBZ-5L
Conveying capacity	0-6m³/h	0-12m³/h
Operating speed	0.18m/s	0.18m/s
Single Hopper capacity	2L	5L

Round Bottle Labeling machine auto labeling
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

	Accuracy weighing and filling
	Model	LF-ZP-008
	Output	20-30 bottles/min
	Bottle diameter	Φ30mm-Φ135mm (customizable)
	Bottle height	40mm-200mm (customizable)
	Power	750W,220V,50Hz
	Weight	200kg

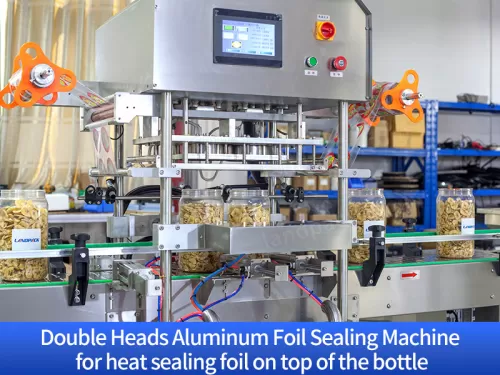

Double Heads Aluminum Foil Sealing Machinefor heat sealing foil on top of the bottle
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg
