Automatic Pet Food Granule Tin Cans Bottle Filling Machine Production Line

Application:
Applicable for filling of all kind of granular, block and other materials into the tin can box bottle and other container. such as pet food, melon seeds, almonds, pistachios, pine nuts, candy, jelly, bean food, frozen food, pet food, all kinds of snack food, hardware and daily chemical materials, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Applicable for filling of all kind of granular, block and other materials into the tin can box bottle and other container. such as pet food, melon seeds, almonds, pistachios, pine nuts, candy, jelly, bean food, frozen food, pet food, all kinds of snack food, hardware and daily chemical materials, etc.

Automatic Pet Food Granule Tin Cans Bottle Filling Machine Production Line

FEATURES

1. PLC intelligent programming and touch screen manual operation control system;

2. 304# stainless steel structure, horizontal open transparent material box, can be opened and cleaned without tools, easy to clean;

3. The configuration can be selected according to the actual situation: Teflon/pattern plate/hopper/separator / 10-inch touch screen

4. Scope of use: Suitable for weighing all kinds of granular, block and other materials. Such as melon seeds, almonds, pistachios, pine nuts, candy, jelly, bean food, frozen food, pet food, all kinds of snack food, hardware and daily chemical materials, etc

5. Change the height of the jar without replacing the accessories. Use the hand screw to design the whole filling head to adjust the whole up and down, and the adjustment time is about 10-30 minutes.

Description Of Main Packaging Process:

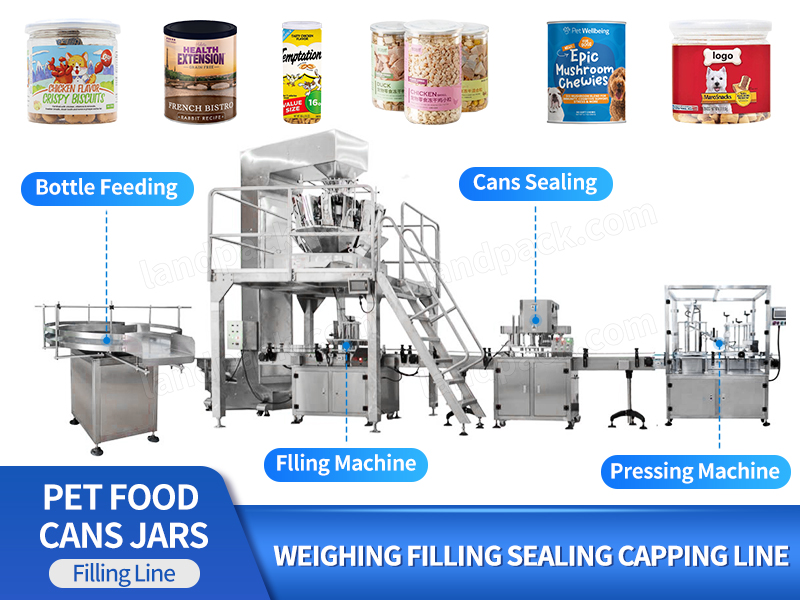

①Bottle Unscrambler → ② Automatic Granule Weighting And Filling Machine → ③Automatic Cans Seaming → ④ Automatic Cap Pressing Machine Automatic Pet Food Granule Tin Cans Bottle Filling Machine Production Line

Automatic Pet Food Granule Tin Cans Bottle Filling Machine Production Line

PARAMETER

			Bottle conveyor feeding device
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(（Could be customized）)
			Package Size	123010101260mm（Could be customized）
			Gross Weight	141kg

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

Multi- heads granules weighing double heads rotary filling machine
Model	LD-GZJ200M-R(double turntable filling)	LD-GZJ100M-R(Single turntable filling)
Material	304# Stainless steel	304# Stainless steel
Filling diameter	φ40 -φ130mm	φ40 -φ130mm
Applicable height	50-200mm (customized according to Bottle size)	50-200mm (customized according to Bottle size)
Filling speed	30-50 cans per minute	10-20 cans per minute
Air source	0.6-0.8Mpa	0.3-0.5Mpa
Voltage	220V,50HZ	220V,50HZ
Power	2.5KW	1.5KW
N.W./G.W.	200/320KGS	100/220KGS
Size	200010001400mm	20005001400

			Can Sealing Machine
			Number of sealed cans	1
			Sealing speed	15-24 bottles/minute
			Can sealing height	50-200mm
			Applicable bottle diameter	50-126mm
			Power	0.55KW
			Weight	130KG
			Size	4006001450mm
			Voltage	220V, 50/60Hz

			Automatic plastic lids pressing machine
			Seal Can diameter	φ40~φ130mm(can be customized)
			Bottle's height	60~300mm(can be customized)
			Cap's height	5~15mm
			Speed	30-50 Cans/minute (can be customized)
			Storage Can cover	about 100pcs
			Machine Size	1900x800x1700
			Power	220V/380V, 0.68KW
			Air Pressure	0.6MPa

Autoamtic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
