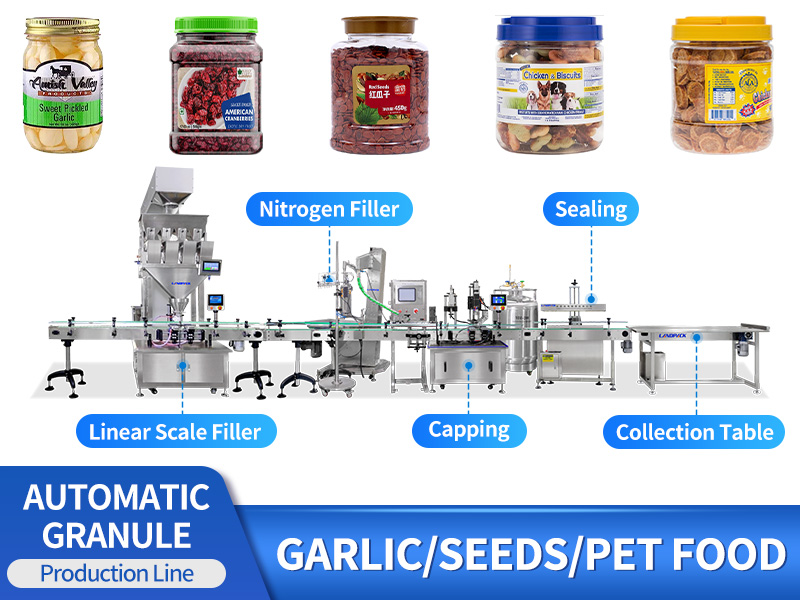

Fully Automatic Granule Filling Line With Capping And Labeling Machine

Application:
It is suitable for filling all kinds of granule material, sheet material, strip material, and abnormity material, such as nuts, candy, melon seeds, chips, peanuts, nutlets, preserved fruit, jelly, biscuit, confect, camphor ball, currant, almond, chocolate, filbert, corn, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for filling all kinds of granule material, sheet material, strip material, and abnormity material, such as nuts, candy, melon seeds, chips, peanuts, nutlets, preserved fruit, jelly, biscuit, confect, camphor ball, currant, almond, chocolate, filbert, corn, etc.

Fully Automatic Granule Filling Line With Capping And Labeling Machine

FEATURES

1. Customized bottle feeder to auto feeding the bottles, auto delay feeding advoid the bottles stuck and make the bottles feeding one by one on the conveyor for higher effiency, no bottles no filling for high automatical, intelligent production and save labor.

2. Customized auto feeding the caps to save labor and intelligent production.

3. The filling line has CE standard with multi safety warning function, contact product material parts are food grade with easy cleaning design, the filling line is safety and reliable for the production.

4. You can customize the machine to meet your different need. The machine can be designed to different quantity of weighing.

Fully Automatic Granule Filling Line With Capping And Labeling Machine

PARAMETER

4 heads linear scale filling machine
Model	LD-AX4-1	LD-AX4-2	LD-AX4-3
Weight range	5-300g	50-2000g	50-3000g
Accuracy	0.5-1g
Max.speed	70wpm
Hopper volume	500ml
Control panel	20
Max mixing products	4		2
Power	1200W
Voltage	220V/50/60HZ/6A
Packing Dimension	10281078825		121511561025

Liquid nitrogen filling machine
Model	LDBZ-SSW(Common type)	LDBZ-SSW(Luxury type)
Liquid nitrogen-filling Capacity Nlm³/h	3	5
Power	500KW	500KW
Purity%	≥99	≥99.5
Speed	10-20 bottles/minute(relate to the product size)	30-40 bottles/minute(relate to the product size)
Bottle hight	50-200mm
Dimension	570570950	6005801200

	Autoamtic cap feeder
	Model	LD-400
	Capacity	1000-18000(can be customized)
	Cap diameter	according to the samples
	Voltage	380V
	Weight	100KG

Autoamtic servo capping machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

Induction Sealing Mahcine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

	Collecting Table
	Capacity	30-50Bottle（Could be customized）
	Material	Stainless Steel 304
	Dimension	3002000100mm（Could be customized）
	Weight	200KG
