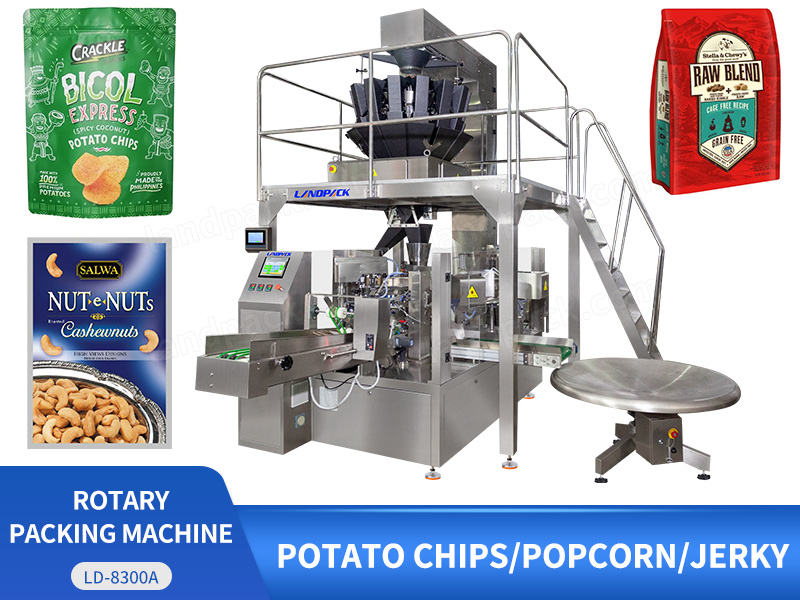

Multi-function Granule Rotary Packing Machine Premade Stand Up Pouch Packing Machine

Application:

This machine is suitable for automatic packaging of granular powder particles in food, pharmaceutical, chemical, pesticide and other products. Such as: peanuts, potato chips, beef jerky, nuts, cashew, popcorn, oatmeal, desiccant, washing powder, coffee, sugar and various sugar-free loose granules and so on.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multi-function Granule Rotary Packing Machine Premade Stand Up Pouch Packing Machine

FEATURES

1. wide applications: various state and nature of solid(granule);

2. A wide range of pouches: all kinds of pre-made pouches;

3. Easy to operate: PLC controller, HMI system makes easy operation;

4. Easy to adjust: change different pouches within 10 minutes;

5. High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

6. Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

7. The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;

8. Imported engineer plastic bearings, no need to oil, no contamination;

9. Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

10. Pre-made bag packing: perfect sealing quality, upgrade the finished product.

11. The surface of weigher is sprayed with Teflon to avoid sticking.

Multi-function Granule Rotary Packing Machine Premade Stand Up Pouch Packing Machine

WORKFLOW

Z-elevator deliver

Multi-Head Weigher Measure Weight

Take the bags

Code printing

Open zipper ang bag

Filling

Sealing

Finished Product Conveyor

PARAMETER

	Automatic Granule Rotary Doypack Packing Machine
	Model	LD-8200/LD-8250
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
