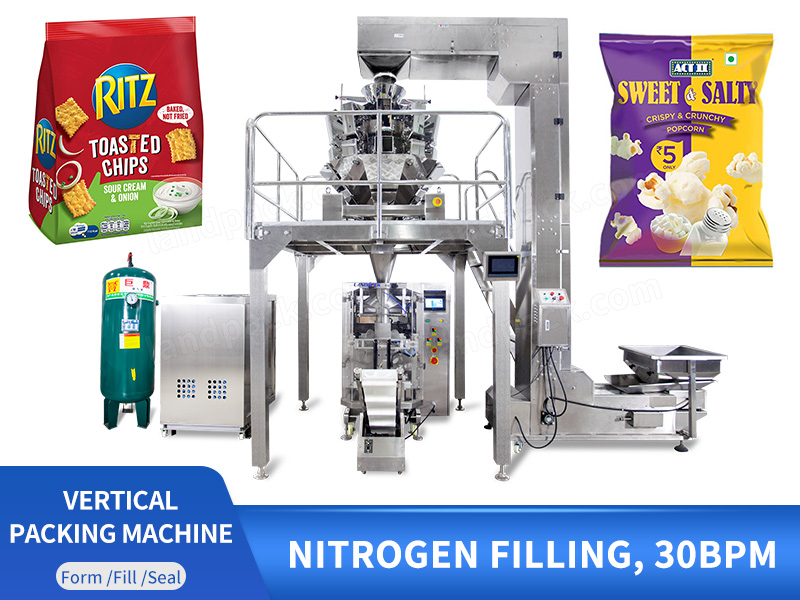

Multihead Weigher Automatic Nitrogen Filling Granule Vertical Fill Form Seal FFS Pouch Packing Machine

Application:

This machine is suitable for candy, hard nut, raisin, peanut, melon seeds, chips, chocolate,biscuit and other big grains or irregular shape products auto weighing packing and could connect with nitrogen filling device to contain granule material fresh.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multihead Weigher Automatic Nitrogen Filling Granule Vertical Fill Form Seal FFS Pouch Packing Machine

FEATURES

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

Multihead Weigher Automatic Nitrogen Filling Granule Vertical Fill Form Seal FFS Pouch Packing Machine

WORKFLOW

Material Feeding

Multi Heads Weigher Weighing

Bag Forming

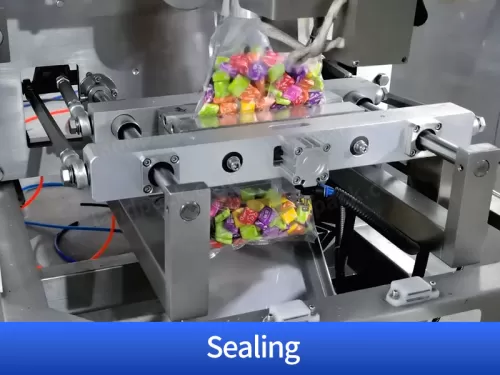

Bag Sealing

Finished Product Output

PARAMETER

Granule Packing Machine
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
