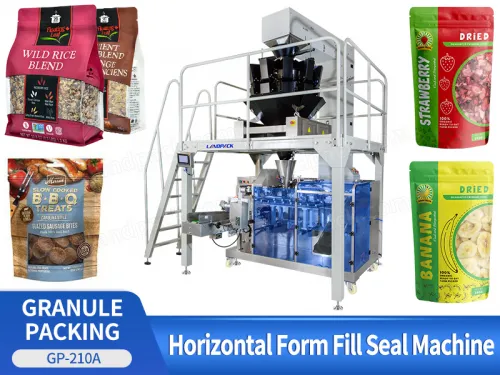

Automatic Horizontal Pre-Made Pouch Doypack Granule Packing Machine With Multihead Weigher

Application:

It is suitable to use in packing the high accuracy and easy fragile material. Such as: nuts, pet food, puffy food, chips, jelly, candy, pistachio nuts, apple slices, frozen dumpling, coffee beans, pasta, cotton candy, french fries, rice, small hardware etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Horizontal Pre-Made Pouch Doypack Granule Packing Machine With Multihead Weigher

FEATURES

1. Easy operation. Most of of parameters in 7inch Simens touch screen with multi-language.

2. Accuracy is very good. Dosing by high precision multihead weigher, Japanese technology ensure high precison and guarratee.

3. Full automatic, Feeding, Dosing, Bag Inputting, Sealing. ( Bag can stand up, or with Euro hole, Linked, date of manufacture )

4. Package Film: Lamination Pouch ,PE,Aluminium Pouch, Paper Pouch, Bag type can be Stand bag, zipper bag, flat bag (3 side seal, 4 side seal, bag with punched hole handle, pillow bag etc.).

5. Packaging Machine are used in almost every industry today,food or non-food, They are efficient packaging solutions.

Automatic Horizontal Pre-Made Pouch Doypack Granule Packing Machine With Multihead Weigher

WORKFLOW

Z-elevator deliver

Multi-Head Weigher Measure Weight

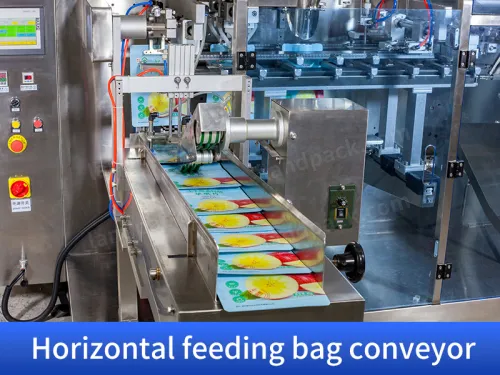

Feeding Bag

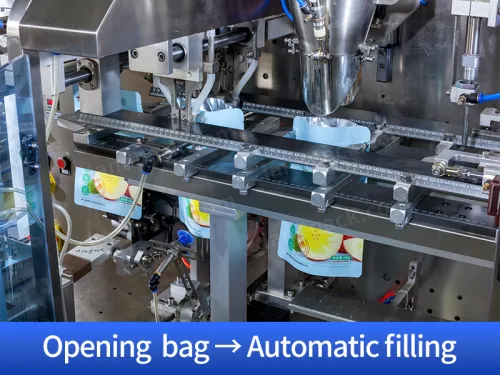

Open Bag

Filling material into bag

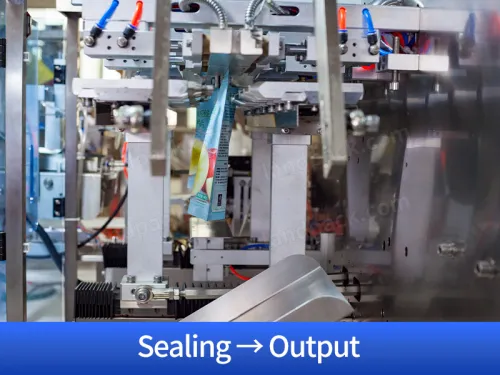

Sealing bag

Output the finished products

PARAMETER

Automatic Granule Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator
