Applications

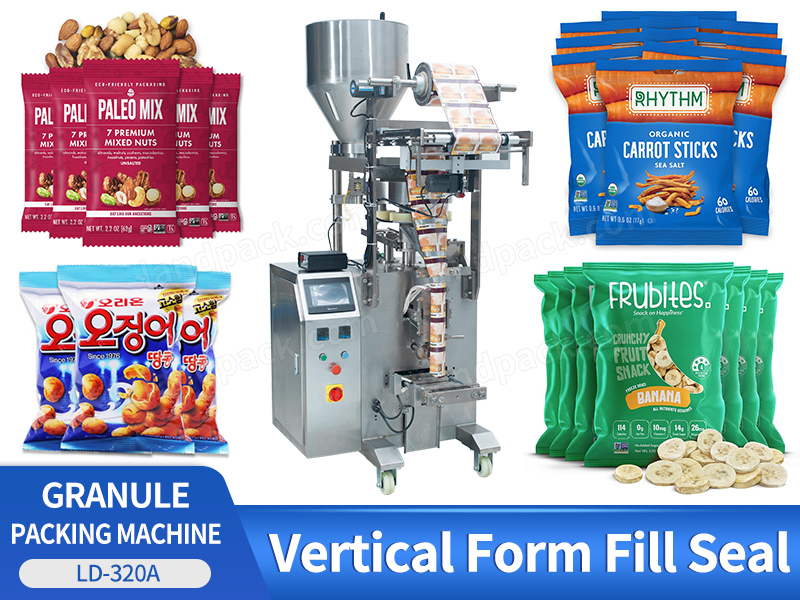

Automatic Multi-function Packaging Machines Vertical Form Fill Seal Granule Packing Machine

Application:

Suitable for tea, food, food, seeds, fruit, grain shape chemicals and pharmaceuticals, micro and small components such as general non-sticky solid materials

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for tea, food, food, seeds, fruit, grain shape chemicals and pharmaceuticals, micro and small components such as general non-sticky solid materials

Automatic Multi-function Packaging Machines Vertical Form Fill Seal Granule Packing Machine

FEATURES

1.The machine structure is compact, step motor to pull film solid Reliable, stable performance, low noise.

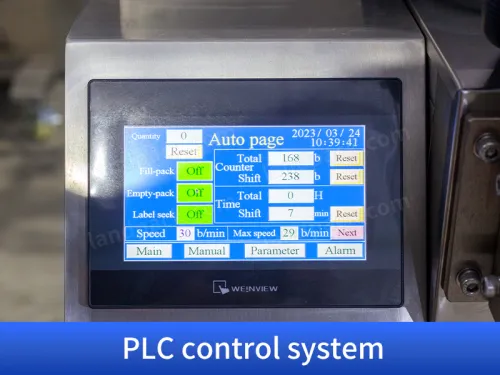

2.Using photoelectric eye control system reliable and stable performance.

3.The frequency control of motor speed, more stable operation, lower

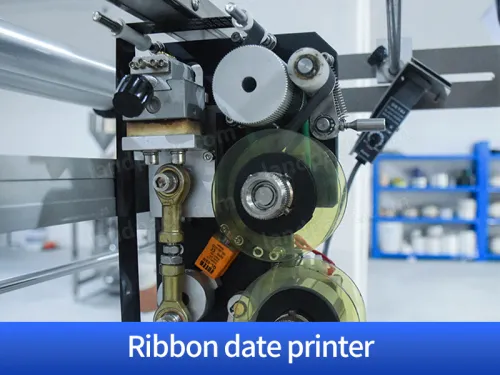

4.Automatic measuring bagging date printing to finished products output off.

Automatic Multi-function Packaging Machines Vertical Form Fill Seal Granule Packing Machine

WORKFLOW

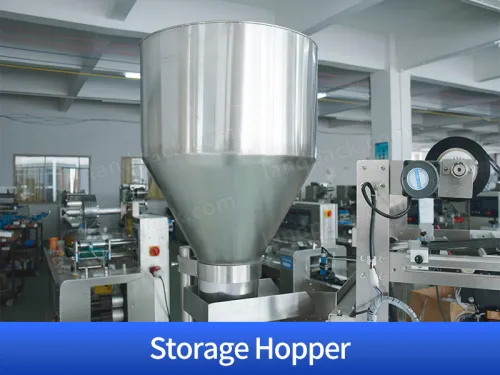

Material Feeding

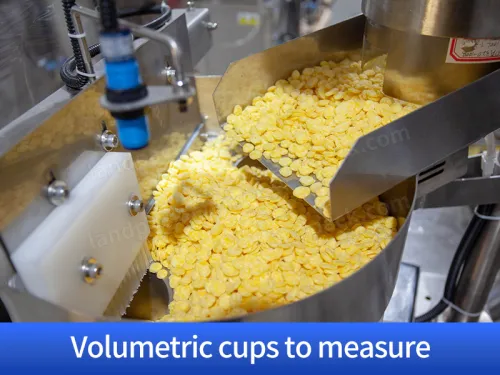

Volumetric Cup Measuring

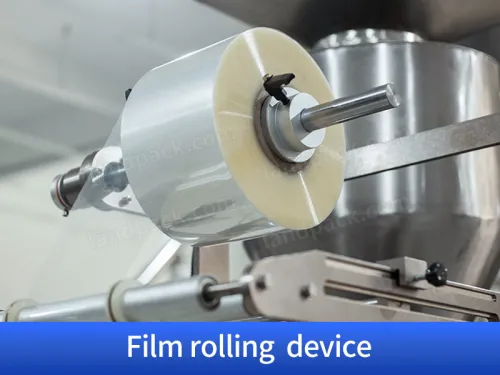

Bag Forming

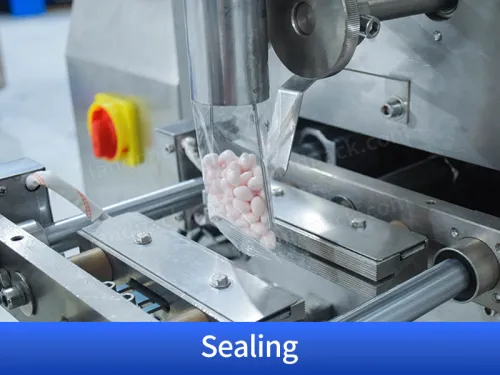

Bag Sealing

Finished Product Output

PARAMETER

Semi Automatic Granule Vertical Packing Machine
Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
