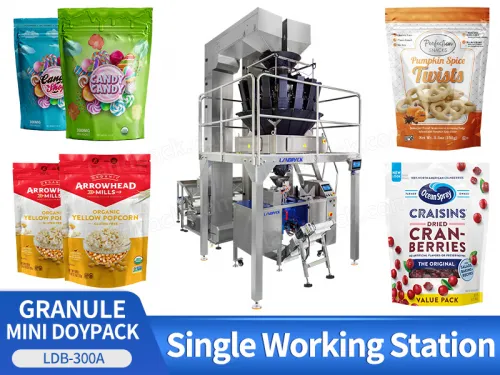

Fully Automatic Granule Mini Doypack Premade Pouch Packing Machine With Teflon Weigher

Application:

It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal,suitable for various granlue material in premade pouch style, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

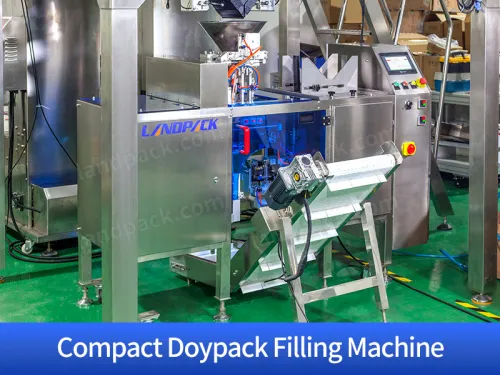

Fully Automatic Granule Mini Doypack Premade Pouch Packing Machine With Teflon Weigher

FEATURES

1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly;

2. No bag prompting function;

3. Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;

4. Positioning (anti-dropping) function of hopper.

Fully Automatic Cannabis Mini Doypack Premade Pouch Packing Machine

WORKFLOW

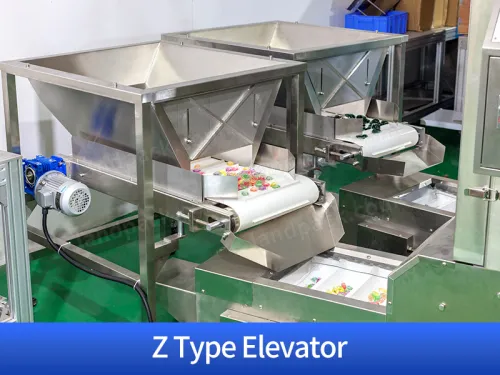

Granule Material Feeding

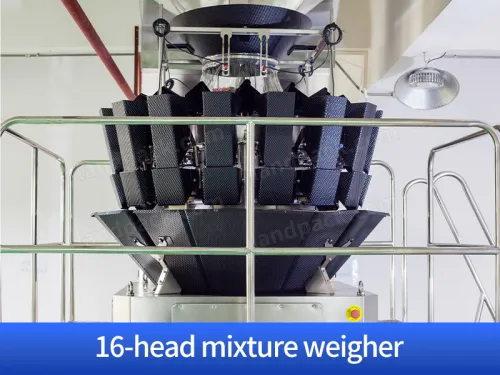

Granule Material weighing

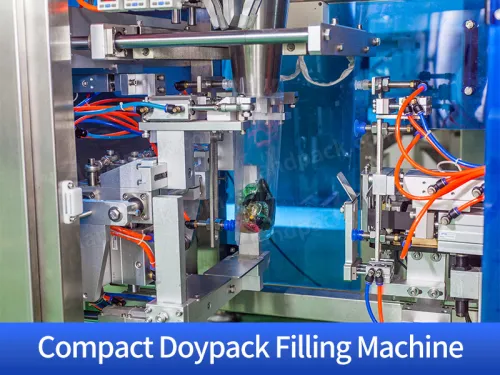

Premade Pouch Opening Filling Sealing

Finished Product Output

PARAMETER

			Granule Packing Machine
			Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
			Bag Type	3 Side Seal Bag, Stand-up Bag
			Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
			Size Range	80mm≤W≤300mm 100mm≤L≤300mm
			Speed	0-15bags/min
			Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
			Sealing Width	10mm (5-20mm can be customized)
			Voltage	220V, Single-phase, 50/60HZ, 1.2KW
			Air Pressure	0.65Mpa
			Air Consumption	0.3m³/min (Standard machine, no additional function)
			Body Dimension	17706001260mm
			Packing Dimension	18607101650mm (Export non-fumigation wooden case)
