Fully Automatic Plastic Bottle Jar Granule Filling Capping Labeling Machine Line

Introduction:

Application: popcorn, candy, gummy, peanut, pet food, snack food, laundry gel beads, wolfberry, nuts and other granular quantitative weighing packaging；

Filling containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Application: popcorn, candy, gummy, peanut, pet food, snack food, laundry gel beads, wolfberry, nuts and other granular quantitative weighing packaging；

Filling containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc.

Fully Automatic Plastic Bottle Jar Granule Filling Capping Labeling Machine Line

FEATURES

1. It's available to store 10 kinds of working parameters in the machine for flexible product changeover.

2. For the dusty materials, we can add a vacuum device to keep the workplace clean.

3. Use superior mechanical components, reduce the wear out loss.

4. PLC control and color touch screen 7"with stable and high accuracy output.

Automatic Snack Food Corn Popcorn Granule Filling Capping Labeling Machine Line

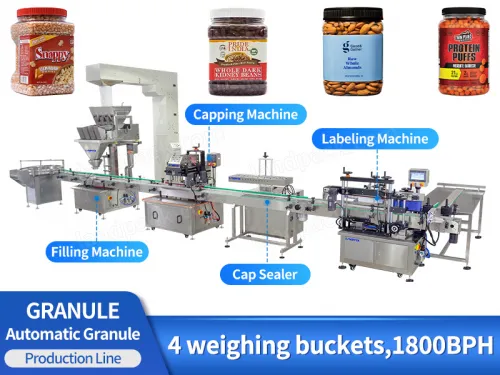

WORKFLOW

bottle unscrambler

weighting and filling

botte capping

botte labeling

bottle nuscrambler

PARAMETER

4 heads linear scale filling machine
Model	LD-AX4-1	LD-AX4-2	LD-AX4-3
Weight range	5-300g	50-2000g	50-3000g
Accuracy	0.5-1g
Max.speed	70wpm
Hopper volume	500ml
Control panel	20
Max mixing products	4		2
Power	1200W
Voltage	220V/50/60HZ/6A
Packing Dimension	10281078825		121511561025

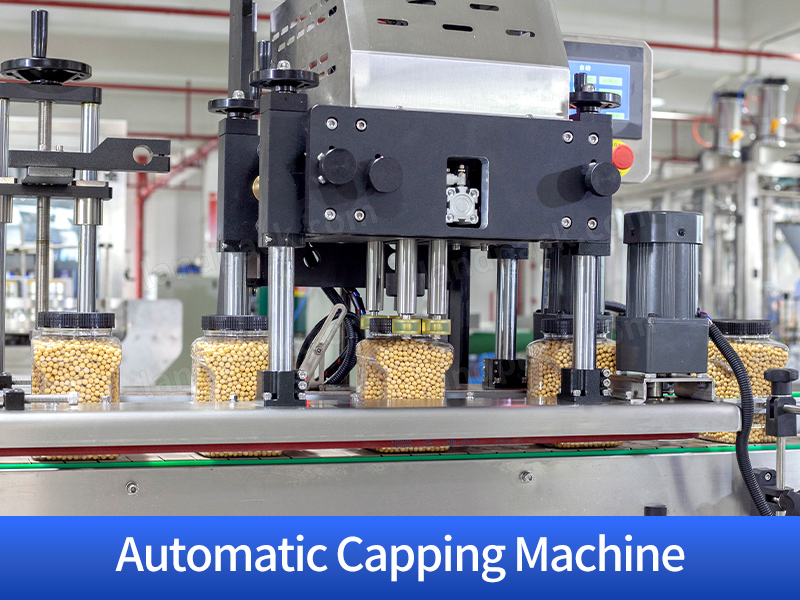

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Automatic double heads labeling machine
Model	LFT-SM-200C(Single heads labeling)	LFT-SM-100C(Single heads labeling)
Labeling speed	10-40Bottle/min	15-20Bottles/min
Labeling accuracy	±1mm	±1mm
Label maximum width	200mm（Could be customized）	150mm（Could be customized）
Size of the object being attached	Height≤400mm; Thickness≤100mm（Could be customized）	Height≤400mm; Thickness≤100mm（Could be customized）
Label ID	Φ76.2mm	Φ25.4mm
Label OD	MaxΦ330mm	MaxΦ230mm
Voltage	220V、50HZ	220V、50HZ
Power	3.5KW	2.5KW
Weight	500kg	400kg
Dimension	L3002W1478H1810mm	L2950W1400H1810mm
