Automatic 10 Heads Hand Sanitizer Piston Pump Viscous Liquid Filling Machine

Introduction:

The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, such as edible oil, sauce, daily necessities, medicine, mobility liquid, detergent, automobile oil, glass water, hand sanitizer, shower gel, shampoo, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

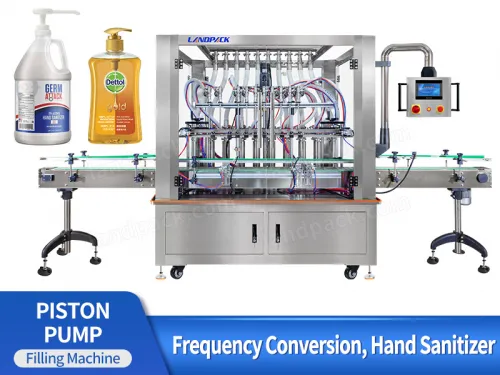

Automatic 10 Heads Hand Sanitizer Piston Pump Viscous Liquid Filling Machine

FEATURES

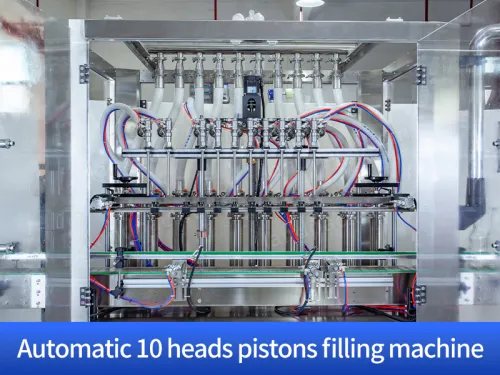

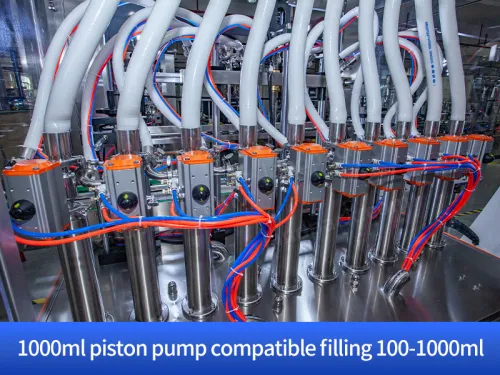

Piston-type metering cylinder, servo-driven, suitable for filling thick sauce with large particles.

The special gel anti-drip filling head and the enlarged rotary valve will not block or leak when filling large-grain sauce.

The horizontal mixing and horizontal pushing design improves the filling speed and solves the problem of uneven oil stratification.

It is widely used for food and beverage industry, chemical industry, cosmetic industry, pharmaceutical industry, and etc.

100ML-5000ML Automatic 10 Heads Piston Honey Syrup Filling Bottle Machine

WORKFLOW

Empty Bottle Feeding

Piston Filling

Output

PARAMETER

Ten Heads Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
