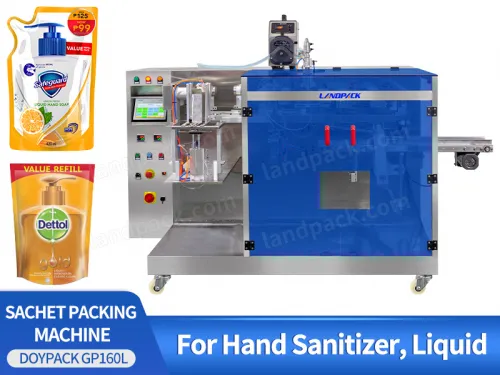

Automatic Hand Sanitizer Horizontal Pouch Packing Machine Doypack Filling And Sealing Machine

Introduction:

Suitable for filling packing different liquid, paste and cream products such as hand sanitizer, oil, milk, juice, ketchup, tomato sauce, peanut butter, honey, mayonnaise, liquid detergent, shampoo, body washing and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

FEATURES

1. Different machine models available to meet a wide range premade bag size.

2. With upgrade PLC control system, easy for operation on touch screen of parameter setting.

3. Machine machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.

Automatic Hand Sanitizer Horizontal Pouch Packing Machine Doypack Filling And Sealing Machine

WORKFLOW

Feeding Bag Device

Open Bag Device

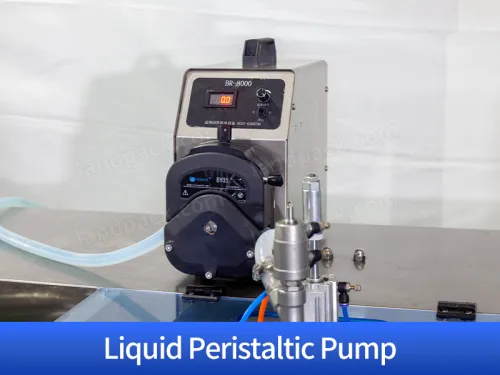

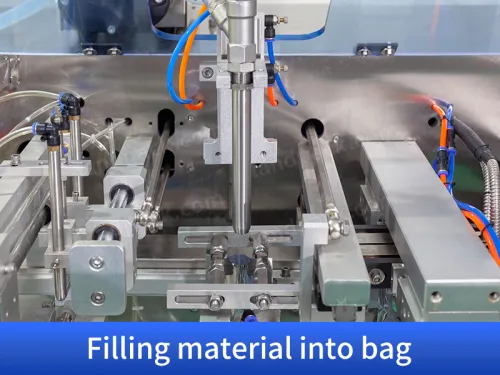

Automatic Liquid Filling

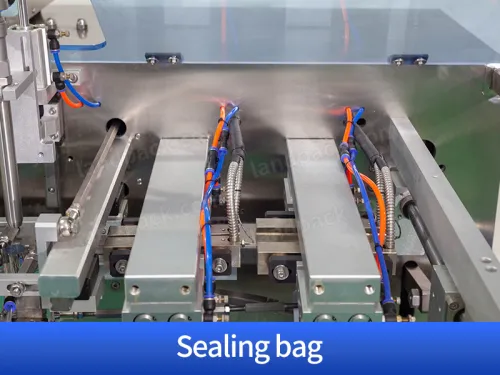

Automatic Sealing Bag

Output the finished products

PARAMETER

	Automatic Rotary Doypack Liquid Packaging Machine
	Model	LDSP-160L
	Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
	size	W：100-210 mm
	Filling range	10-1000g
	Packing speed	10-45 bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Weight	900 KG
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
