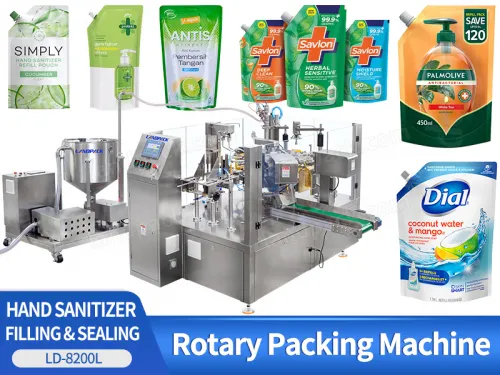

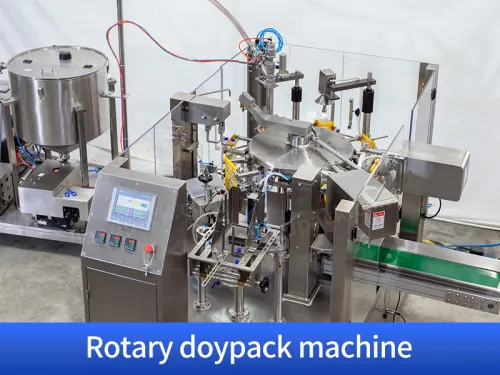

Automatic Hand Sanitizer Rotary Packing Machine Doypack Pouch Filling And Sealling Machine

Introduction:

This liquid rotary packing machine widely used in filling various viscous liquids, such as hand sanitizer, mayonnaise, edible oil, ketchup, honey, cream, paste, sauce, lubricating oil, paint, mouthwash, various essential oils, and viscous liquid products.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This liquid rotary packing machine widely used in filling various viscous liquids, such as hand sanitizer, mayonnaise, edible oil, ketchup, honey, cream, paste, sauce, lubricating oil, paint, mouthwash, various essential oils, and viscous liquid products.

Automatic Hand Sanitizer Rotary Packing Machine Doypack Pouch Filling And Sealling Machine

FEATURES

1. Rotor Pump for feeding and measuring the high viscousity Liquid Products.

2. 100L SS316 Storage Hopper for big Tank Liquid Storage No Liquid With Feeding Alarm Function.

3. 8 pre setting Liquid Capacity easy to Operate on the touch screen.

4. Simens PLC Control system keep the full set machine running stable.

5. Rotary doypack machine has the functions of no bag no filling & no filling no sealing.

6. Filling Range from 100ml-2500ml.

7. High Speed 25-40bags per min saving labour cost.

Automatic Hand Sanitizer Rotary Packing Machine Doypack Pouch Filling And Sealling Machine

WORKFLOW

01

Automatic Bag Feeding

02

Automatic Bag Open

03

Bag Openning

04

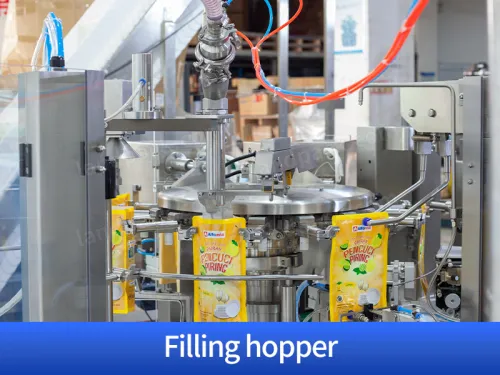

Automatic Liquid Filling

05

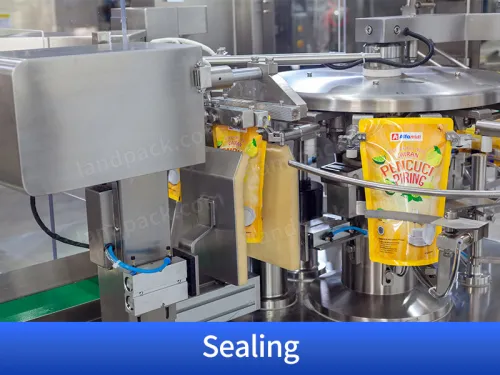

Automatic Sealing

06

Date Printing

07

Finished Product Ouput

PARAMETER

Automatic Hand Sanitizer Rotary Packing Machine Doypack Pouch Filling And Sealling MachineAutomatic Rotary Doypack Liquid Packaging Machine
ModelLD-8200D/ 8240D/ 8300D
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW: 100-300mm L: 100-450mm
Filling range5-2500g (Depending on type of products)
Packing speed25-60 bags/min (The speed depends on type of products and packaging material used)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
