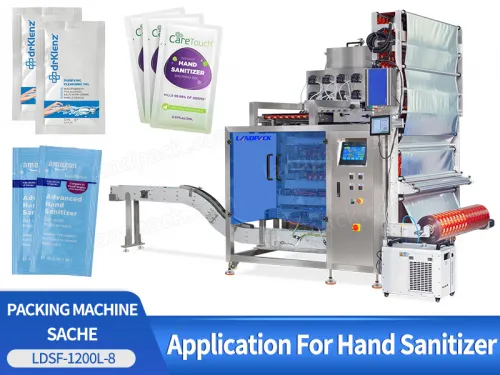

High Speed 8 Lanes Hand Sanitizer Gel Liquid Sachet Counting Packaging Machine

Introduction:

This machine can automatically pack liquid materials, such as hand wash, lotion, cream, energy gels, honey, and paste materials used in the chemical, medical, and food industries.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This machine can automatically pack liquid materials, such as hand wash, lotion, cream, energy gels, honey, and paste materials used in the chemical, medical, and food industries.

High Speed 8 Lanes Hand Sanitizer Gel Liquid Sachet Counting Packaging Machine

FEATURES

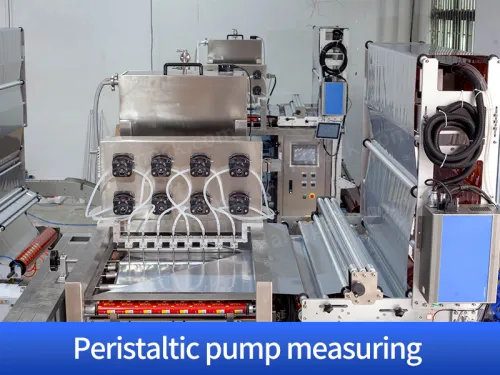

1. Peristaltic pump measuring and filling, suitable for good fluidity liquid products, a wide range of applications.

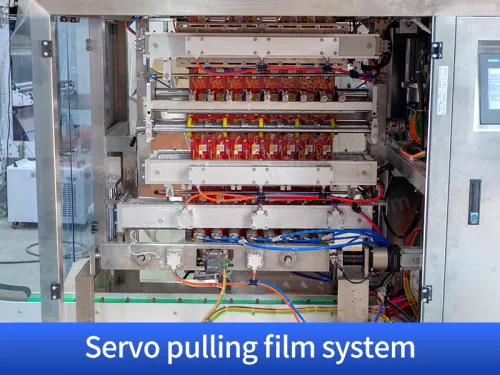

2. Servo pulling film system, working stably and smoothly.

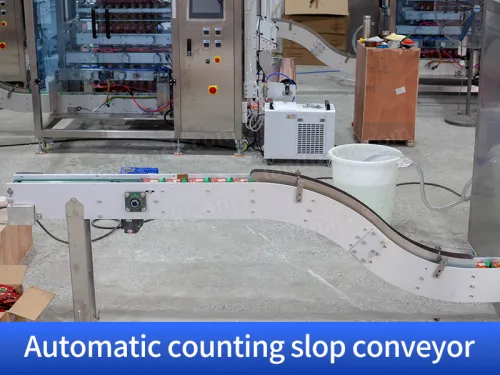

3. Automatic counting slop conveyor, connecting with box packing machine, to achieve a fully automatic packaging line.

4. Sensor detects and counts the sachets correctly, adjustable counting numbers with high precision.

5. Beautifully finished sachet package, clear laser coding on sachets.

High Speed 8 Lanes Hand Sanitizer Gel Liquid Sachet Counting Packaging Machine

WORKFLOW

Film Unwinding

Film Slitting

Bag Formation

Liquid Filling

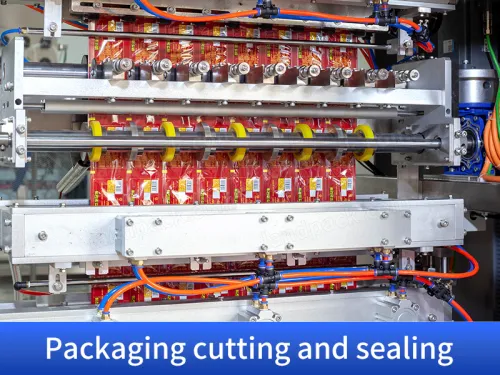

Sealing

Cutting

Batch Coding

PARAMETER

	High Speed 8 Lanes Hand Sanitizer Gel Liquid Sachet Counting Packaging Machine
	Model	LDFS-960L
	Production capacity	Max. 480 bags/min
	Diameter of the film roll	maximum 300mm
	Packaging film width	The widest 1200 mm
	Outer bag size	The longest 120mm widest 120mm product packaging
	Air pressure	0.5-0.7Mpa
	Machine noise	Less than 80db(A)decibel
	Heating power	5.5 Kw
	Total weight of the machine	500KG
	Machine size	1415mm1686mm2130mm(LWH)
