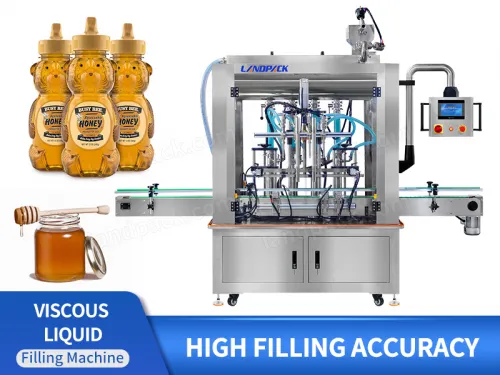

Automatic 4 Heads Piston Pump Honey Jar Bottle Filling Machine

Introduction:

The filling machine is mainly suitable for packing all kinds of liquid, fluid and paste material, such as honey, edible oil, sauce, daily necessities, medicine, mobility liquid, detergent, automobile oil, glass water, hand sanitizer, shower gel, shampoo, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 4 Heads Piston Pump Honey Jar Bottle Filling Machine

FEATURES

The filling nozzle is equipped with an anti-drip device to ensure no wire drawing or dripping during filling.

All contact materials are made of stainless steel, easy to disassemble, easy to clean, and meet hygiene requirements.

No need to replace parts, you can quickly adjust and replace bottles of different shapes and specifications, with strong applicability.

Using well-known brands of electrical and pneumatic components, the failure rate is low, the performance is stable and reliable, and the service life is long.

Automatic 4 Heads Piston Pump Honey Jar Bottle Filling Machine

WORKFLOW

Empty Bottle Feeding

Piston Pump Filling

Output

PARAMETER

Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
