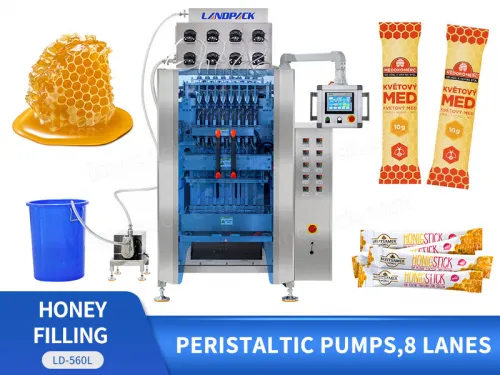

Automatic Multi Lane Honey Stick Packing Machine Liquid Vertical Form Fill Seal Machine

Introduction:

It is suitable for packaging liquid paste in food, chemical, daily chemical, and other industries. Such as honey, ketchup, olive oil, shampoo, edible oil, cream, juice, jam, butter, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for packaging liquid paste in food, chemical, daily chemical, and other industries. Such as honey, ketchup, olive oil, shampoo, edible oil, cream, juice, jam, butter, etc.

Automatic Multi Lane Honey Stick Packing Machine Liquid Vertical Form Fill Seal Machine

FEATURES

1. Accurate measurement, high packaging efficiency, compact structure, low noise, and long service life

2. The whole machine is controlled by imported PLC, driven by an imported servo motor, and runs smoothly

3. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.

4. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

5. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.

6. Multi lanes machines can produce multi lanes bags at the same time.

Automatic Multi Lane Honey Stick Packing Machine Liquid Vertical Form Fill Seal Machine

WORKFLOW

Film Unwinding

Film Slitting

Bag Formation

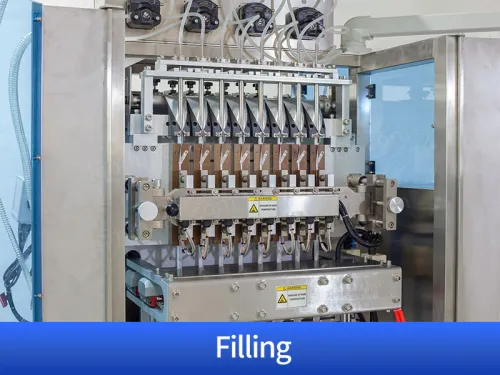

Liquid Filling

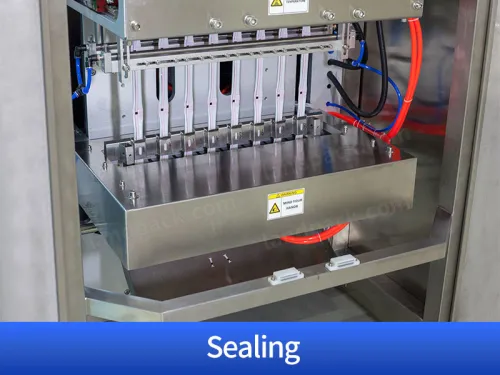

Sealing

Cutting

PARAMETER

Multi Lane Honey Packing Machine
Model	LD-280BKL	LD-560BKL
Track Number	4~6 Track	8~12 Track

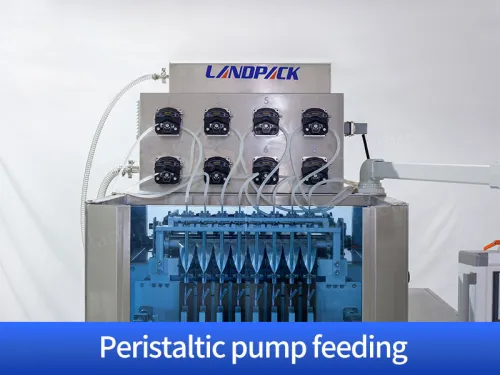

Filling Method	1.Piston pump; 2.Peristaltic Pump; 3.Volumetric cup
Capacity	Max.35 cycle/min
Sachet Size	L:50--180mm; W:17-30mm	L:50--180mm; W:17--30mm
Film Width & Thickness	Max.280mm; 0.07-0.1mm	Max.560mm; 0.07-0.1mm
Sealing Type	Backsealing/ Stick bag
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw
