Factory Price Automatic Honey Single Lane Stick Bag Packaging Machine

Introduction:

This machine is primarily designed for packaging liquids, pastes, and a variety of beverages, as well as medical and chemical products. It is suitable for items like honey, oil, sauces, purees, juices, creams, gels, milk, yogurt, beer, alcohol, laundry detergent, and more.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Factory Price Automatic Honey Single Lane Stick Bag Packaging Machine

FEATURES

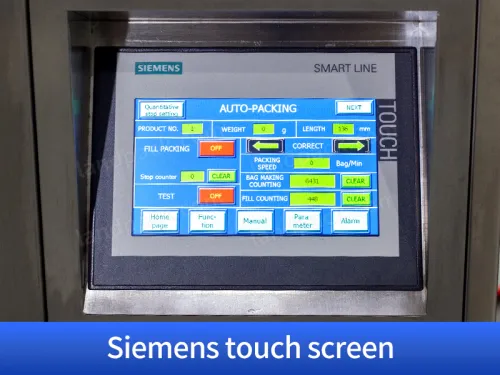

1. Siemens touch screen, one button to adjust speed, easy to operate;

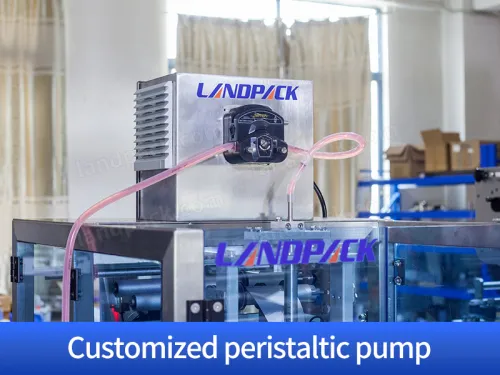

2. Customized peristaltic pump for precise liquid metering;

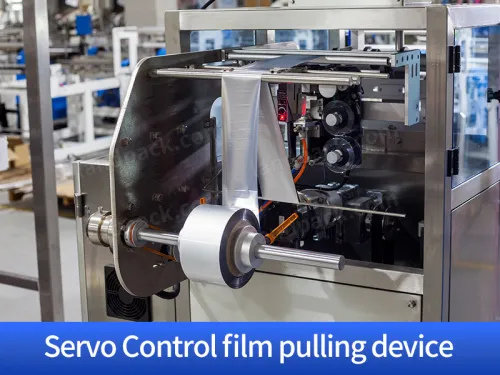

3. Servo control reciprocating film pulling, ensures nice sealing without wrinkles;

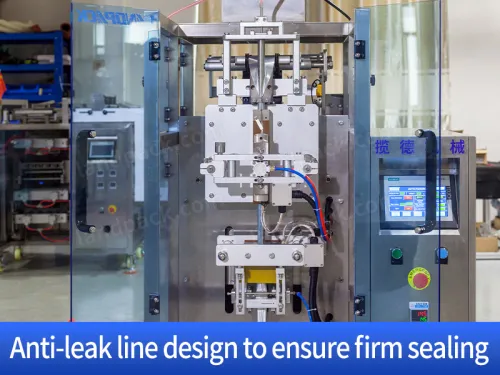

4. Anti-leak line is added on the top seal to ensure perfect and firm sealing performance;

5. The rounded corner design, ensures the gorgeous curvature for the bag;

Factory Price Automatic Honey Single Lane Stick Bag Packaging Machine

WORKFLOW

Film Unwinding

Film Slitting

Bag Formation

Liquid Filling

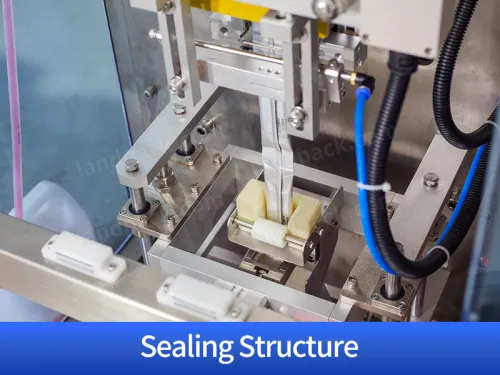

Sealing

Cutting

PARAMETER

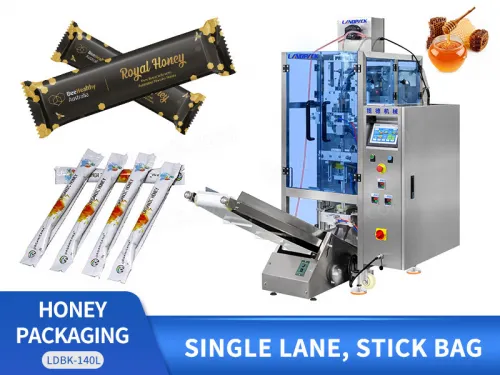

		Automatic Single Lane Honey Packing Machine
		Name	Landpack Single Lane Stick Pack Machine
		Model	LDBK-140L
		Dosing Method	A: Piston pump 1-30ml;
			B: Piston pump 2-42ml;
			C: Magnetic pump 3Liter/min (for pure liquid or oil product)
		Hopper type	A: Single layer SS304 hopper;
			B: Double jacket SS304 hopper;
			C: Magnetic pump hose connection to raw liquid tank
		Packing speed	20-45 bag/min (1200-2700bag/min)
		Bag size range	L 40-150mm ; W 15-100mm
		Bag Seal type	Stick /pillow
		Cut type	A: Teeth cut;
			B: Straight cut
			C: Round cut
			D: Irregular cut (Stick Width within 40mm)
		Film thickness	0.05-0.1mm
		Film material	Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper
		Drive method	Electricity + Pneumatic
		Control style	PLC control system+English/Chinese screen (Or customized panel)
		Power	1.8KW
		Power supply	AC220V 1phase 50Hz/ AC380V 3phases 50Hz
		Air consumption	0.4cbm/min 0.8Mpa
		Dimension	750x710x1780 mm
		HS CODE for export	84223030
