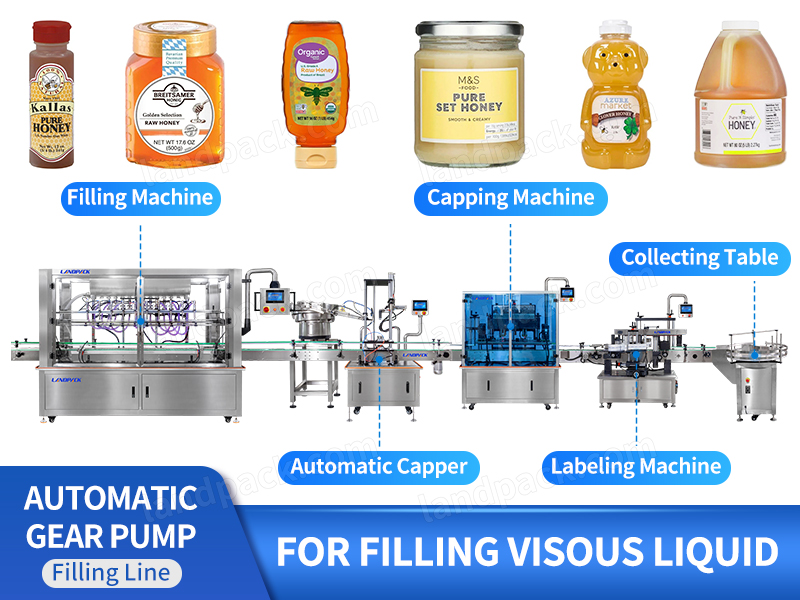

Fully Automatic 10 Heads Gear Pump Honey Viscous Liquid Filling Capping Machine Line

Introduction:

This machine can be used for automatic filling equipment of bottles of different specifications.This filling machine widely used in filling viscous liquids, such as honey, laundry detergent, engine oil, lubricating oil, honey,cream,shampoo,daily chemicals and other liquid products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic 10 Heads Gear Pump Honey Viscous Liquid Filling Capping Machine Line

FEATURES

1. Gear Pump: high precision measuring & easy adjustment, conveniently routine cleaning maintenance

2. Double Heads Capping Machine: High Production Capacity

3. Double Sides Labeling Machine Compatible for One Side Labeling

4. Conveyor Belt Wider and Strong Bearing Capable for Big Bottles

5. Fully Line PLC Procedure Control, high accuracy, saving time and cost of consumables and material

Fully Automatic 10 Heads Gear Pump Honey Viscous Liquid Filling Capping Machine Line

WORKFLOW

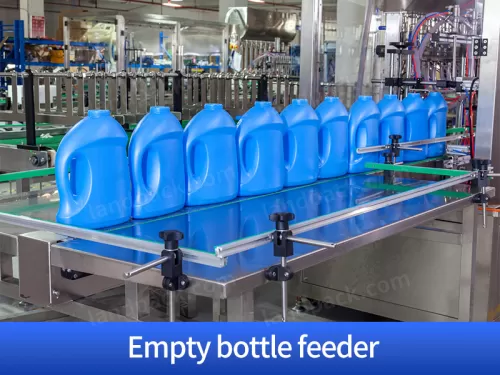

Empty Bottle Feeding

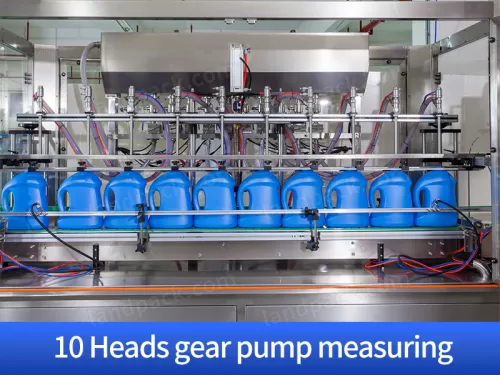

Liquid Gear Pump Filling

Capping

Labeling

Finished Product Output

PARAMETER

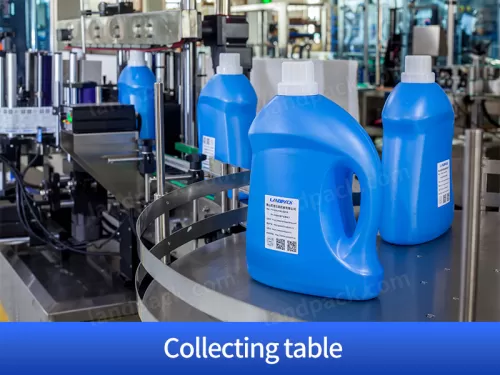

			Collecting Table
			Capacity	30-50Bottle
			Material	Stainless Steel 304
			Dimension	3002000100mm
			Weight	200KG

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

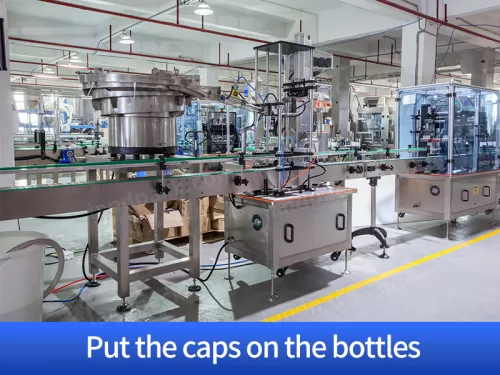

			Vibrator Cap Lifter+Cap feeder
			Material of machine	SS304SS304
			Cover diameter	Diameter30--80mm(customized is acceptable)
			Min Cover height	10mm10mm
			Bottle height size	100--500mm (Customized is acceptable)
			Speed	25--30bpm(depends on material and cover size)
			Conveyor size	(L)2500(W)1600(H)900mm
			Air Pressure	0.5--0.7MPa
			Power	220V.50HZ,2KW
			Cap feeder	Cap feeder for press head with straight press tube
			Control system	PLC+Touch screen

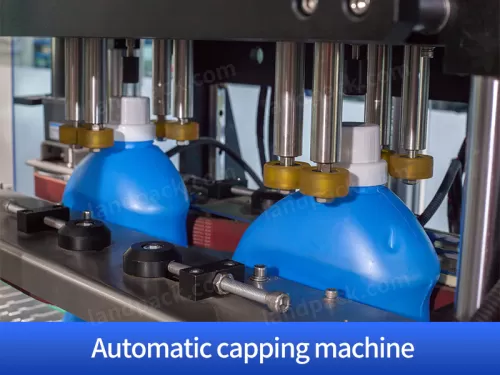

			Capping machine
			Material of machine	SS304
			Cover diameter	Diameter30-80mm
			Min Cover height	10mm
			Bottle height size	100-500mm (Customized is acceptable)
			Speed	60-70 bpm(depends on material and cover size)
			Conveyor size	(L)3400(W)114(H)900mm
			Machine size	(L)2500(W)900*(H)1600mm
			PLC	Panasonic+Movable touch screen
			Capping method	8 capping wheels + Pressing cap device
			Power	220V.50HZ,2KW
			Control system	PLC+Touch screen
			Air consumption	0.5-0.7mpa

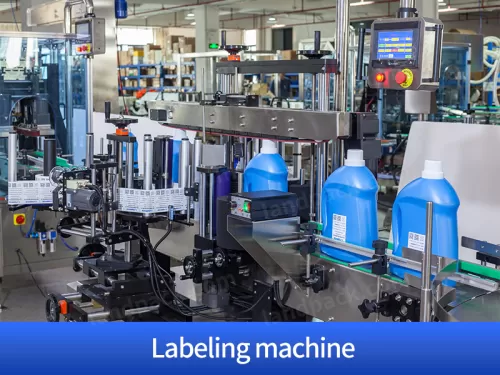

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg
