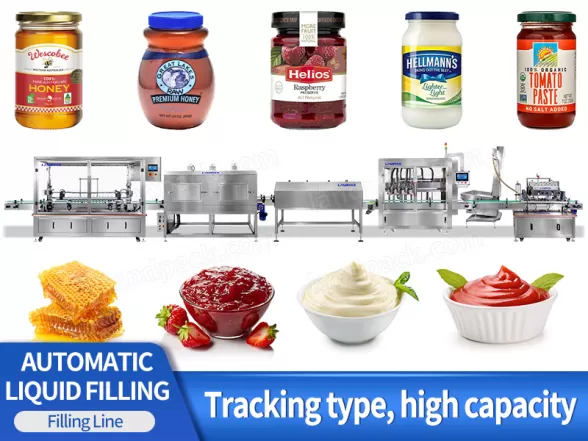

High Precision Honey Filling Bottle Washing Filling Capping Machine Line

Introduction:

The filling machine line is engineered to handle a diverse array of viscous and liquid products, such as honey, syrup, shampoo, body wash, liquid detergent, dishwashing liquid, olive oil, peanut butter, chocolate paste, fruit jam, tomato sauce, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The filling machine line is engineered to handle a diverse array of viscous and liquid products, and high-quality packaging solutions for industries including food, cosmetics, pharmaceuticals, and chemicals. Such as honey, syrup, shampoo, chocolate paste, body wash, olive oil, liquid detergent, dishwashing liquid, peanut butter, fruit jam, tomato sauce, etc.

High Precision Honey Filling Bottle Washing Filling Capping Machine Line

FEATURES

1. Adaptable Bottle Compatibility: The system supports a variety of bottle shapes and sizes, providing versatile packaging solutions for different product types.

2. Piston-Driven Precision: Ideal for thick and viscous substances such as honey, ensuring accurate and uniform filling every time.

3. PLC-Enhanced Automation: Delivers exceptional accuracy, reduces material waste, and enhances production efficiency through advanced programmable logic control.

High Precision Honey Filling Bottle Washing Filling Capping Machine Line

WORKFLOW

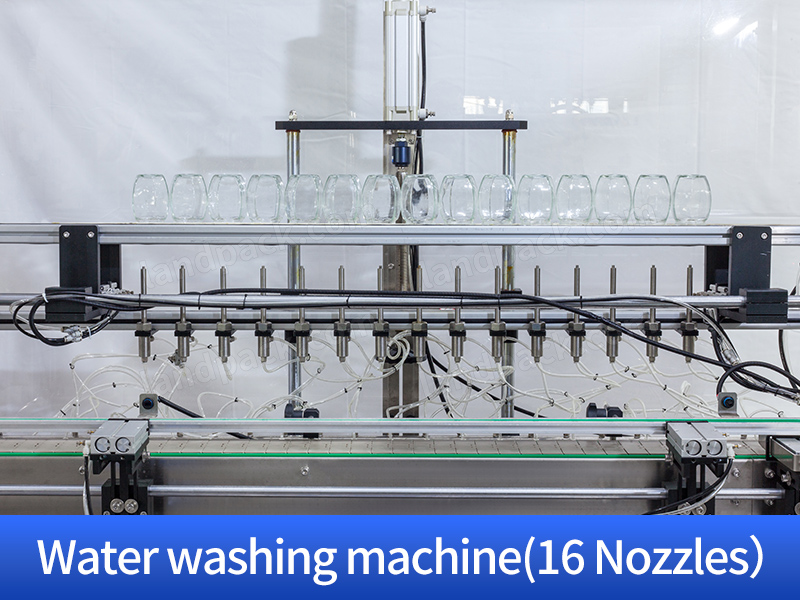

1. Water washing machine (16 Nozzles)

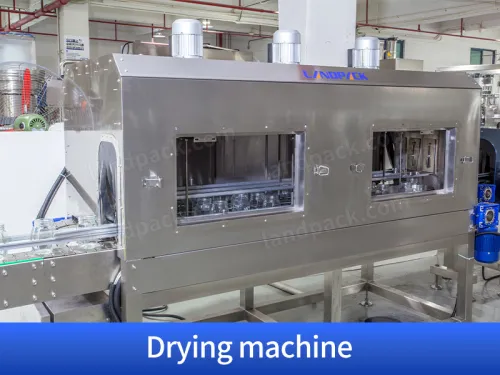

2. Drying machine

3. UV sterilizer

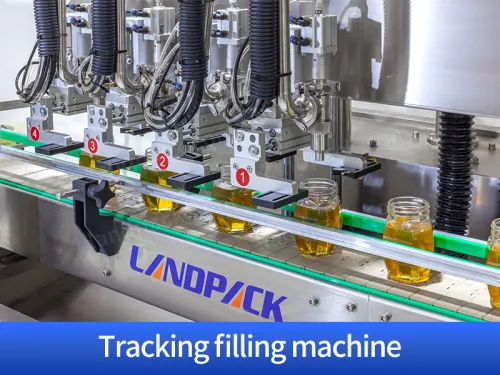

4. 4 heads piston tracking filling machine

5. Two heads screw capping machine

6. Collecting table

PARAMETER

Automatic bottle washing machine
Washing head	4 Heads(can be customized)	6 Heads(can be customized)	8 Heads(can be customized)
Bottle diameter	30-130mm(customized)	30-130mm(customized)	30-130mm(customized)
Washing way	negative ions	negative ions	negative ions
Washing speed	14-24bottles pet mintue	25-35bottles pet mintue	36-46bottles pet mintue
Machine body	SS 304	SS 304	SS 304
Machine voltage	220V(can be customized) 3.5KW	220V(can be customized) 3.5KW	220V(can be customized) 3.5KW
Machine weight	580kg	680kg	780kg
Machine size(LWH)	200010001800mm	200015001800mm	200020001800mm

			Automatic Bottles Drying Machine
			Machine Model	LD-HG6000
			Power	3 phase 380v
			Power Consumption	10KW
			Tunnel Outside Size	About3403852000mm
			Tunnel Inside Width	About 100mm
			Suitable Bottle Height	About 150-300mm(Can be customized)
			Temperature Control	100-160 degree
			Machine Size	About20006101640mm
			Packaging Size	About2150800920mm
			Packaging Weight	About 170kg

			Automatic UV Machine
			Machine Model	LD-UV1
			Voltage	220V/110V50-60Hz
			Power	About 370W
			Quantity of UV Lights	12
			Length of UV Lights	600mm
			Sterilization Area	5-10m per light
			Conveying Speed	0-20m/min
			Machine Size	About(L)2000(W)222(H)900±50mm

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

			Double-head four-wheel capping machine
			Speed	0-100pcs/Min
			Cap Type	Screw cap
			Bottle Diameter	30-110mm
			Bottle Height	50-250mm
			Cap Diameter	18-80mm
			Power	5KW
			Air Pressure	0.6-0.8Mpa
			Voltage	220V/380V, 50Hz/60Hz
			Weight	1000KG
			Dimension	2600mm1200mm 2050mm
