Introduction:

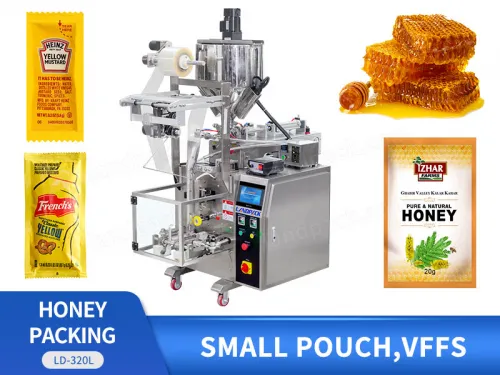

The versatile honey 3/4 side seal sachet packing machine is highly recommended for packaging a broad spectrum of products. It is suitable for items such as honey, syrup, ketchup, soy sauce, chocolate sauce, peanut butter, oil and salad dressing.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
The versatile honey 3/4 side seal sachet packing machine is highly recommended for packaging a broad spectrum of products. It is suitable for items such as honey, syrup, ketchup, soy sauce, chocolate sauce, peanut butter, oil and salad dressing.
FEATURES
1. Computer PLC control and automatic alarming function.
2. Multilingual screen display, easy operation.
3. High sensitivity photoelectric eye color tracing,more accuracy.
4. Bag type can be customised to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.
5. Famous brand components, ensure the quality and durability of machine.
6. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.

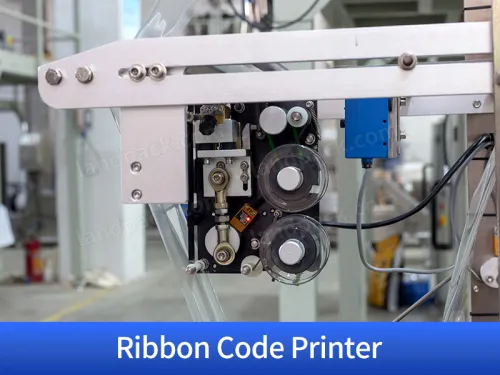

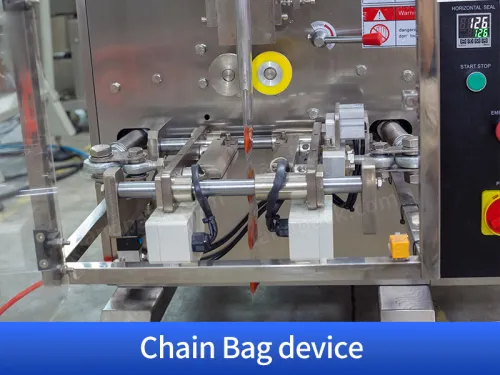

7. Ribbon code printer, link-bag device is option.
8. Multipurpose packaging, suitable for various packaging of different product.
WORKFLOW
Automatic Film Roll Making
Automatic Liquid Filling
Automatic Sealing
PARAMETER
Automatic Honey Vertical Packing Machine | |||||
Model | LD-320L | LD-380L | |||
Film width | 120-320mm | 180-380mm | |||
Bag length | 50-200mm | 60-280mm | |||
Bag width | 50-150mm | 60-180mm | |||
Diameter of film roll | Max.300mm | Max.320mm | |||
Packing speed | 35-70bag/min | ||||
Measuring range | 50-500ml | 50-750ml | |||
Film thickness | 0.04-0.07mm | ||||
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW | |||
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm | |||
Machine weight | About 300kg | About 450kg |
