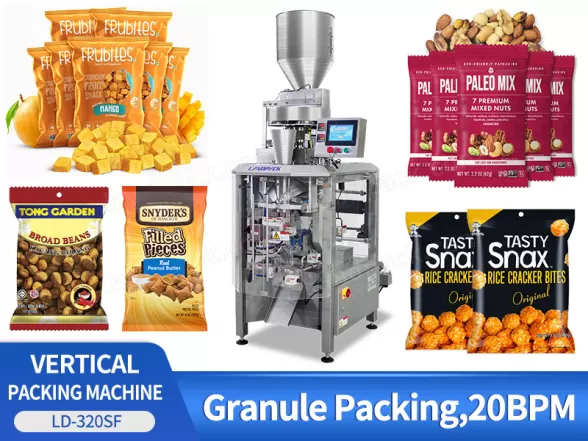

5kg 10kg Automatic Vertical Granule Pouch Bag Packing Machine Vffs Granule Packing Machine

Application:

The machine is suitable for packing loose, non-adhesive, small granular materials in food, chemical and other industries, such as peanuts, popcorn, cornmeal, dried fruit, seed, small hardware, dumplings, vegetable, fruits, sugar, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

5kg 10kg Automatic Vertical Granule Pouch Bag Packing Machine Vffs Granule Packing Machine

FEATURES

1. Efficient: Bag making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintenance.

5kg 10kg Automatic Vertical Granule Pouch Bag Packing Machine Vffs Granule Packing Machine

WORKFLOW

Material Feeding

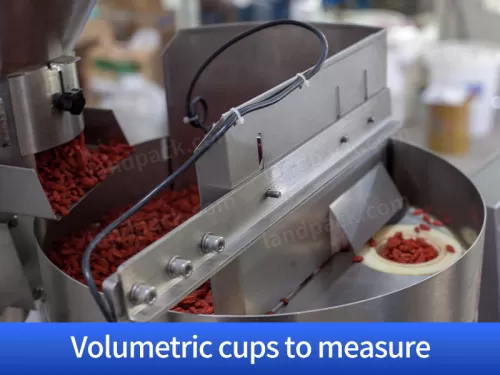

Volumetric Cup Measuring

Bag Forming

Bag Sealing

Finished Product Output

PARAMETER

Semi Automatic Granule Vertical Packing Machine
Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
