Automatic 4 Heads Piston Pump Liquid Filling Capping And Labeling Machine/ Line

Application:

This bottle liquid filling line can be customized to fill various liquid products such as ketchup, peanut butter, alcohol, liquor, hand sanitizer, juice, oil, liquid detergent, shampoo, sauce, paste, honey, syrup, cream, salad sauce, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This bottle liquid filling line can be customized to fill various liquid products such as ketchup, peanut butter, alcohol, liquor, hand sanitizer, juice, oil, liquid detergent, shampoo, sauce, paste, honey, syrup, cream, salad sauce, etc.

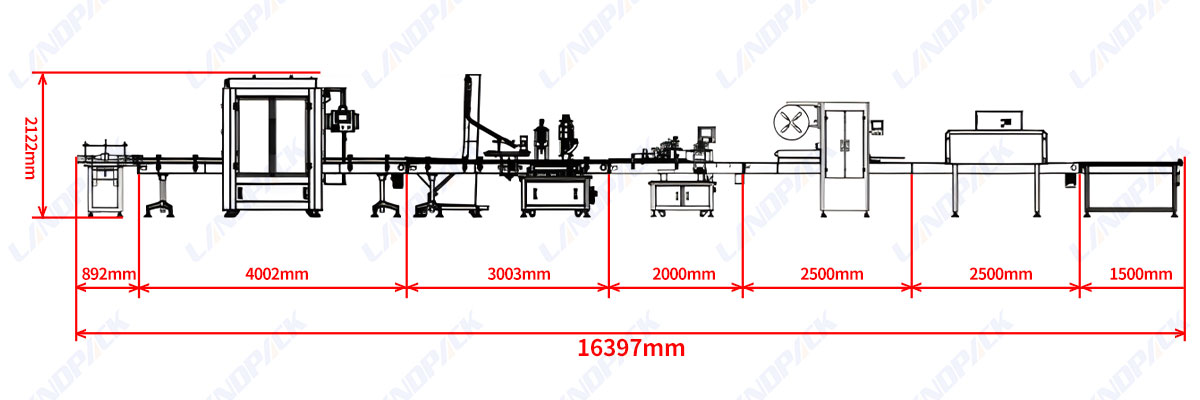

Automatic  4 Heads Piston Pump Liquid Filling Capping And Labeling Machine/ Line

Automatic  4 Heads Piston Pump Liquid Filling Capping And Labeling Machine/ Line

FEATURES

1. Complete supporting facilities, the whole line is fully automatic, saving labor

2. 4-head negative ion bottle washing machine, cleans the inside of the bottle and keeps it clean and hygienic

3. Double-sided labeling machine can label round bottles, single-sided or double-sided

4. The label sleeve at the bottle mouth shrinks to prevent theft and prevent air from entering, which is conducive to preservation.

5. Connected to the carton sealing machine, the entire line is fully automated to increase output.

Automatic  4 Heads Piston Pump Liquid Filling Capping And Labeling Machine/ Line

PARAMETER

Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineAutomatic Bottle feeder
Machine ModelLD-LP800N
Power Supply220V/110V, 50-60Hz, 200W
Turntable Diameter800mm
Suitable Bottle Diameter20-100mm
Suitable Bottle Height30-320mm
Working Speed40-60bottles/min(depending on bottle size)
Package Size1230*1010*1260mm
Gross Weight141kg


Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineAutomatic bottle washing machine
Washing head4 Heads(can be customized)6 Heads(can be customized)8 Heads(can be customized)
Bottle diameter30-130mm(customized)30-130mm(customized)30-130mm(customized)
Washing waynegative ionsnegative ionsnegative ions
Washing speed14-24bottles pet mintue25-35bottles pet mintue36-46bottles pet mintue
Machine bodySS 304SS 304SS 304
Machine voltage220V(can be customized) 3.5KW220V(can be customized) 3.5KW220V(can be customized) 3.5KW
Machine weight580kg680kg780kg
Machine size(L*W*H)2000*1000*1800mm2000*1500*1800mm2000*2000*1800mm


Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineBottle Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08LFZ-10
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Production Speed<15-25 bottles/min<20-35 bottles/min<30-40 bottles/min<40-50 bottles/min
Measurement Accuracy±1%±1%±1%±1%
Power2KW2.5KW3.5KW5KW
Voltage220V, 50Hz220V, 50Hz220V, 50Hz220V, 50Hz
Air consumption0.6-8Mpa0.6-8Mpa0.6-8Mpa0.6-8Mpa
Weight600kg650kg800kg800kg
Dimension

L4000*W1320*H2090

(mm)

L4000*W1320*H2090

(mm)

L4000*W1320*H2090

(mm)

L4000*W1320*H2090

(mm)


Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineAutoamtic capping machine
ModelLFX-JX-01(Four wheel capping)LFX-GS-150(Eight wheel capping)LFX-GS-250(Six wheel capping)
Capacity20-50Bottles/min40-100Bottles/min30-80Bottles/min
Bottle cap diameterΦ22mm-Φ80mm(Could be customized)Φ18mm-Φ80mm(Could be customized)Φ18mm-Φ80mm(Could be customized)
Bottle diameterΦ35mm-Φ140mm(Could be customized)Φ35mm-Φ140mm(Could be customized)Φ35mm-Φ140mm(Could be customized)
Bottle sealing height38mm-300mm(Could be customized)38mm-300mm(Could be customized)38mm-300mm(Could be customized)
Power1.5KW2KW1.5KW
Voltage220V、50HZ220V、50HZ220V、50HZ
Air pressure0.6-0.8Mpa0.6-0.8Mpa0.5-0.7Mpa
weight250kg350kg300kg
DimensionsH3000*W800*L1600mmH3120*W1544*L2122H3100*W1244*L2122


Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm20mm~300mm
Label width/height20mm~200mm(can be customized)20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)30-150mm(can be customized)
Roll Label outer diameter300mm300mm
Roll Label inner diameter76mm76mm
Accuracy±1mm±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)Adhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa0.4-0.6Mpa
Voltage220V can be customized 4KW220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm


Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineAutomatic sleeve label machine
TypeElectric TypeSteam Type
Bottle diameter rangeΦ25 -Φ56mm(A), Φ56-Φ86 mm(B)Φ86-Φ106mm(C), Φ106-Φ125mm(D)Special specifications can be designedΦ25 -Φ56mm(A), Φ56-Φ86 mm(B)Φ86-Φ106mm(C), Φ106-Φ125mm(D)Special specifications can be designed
Host directionLeft to right or right to leftLeft to right or right to left
Label length25 mm -300 mm(customized)25 mm -300 mm(customized)
Conveyor belt width102mm(customized)112mm(customized)
Paper tube diameter5"-10"apply15"-200"apply
VoltageAC380V, 50 / 60HZ, 3 phaseAC380V, 50 / 60HZ, 3 phase
Machine speed60-100 B/min(it depends on manualoperation and product size)60-120 B/min(it depends on manualoperation and product size)
Power Host3KW+24kw3KW+24kw
Relative temperature0-50℃0-50℃
Relative humidity15%- 90%15%- 90%
Total sizeL600cm*W100cm*H210cmL600cm*W100cm*H210cm
Weight Stainless steel body600 KG(about)+230KG600 KG(about)+220KG


Fully Automatic Liquid 4 Heads Piston Pump Bottle Filling Capping And Labeling LineAutomatic shrink labeling machine
Label length25mm~300mm
Bottle height50mm~230mm(can be customized)
Bottle width40-110mm(can be customized)
Roll Label outer diameter300mm
Roll Label inner diameter76mm
Accuracy±1mm
Label speed30-80pcs/min
Conveyor speed5~25m/min
Suitable label typePVC label
Heating typeelectrict heating shrink
Working air pressure0.4-0.6Mpa
Voltagesleeve machine 220V 8KW, shrink machine 380V 28KW
Weight650KG
Overall dimension5000mm×900mm×1900mm
