Automatic 500g 1kg Horizontal Powder Doypack Filling Packing Machine Powder Premade Bag Packaging Machine

Introduction:

Automatic 500g 1kg Horizontal Powder Doypack Filling Packing Machine Powder Premade Bag Packaging Machine is suitable for packing coffee powder, spice powder, protein powder, flour, milk powder, and some other powder food.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 500g 1kg Horizontal Powder Doypack Filling Packing Machine Powder Premade Bag Packaging Machine

FEATURES

1. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.

2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

3. Automatic checking system can check bag situation, filling and sealing situation.

4. The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.

5. Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.

6. Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running.

Automatic 500g 1kg Horizontal Powder Doypack Filling Packing Machine Powder Premade Bag Packaging Machine

WORKFLOW

Feeding the zipper doypacks

Picking the bags and coding

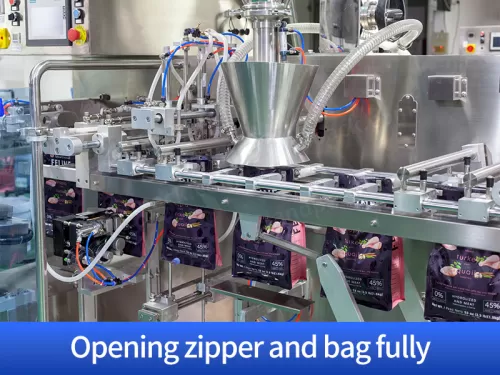

Opening the zip bags

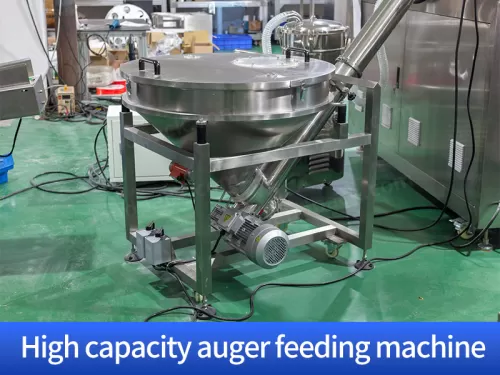

Auger screws filling with dust cleaning

Spoon feeding

Arranging

Sealing

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
