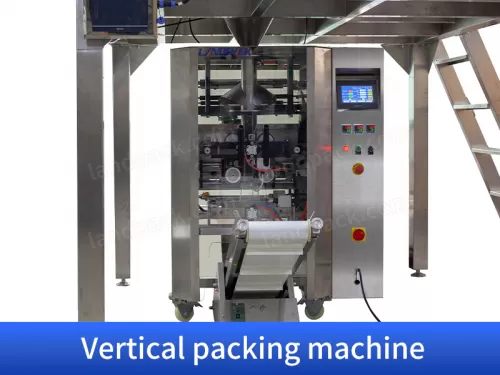

Automatic Form Fill Seal Machine Vertical Pouch Packing Machine With Multihead Weigher

Application:

Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, dry fruit, vegetable salad, frozen food, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Form Fill Seal Machine Vertical Pouch Packing Machine With Multihead Weigher

FEATURES

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

Automatic Form Fill Seal Machine Vertical Pouch Packing Machine With Multihead Weigher

WORKFLOW

Z-type material conveyor

10 heads weigher and packing

Form and seal the bag

Output the finished product

PARAMETER

Model	LD-420	LD-520	LD-720
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm
Bag Width	60-200mm	100-250mm	180-350mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm
Measurement Range	150-1500ml	5-2000ml	4000ml
