Introduction:

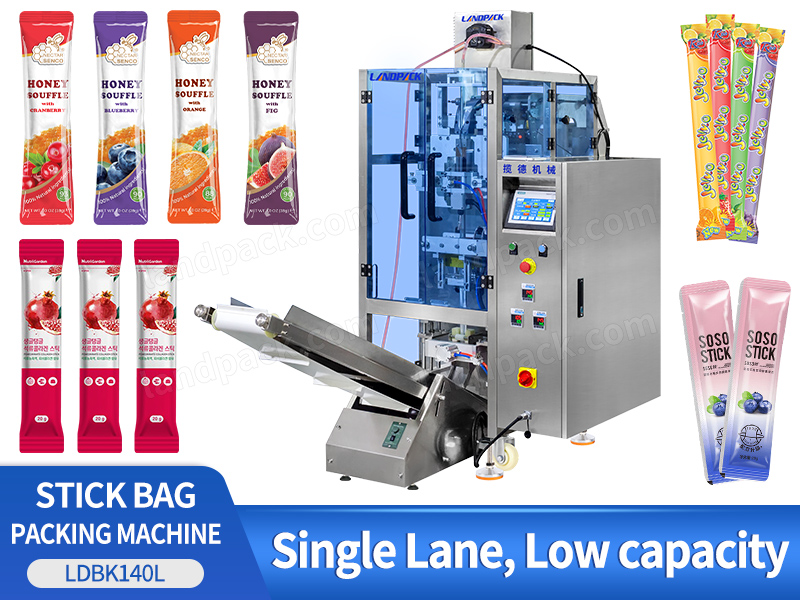

Automatic single lane liquid stick packing machine, it is suitable for many kinds of liquid products, such as honey, mouthwash, cat trest, sauce, ketchup, oil, jelly, shampoo, facial cream, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
Automatic single lane liquid stick packing machine, it is suitable for many kinds of liquid products, such as honey, mouthwash, cat trest, sauce, ketchup, oil, jelly, shampoo, facial cream, etc.
FEATURES

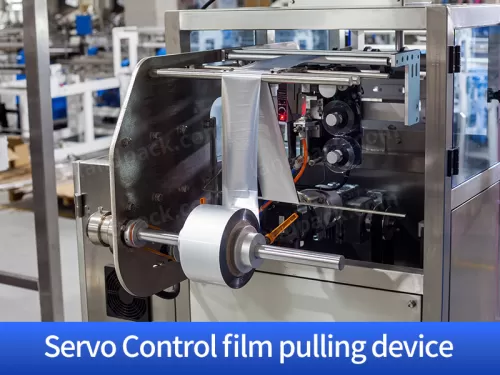

1. The outer sealing paper is controlled by stepping motor,the bag length is stable and accurate positioning;
2. Adopting PlD regulation temperature controller, the temperature is controlled more accurately;

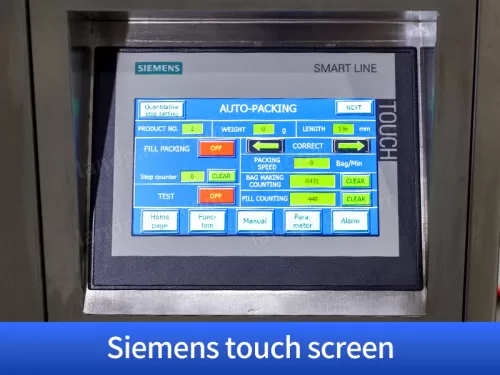

3. PLC control the whole machine action,human-machine interface display, easy to operate.

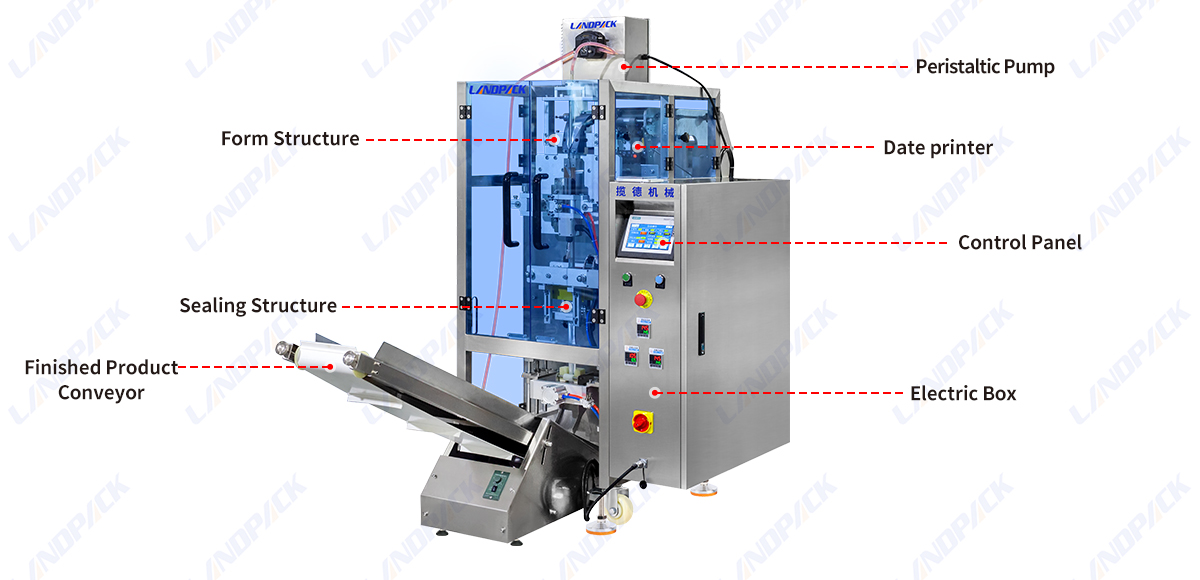

WORKFLOW
Film Unwinding
Film Slitting
Bag Formation
Liquid Filling

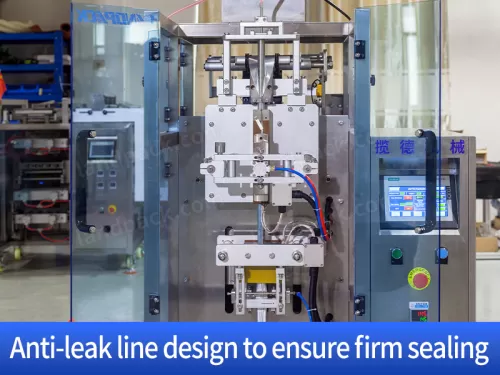

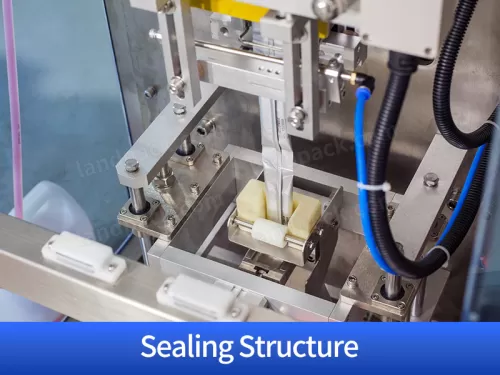

Sealing
Cutting
Batch Coding
PARAMETER
Liquid Packing Machine | ||||
Name | Landpack Single Lane Stick Pack Machine | |||
Model | LDBK-140L | |||

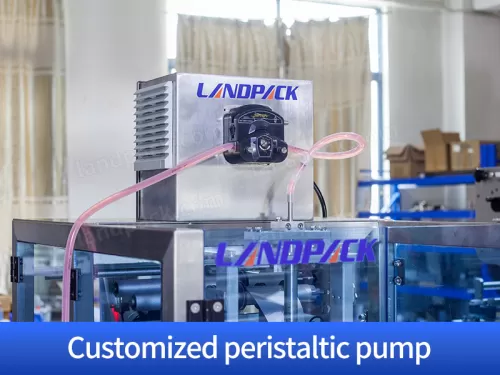

Dosing Method | A: Piston pump 1-30ml; | |||
B: Piston pump 2-42ml; | ||||
C: Magnetic pump 3Liter/min (for pure liquid or oil product) | ||||
Hopper type | A: Single layer SS304 hopper; | |||
B: Double jacket SS304 hopper; | ||||
C: Magnetic pump hose connection to raw liquid tank | ||||
Packing speed | 20-45 bag/min (1200-2700bag/min) | |||
Bag size range | L 40-150mm ; W 15-100mm | |||
Bag Seal type | Stick /pillow | |||
Cut type | A: Teeth cut; | |||
B: Straight cut | ||||
C: Round cut | ||||
D: Irregular cut (Stick Width within 40mm) | ||||
Film thickness | 0.05-0.1mm | |||
Film material | Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper | |||
Drive method | Electricity + Pneumatic | |||
Control style | PLC control system+English/Chinese screen (Or customized panel) | |||
Power | 1.8KW | |||
Power supply | AC220V 1phase 50Hz/ AC380V 3phases 50Hz | |||
Air consumption | 0.4cbm/min 0.8Mpa | |||
Dimension | 750x710x1780 mm | |||
HS CODE for export | 84223030 |
