Application:
Suitable for automatic bottling filling and capping of various granular products. such as beef jerky, biltong, pet food, dry food, popcorn, seeds, chia seeds, nuts,beans, peanut, candy, sunflower seeds, potato chips, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, filbert, corn, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
Suitable for automatic bottling filling and capping of various granular products. such as beef jerky, biltong, pet food, dry food, popcorn, seeds, chia seeds, nuts,beans, peanut, candy, sunflower seeds, potato chips, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, filbert, corn, etc.
FEATURES
1. The whole granule filling line of round bottles and square bottles are shared, with strong compatibility.
2. The conveying line enters the bottle to save labor.
3. Multi-head combined scale metering turntable filling, high combination precision, and turntable lifting speed.
4. Equipped with a UV sterilizer, which can sterilize the inside of the bottle and recover dust before filling, so as to achieve the cleaning effect in the tank.
5. Equipped with nitrogen filling and aluminum foil sealing, product insurance, and ensure food is fresh.
6. Machine body and product touching part are made by stainless steel, completely meets GMP requirements.

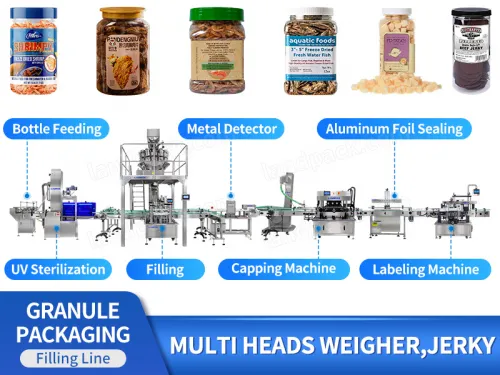

WORKFLOW
Automatic Bottle Conveyor Feeding
Automatic UV Sterilization UV
Automatic Multi-heads Granules Weighing Filling
High Speed Capping
Automatic Aluminum Foil Sealing
Automatic Double Heads Labeling
PARAMETER
Bottle conveyor feeding device | ||
Machine Model | LD-LP800N | |
Power Supply | 220V/110V, 50-60Hz, 200W | |
Turntable Diameter | 800mm(Could be customized) | |
Suitable Bottle Diameter | 20-100mm | |
Suitable Bottle Height | 30-320mm | |
Working Speed | 40-60bottles/min((Could be customized)) | |
Package Size | 1230*1010*1260mm | |
Gross Weight | 141kg |
Automatic UV sterilization UV | ||
Voltage | 380v ,50hz | |
Power | 1100W | |
Bottle size | OD:Φ73-127 H:80-200mm | |
Disinfection speed | 1-45bottles/min(can be customized) | |
Dimension | 2500*1510*2435mm | |
Weight | 200kg |
Multi- heads granules weighing double heads rotary filling machine | |||
Model | LD-GZJ200M-R(double turntable filling) | LD-GZJ100M-R(Single turntable filling) | |
Material | 304# Stainless steel | 304# Stainless steel | |
Filling diameter | φ40 -φ130mm | φ40 -φ130mm | |
Applicable height | 50-200mm (customized according to Bottle size) | 50-200mm (customized according to Bottle size) | |
Filling speed | 30-50 cans per minute | 10-20 cans per minute | |
Air source | 0.6-0.8Mpa | 0.3-0.5Mpa | |
Voltage | 220V,50HZ | 220V,50HZ | |
Power | 2.5KW | 1.5KW | |
N.W./G.W. | 200/320KGS | 100/220KGS | |
Size | 2000*1000*1400mm | 2000*500*1400 |
High speed capping machine | |||
Model | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |
Capacity | 40-100Bottles/min | 30-80Bottles/min | |
Bottle cap diameter | Φ18mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | |
Bottle diameter | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | |
Bottle sealing height | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | |
Power | 2KW | 1.5KW | |
Voltage | 220V、50HZ | 220V、50HZ | |
Air pressure | 0.6-0.8Mpa | 0.5-0.7Mpa | |
Weight | 350kg | 300kg | |
Dimensions | H3120*W1544*L2122 | H3100*W1244*L2122 |
Aluminum foil sealing machine | |||
Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |
Applicable bottle diameter | Φ10-200mm(Could be customized) | Φ10-200mm(Could be customized) | |
Applicable bottle height | H:40-300mm(Could be customized) | H:40-300mm(Could be customized) | |
Speed | 0-30bottle/min | 0-10bottle/min | |
Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals | |
Voltage | 220V,50HZ | 220V,50HZ | |
Power | 1500W | 1200W | |
Dimension | 1500*800*1750mm | 1200*600*1550mm |
Automatic double heads labeling machine | |||
Model | LFT-SM-200C(double heads labeling) | LFT-SM-100C(Single heads labeling) | |
Labeling speed | 10-40Bottle/min | 5-20Bottles/min | |
Labeling accuracy | ±1mm | ±1mm | |
Label maximum width | 200mm(Could be customized) | 150mm(Could be customized) | |
Size of the object being attached | Height≤400mm; Thickness≤100mm(Could be customized) | Height≤400mm; Thickness≤100mm(Could be customized) | |
Label ID | Φ76.2mm | Φ25.4mm | |
Label OD | MaxΦ330mm | MaxΦ230mm | |
Voltage | 220V、50HZ | 220V、50HZ | |
Power | 3.5KW | 2.5KW | |
Weight | 500kg | 400kg | |
Dimension | L3002*W1478*H1810mm | L2950*W1400*H1810mm |
I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
