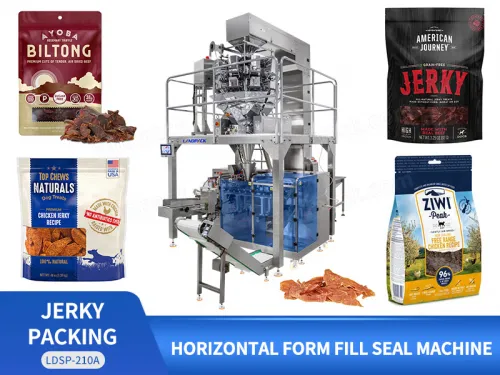

Automatic Beef Jerky Biltong Stand Up Pouch Zipper Bag Doypack Packing Machine

Application:

The Automatic Beef Jerky Biltong Stand Up Pouch Zipper Bag Doypack Packing Machine is suitable for a wide range of products, including beef jerky, biltong, dried fruits, nuts, snack mixes, granola, protein bars, pet treats, coffee, tea, and powdered seasonings.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Beef Jerky Biltong Stand Up Pouch Zipper Bag Doypack Packing Machine

FEATURES

1. Equipped with automatic diagnosis and alarm safety features for enhanced safety and reduced material loss.

2. One-key adjustment for various bag widths.

3. Constructed with top international brand components.

4. Meets international safety and hygiene standards, passing multiple tests.

5. Features a beautiful design, easy operation, stable performance, and low failure rate.

6. Customized horizontal premade pouch packing solution.

7. Z-type elevator for material transport to the weigher.

8. 10-head combination weigher from a well-known brand, ensuring high accuracy.

9. Synchronous operation of desiccant feeder with the combination weigher.

10. Horizontal bag giving station for premade zipper pouches.

11. Ribbon date printer capable of printing up to 3 lines.

12. Zipper pouch opener for easy access.

13. Filling hopper with "no bag, no filling" feature.

14. Sealing device with "empty bag, no sealing" functionality.

15. Conveyor belt outlet for efficient product handling.

Automatic Beef Jerky Biltong Stand Up Pouch Zipper Bag Doypack Packing Machine

WORKFLOW

Z-type elevator

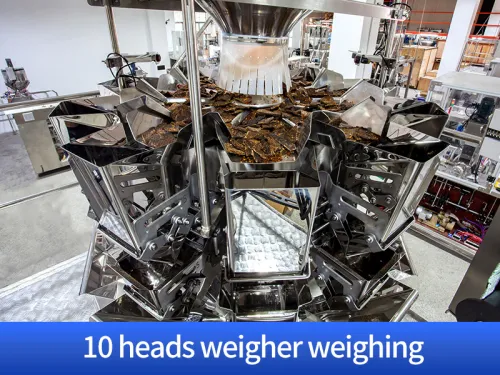

10 heads weigher weighing

Premade pouch feeder

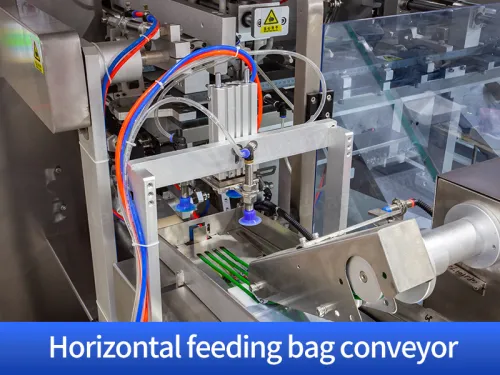

Horizontal feeding bag conveyor

Ribbon code print

zipper pouch opener

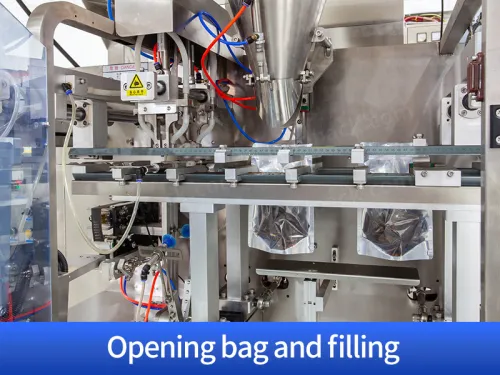

Filling hopper

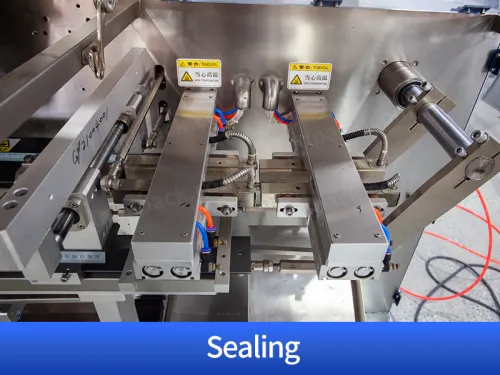

Sealing device

PARAMETER

Automatic Granule Jerky Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator
