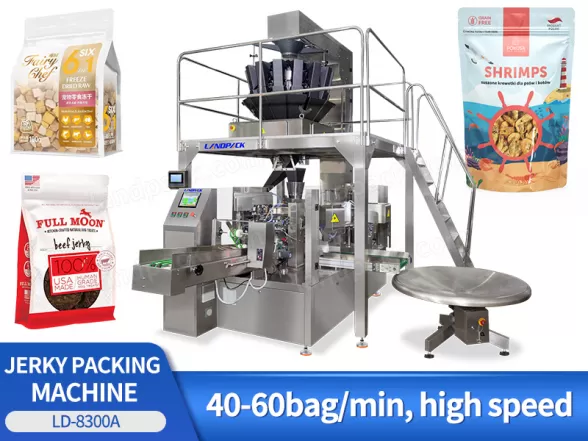

Automatic Jerky Rotary Type Premade Pouch Doypack Granule Packing Packaging Machine

Application:

It automatically opens, fills and seals a wide variety of products including jerky, cashew, beans, peanut, candy, sunflower seeds, popcorn, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, pet food, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Jerky Rotary Type Premade Pouch Doypack Granule Packing Packaging Machine

FEATURES

1. A wide range of pouches: all kinds of pre-made pouches.

2. Pre-made bag packing: perfect sealing quality, upgrade the finished product.

3. Stable and high-speed running.

4. Especially for the easy filling granular products with Premade Pouches that required the high speed production.

Automatic Jerky Rotary Type Premade Pouch Doypack Granule Packing Packaging Machine

WORKFLOW

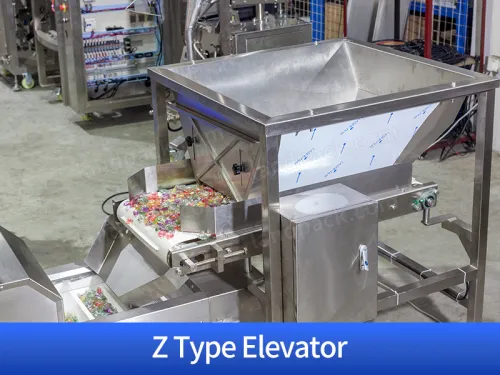

Granule Material Feeding

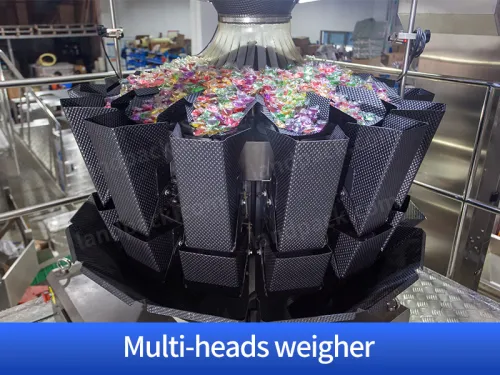

Granule Material weighing

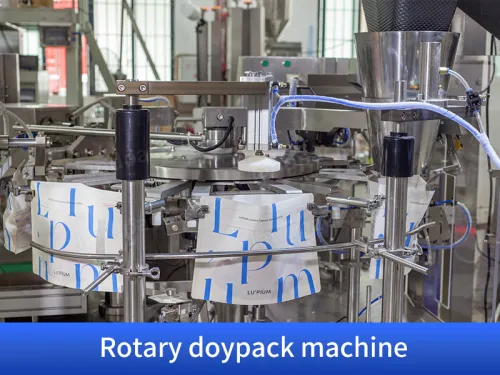

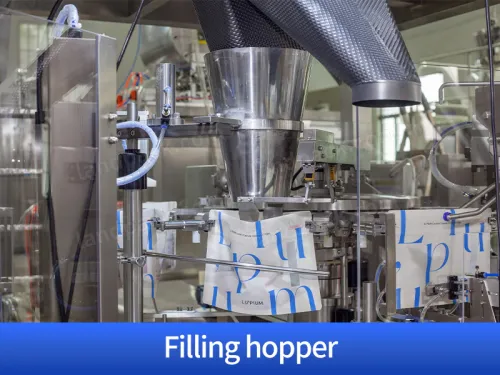

Premade Pouch Opening Filling Sealing

Finished Product Output

PARAMETER

			Automatic Doypack Packing machine
			Model	LD-8200/LD-8250
			Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
			Size	W: 70-200/100-250mm
			Filling range	10-1000g/20-2500g
			Packing speed	40-60bags/min（speed is determined by the product filling quantity）
			Average precision	≤ ±1%
			Total Power	2.5 KW
			Dimensions	1900mm1570mm1700mm（LWH）

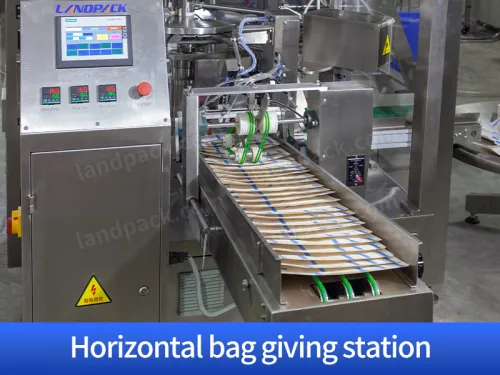

			Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
			Main standard parts	1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperaturecontroller 8. Vacuum pump 9. Inverter 10. Output system
