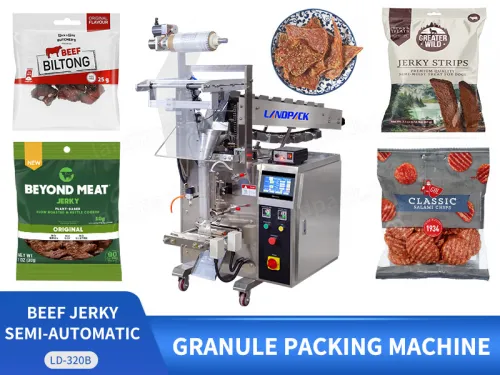

Full Automatic Back Sided Sealing Beef Jerky Vertical Packing machine With Nitrogen Device

Application:

Granule Packing Machine is suitable for granule produts.Such as beef jerky,grains,rice,dry fruits,beans,nuts,salts,sugar,tea,seeds,pet food,etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Granule Packing Machine is suitable for granule produts.Such as beef jerky,grains,rice,dry fruits,beans,nuts,salts,sugar,tea,seeds,pet food,etc.

Full Automatic Back Sided Sealing Beef Jerky Vertical Packing machine With Nitrogen Device

FEATURES

1.With advance photoelectric control system, with powerful expanded function, joint packing device, punching device, satisfied with difference product requirement.

2.Import servo film transporting system, import color sensors, positioning accuracy, high performance machine, packaging beautiful.

3.It can finish bag making, measuring, sealing, cutting, date printing and product output in one operation.

4.Imported PLC computer control system, color touch screen, easy, intuitive and efficient.

5.Packaging material can be PE/polyethylene, PE/aluminum plating, pet/PE, pp, and other heat-sealing packaging materials, etc.

Full Automatic Back Sided Sealing Beef Jerky Vertical Packing machine With Nitrogen Device

WORKFLOW

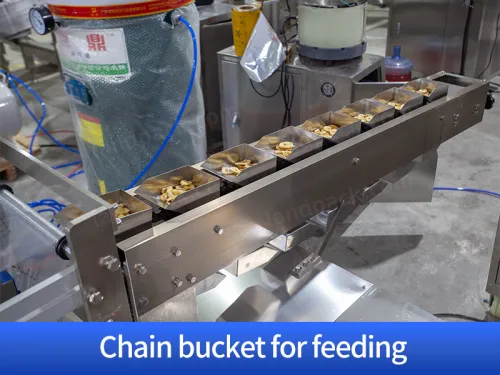

Chain Bucket Feeding

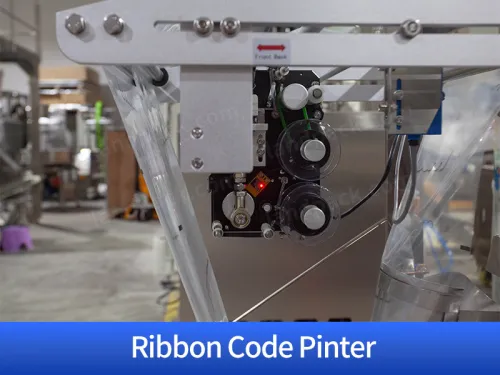

Code Printer

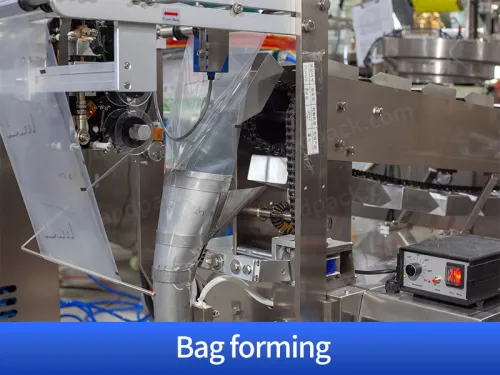

Bag forming

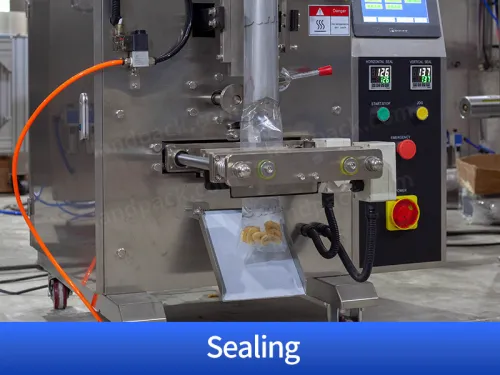

Sealing

Output

PARAMETER

Vertical Packing Machine
Type	LD-320B	LD-380B
Film Width	120-320mm	180-380mm
Bag Length	50-200mm	60-280mm
Bag Width	50-150mm	60-180mm
Range of Measurement	50-500ml	50-570ml
Film Roll Diameter	Max.320mm	Max.320mm
Packaging Rate	35-70bag/min	35-70bag/min
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine Size(LWH)	9706801950mm	11008002150mm
Machine Quality	300KG	450KG
Optional device	1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device
