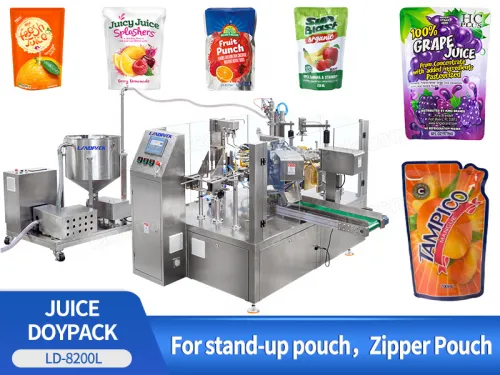

500ml 1L Fruit Juice Doypack Packing Machine Liquid Stand Up Pouch Filling and Sealing Machine

Introduction:

This Rotary Liquid Premade Pouch Filling Machine is suitable for the liquid or the semi-fluid materials packaging,such as detergent liquid , soy sauce, vinegar, juice, beverage.jam, sauce, paint etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This Rotary Liquid Premade Pouch Filling Machine is suitable for the liquid or the semi-fluid materials packaging,such as detergent liquid , soy sauce, vinegar, juice, beverage.jam, sauce, paint etc.

500ml 1L Fruit Juice Doypack Packing Machine Liquid Stand Up Pouch Filling and Sealing Machine

FEATURES

1. Fill the product into the liquid measuring pump, and start the conveyor to completethe product delivery;

2. Combining with liquid pump, pneumatic cylinder measurement, accurate materialquality weighing;

3. Complete bag clamping, bag coding, bag opening and other operations for the mainbag packing machine;

4. The liquid filling nozzle will put the weighed product into the bag along the feedingport,with reflow system, can avoid liquid material leaking through;

5. Seal the packed bags with the bag type main packaging machine, and the bags areexported from finished products;

6. The finished products are packaged by the conveyor, or transported to other packaging machines for the next step.

500ml 1L Fruit Juice Doypack Packing Machine Liquid Stand Up Pouch Filling and Sealing Machine

WORKFLOW

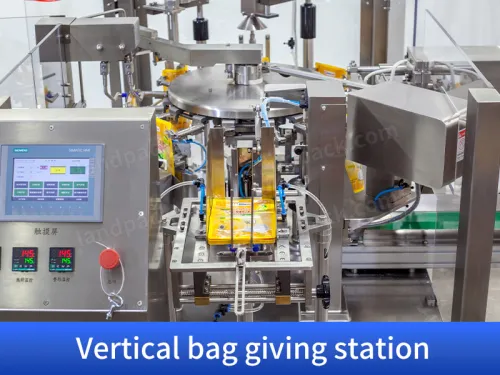

Automatic Bag Feeding

Automatic Bag Open

Bag Openning

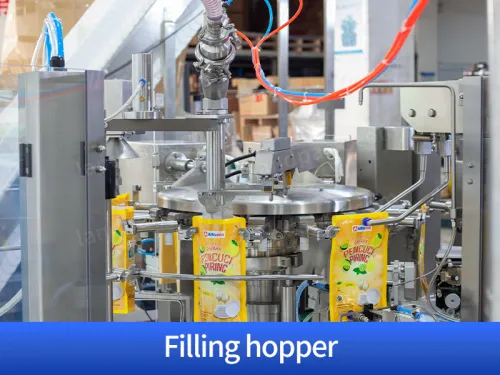

Automatic Liquid Filling

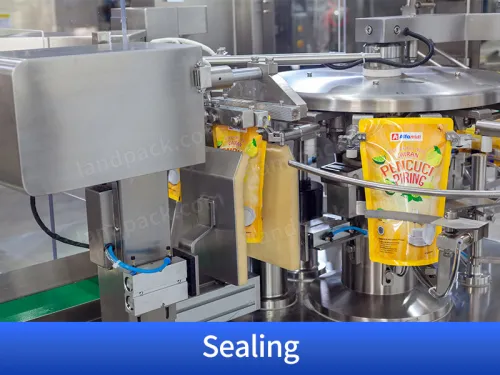

Automatic Sealing

Date Printing

Finished Product Ouput

PARAMETER

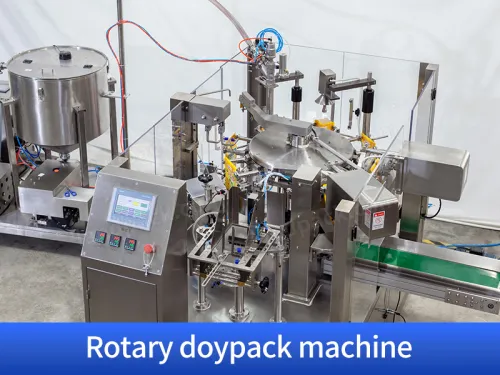

	Automatic Rotary Doypack Liquid Packaging Machine
	Model	LD-8200D/ 8240D/ 8300D
	Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
	size	W: 100-300mm L: 100-450mm
	Filling range	5-2500g (Depending on type of products)
	Packing speed	25-60 bags/min (The speed depends on type of products and packaging material used)
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
