Automatic Glass Plastic Bottle Juice Filling Capping And Labeling Machine Line

Application:

The machine is widely use in food industry, beverage industry, pharmaceutical industry and chemical industry. It's suitable for all kinds of liquid, paste, sauce filling, such as juice, honey, chili sauce, tomato sauce, pearl milk tea, orange juice andother materials filling, it's high versatility.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

The machine is widely use in food industry, beverage industry, pharmaceutical industry and chemical industry. It's suitable for all kinds of liquid, paste, sauce filling, such as juice, honey, chili sauce, tomato sauce, pearl milk tea, orange juice andother materials filling, it's high versatility.

Automatic Glass Plastic Bottle Juice Filling Capping And Labeling Machine Line

FEATURES

1.The entire line is equipped with a negative ion bottle washing machine to clean the inside of the bottle and ensure food hygiene and safety.

2. The body is mainly made of high-quality stainless steel, beautiful appearance that is clean and sanitary, and completely meets the food hygiene requirements.

3. It is light and convenient, has strong adaptability, and has a variety of anti-drip filling heads for selection.

4. It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance, and so on.

5. With the anti-dripping function that can control each nozzle separately, filling nozzles can be driven by a servo motor and filled from the bottom of the bottle. We have the 2/4/6/8/10 nozzles filling machine, please send us a message if you need it.

6. Complete set, the whole line is fully automatic, saving labor.

7. Piston filling machine, precise filling, and easy to adjust filling capacity.

Automatic Liquid Bottle Glass Filling Capping And Labeling Line

Automatic Liquid Bottle Glass Filling Capping And Labeling Line

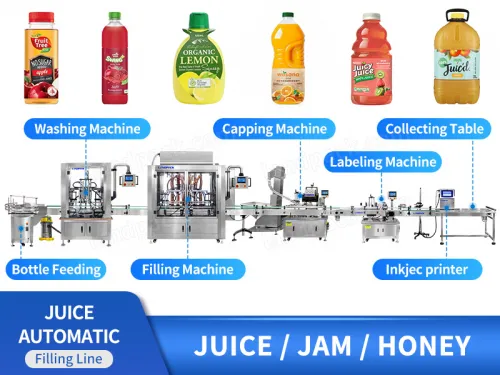

WORKFLOW

01

Automatic Bottle Feeder

02

Automatic Bottle Washing

03

Automatic Filling Machine

04

Automatic Capping Machine

05

Automatic Labeling Machine

06

Automatic Inkject Date Printer

PARAMETER

Automatic Liquid Bottle Glass Filling Capping And Labeling LineAutomatic Bottle feeder
Machine ModelLD-LP800N
Power Supply220V/110V, 50-60Hz, 200W
Turntable Diameter800mm
Suitable Bottle Diameter20-100mm
Suitable Bottle Height30-320mm
Working Speed40-60bottles/min(depending on bottle size)
Package Size1230*1010*1260mm
Gross Weight141kg


Automatic Liquid Bottle Glass Filling Capping And Labeling LineAutomatic bottle washing machine
Washing head4 Heads(can be customized)6 Heads(can be customized)8 Heads(can be customized)
Bottle diameter30-130mm(customized)30-130mm(customized)30-130mm(customized)
Washing waynegative ionsnegative ionsnegative ions
Washing speed14-24bottles pet mintue25-35bottles pet mintue36-46bottles pet mintue
Machine bodySS 304SS 304SS 304
Machine voltage220V(can be customized) 3.5KW220V(can be customized) 3.5KW220V(can be customized) 3.5KW
Machine weight580kg680kg780kg
Machine size(L*W*H)2000*1000*1800mm2000*1500*1800mm2000*2000*1800mm


Automatic Liquid Bottle Glass Filling Capping And Labeling LineBottle Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08LFZ-10
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Production Speed<15-25 bottles/min <20-35 bottles/min <30-40 bottles/min <40-50 bottles/min
Measurement Accuracy±1%±1%±1%±1%
Power2KW2.5KW3.5KW5KW
Voltage220V, 50Hz220V, 50Hz220V, 50Hz220V, 50Hz
Air consumption0.6-8Mpa0.6-8Mpa0.6-8Mpa0.6-8Mpa
Weight600kg650kg800kg800kg
DimensionL4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)


Automatic Liquid Bottle Glass Filling Capping And Labeling LineAutoamtic capping machine
ModelLFX-JX-01(Four wheel capping)LFX-GS-150(Eight wheel capping)LFX-GS-250(Six wheel capping)
Capacity20-50Bottles/min40-100Bottles/min30-80Bottles/min
Bottle cap diameterΦ22mm-Φ80mm(Could be customized)Φ18mm-Φ80mm(Could be customized)Φ18mm-Φ80mm(Could be customized)
Bottle diameterΦ35mm-Φ140mm(Could be customized)Φ35mm-Φ140mm(Could be customized)Φ35mm-Φ140mm(Could be customized)
Bottle sealing height38mm-300mm(Could be customized)38mm-300mm(Could be customized)38mm-300mm(Could be customized)
Power1.5KW2KW1.5KW
Voltage220V、50HZ220V、50HZ220V、50HZ
Air pressure0.6-0.8Mpa0.6-0.8Mpa0.5-0.7Mpa
weight250kg350kg300kg
DimensionsH3000*W800*L1600mmH3120*W1544*L2122H3100*W1244*L2122


Automatic Liquid Bottle Glass Filling Capping And Labeling LineAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm20mm~300mm
Label width/height20mm~200mm(can be customized)20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)30-150mm(can be customized)
Roll Label outer diameter300mm300mm
Roll Label inner diameter76mm76mm
Accuracy±1mm±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)Adhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa0.4-0.6Mpa
Voltage220V can be customized 4KW220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm


Automatic Liquid Bottle Glass Filling Capping And Labeling Linecoding machine
Printing speed1024 seconds(5×7)
Power220V/50HZ,150VA
Printing directionPositive sequence/reverse order/reverse/reverse
Printing distanceThe nozzle and the object to be sprayed are kept within 3cm
Store informationThe system can store 1000 print information
Ink consumption70 million words per print(5X7)
Machine weight18kg
