Applications

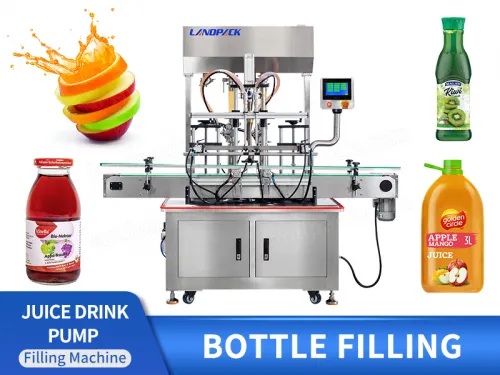

Automatic Liquid Juice Piston Filling Machine HIgh Quality Filler

Application:

Automatic servo motor bottle filling machine can fill up to 16 containers at the same time, widely used in filling various liquid and viscous liquids, such as juice, fruit drink, paint, edible oil, honey, cream, paste, sauce, lubricating oil, daily chemicals and other liquid products.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Juice Piston Filling Machine HIgh Quality Filler

FEATURES

1.Each stand-alone machine can be operated independtly and linked.

2.PLC control ,touch bottle operatation ,simple and convenient operation.

3.The use of internatioal famouse brand electrical components, performance and stability.

4.Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.

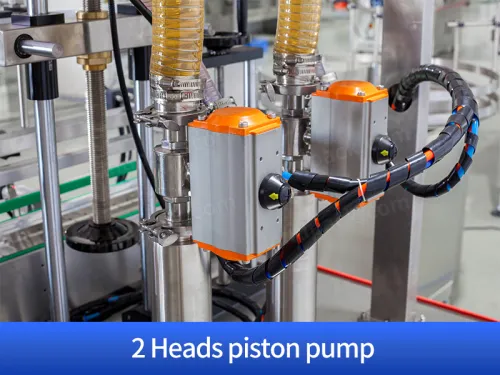

5.Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.

Automatic Liquid Juice Piston Filling Machine HIgh Quality Filler

WORKFLOW

Automatic Bottle Filling

PARAMETER

2 Heads Gear Pump Filling Machine
Model	LFZ-02	LFZ-04	LFZ-06	LFZ-08
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<10-20 bottles/min	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2KW	2.5KW	3.5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	550kg	600kg	650kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
