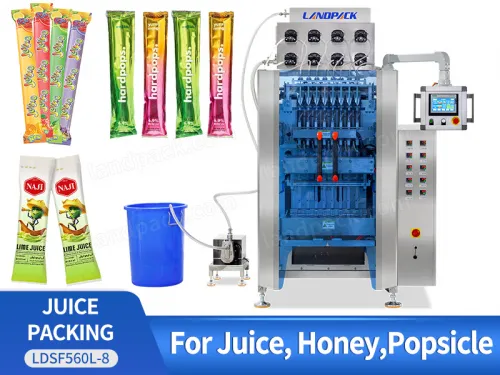

Automatic Multi-Lane Stick Liquid Packing Machine For Juice Jelly Energy Drinks

Introduction:

Multi-line back sealing liquid packing machine suitable for many kinds of liquid products, such as juice, energy drink, jelly, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, salad dressing, cream, body wash liquid, and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Multi-Lane Stick Liquid Packing Machine For Juice Jelly Energy Drinks

FEATURES

1. Accurate measurement, high packaging efficiency, compact structure, low noise, and long service life.

2. High degree of automation, filling, feeding, printing batch number, cutting easy tear, finished bag output, and so on, quick and convenient adjustment.

3. The whole machine adopts imported PLC control, and imported servo motor drive, running stably.

Automatic Multi-Lane Stick Liquid Packing Machine For Juice Jelly Energy Drinks

WORKFLOW

Film Unwinding

Bag Formation

Automatic Filling

Automatic Sealing

Automatic Cutting

Automatic Counting Cartoning

PARAMETER

Multi Lane Juice Stick Bag Packing Machine
Model	LD-280L	LD-560L
Track Number	4~6 Track	8~12 Track

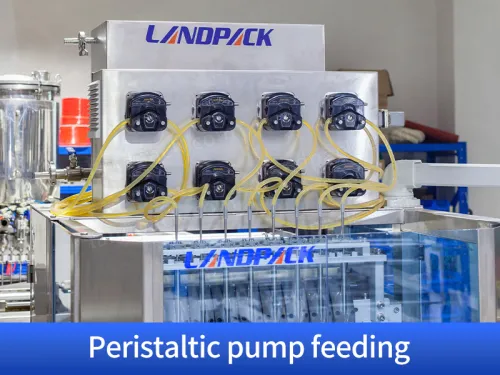

Filling Method	1.Piston pump; 2.Peristaltic Pump; 3.Volumetric cup
Capacity	Max.35 cycle/min
Sachet Size	L:50--180mm; W:17-30mm	L:50--180mm; W:17--30mm
Film Width & Thickness	Max.280mm; 0.07-0.1mm	Max.560mm; 0.07-0.1mm
Sealing Type	Backsealing/ Stick bag
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw
