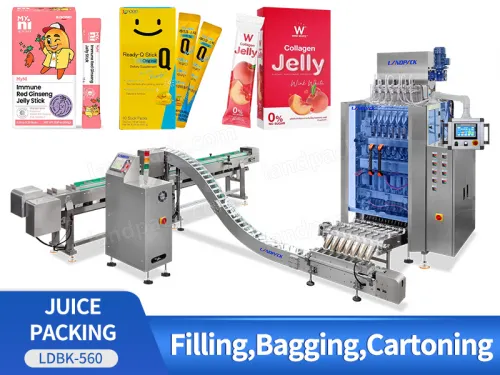

Automatic Multi Track Juice Stick Packing Machine With Counting Cartoning Machine

Introduction:

Automatic multi track juice stick packing machine with counting cartoning machine is designed for liquid products, such as juice, shampoo, shower gel, fruit juice, syrup, mayonnaise, honey, milk, mouthwash, sauce, jam, jelly, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Multi Track Juice Stick Packing Machine With Counting Cartoning Machine

FEATURES

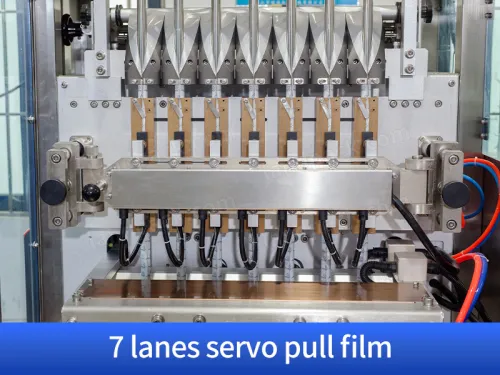

1. Servo control reciprocating film pulling, ensures nice sealing without wrinkles.

2. Anti-leak line design to ensure firm sealing; round corner designe to ensure perfect curvature.

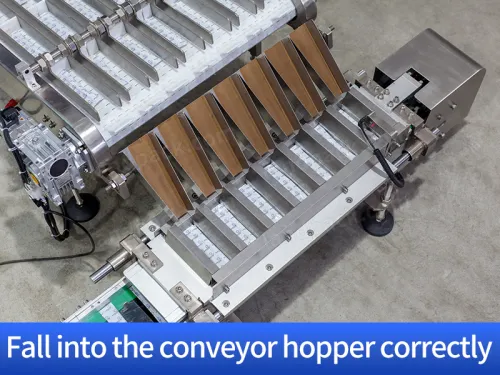

3. The finished product conveyor track and the ramp conveyor belt are seamlessly linked to ensure that each product falls accurately into the track.

4. Counting is adjustable to meet different quantity requirements.

5. Beautiful packaging and firm sealing.

6. Adopt brand PLC control, and automatic counting, to ensure the stable work of the machine and easy maintenance.

7. Set parameters through the intelligent touch screen, only one person needs to operate the machine, which is more efficient.

8. The main components with stainless steel, and corrosion resistance, to adapt to the different environments of the workshop.

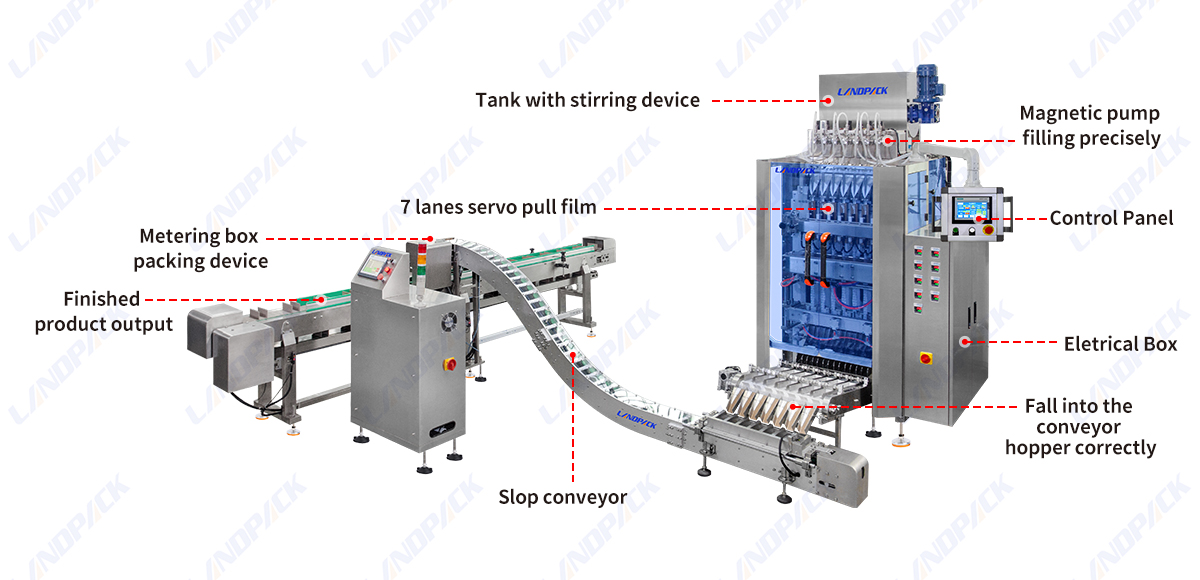

Automatic Multi Track Juice Stick Packing Machine With Counting Cartoning Machine

WORKFLOW

Film Unwinding

Bag Formation

Automatic Filling

Automatic Sealing

Automatic Cutting

Automatic Counting Cartoning

PARAMETER

Multi-Lane Packaging Machines For Juice
Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1. Piston pump; 2. Peristaltic Pump
Capacity	Max.40 cycles/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8mm³/min, 2.8kw	0.8 mpa, 0.8mm³/min, 4.1kw	0.8 mpa, 0.8mm³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
