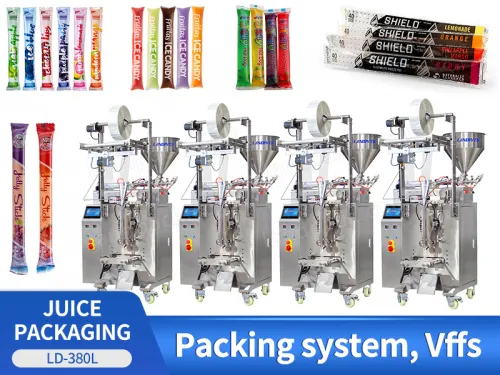

Automatic Vertical Freeze Juice Bars Popsicles Packaging Packing Machine

Introduction:

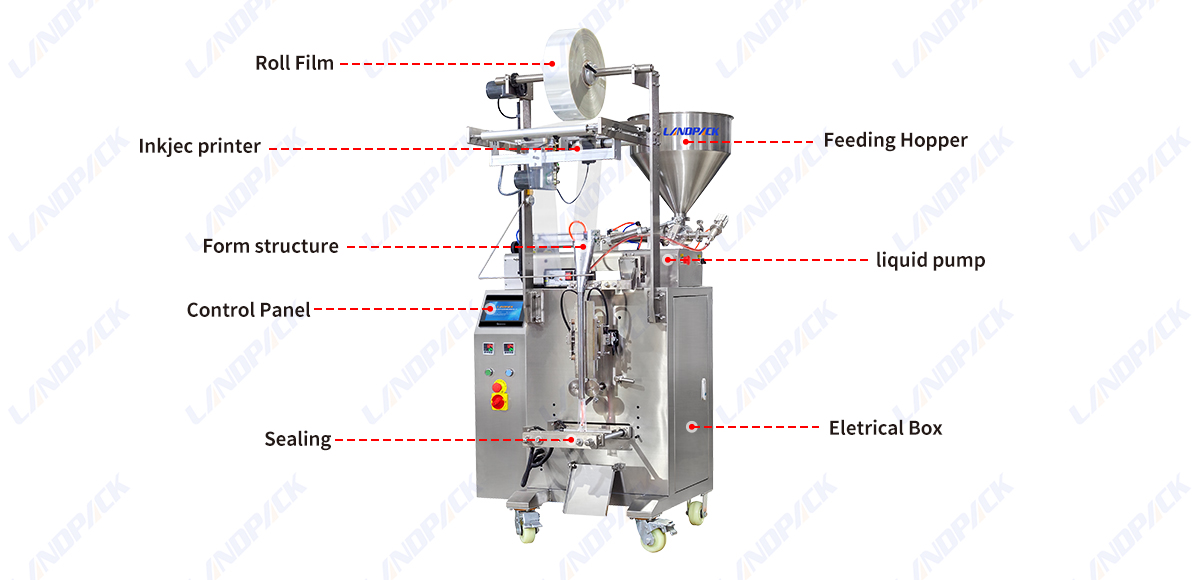

LD-380L Liquid Juice Packing Machine is widely used to pack juice, milk, soybean milk, sauce, vinegar, yellow wine, and all kinds of drinks with film.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

LD-380L Liquid Juice Packing Machine is widely used to pack juice, milk, soybean milk, sauce, vinegar, yellow wine, and all kinds of drinks with film.

Automatic Vertical Freeze Juice Bars Popsicles Packaging Packing Machine

FEATURES

1. Wide range of packaging: suitable for liquid juice in various states and properties

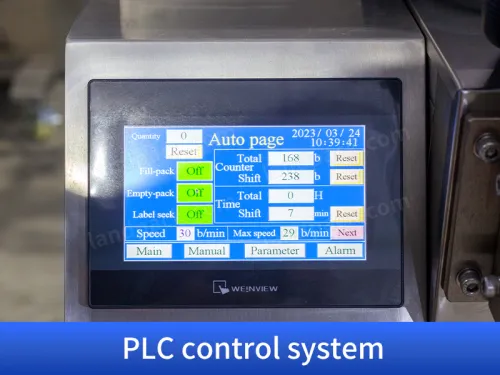

2. Convenient operation:Intelligent key control panel control and man-machine interface operation system are adopted to make the operation intuitive and convenient;

3. Convenient adjustment: the replacement of varieties can be completed in about ten minutes.

4. Suitable for different types of packaging bags;

5. Perfect prevention system to ensure the yield and avoid wasting bags and materials;

6. The packaging part of the machine is made of stainless steel to ensure the hygiene of materials and comply with GMP standards.

Automatic Vertical Freeze Juice Bars Popsicles Packaging Packing Machine

WORKFLOW

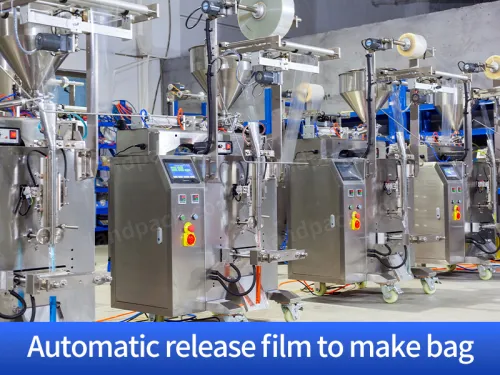

Automatic Film Roll Making

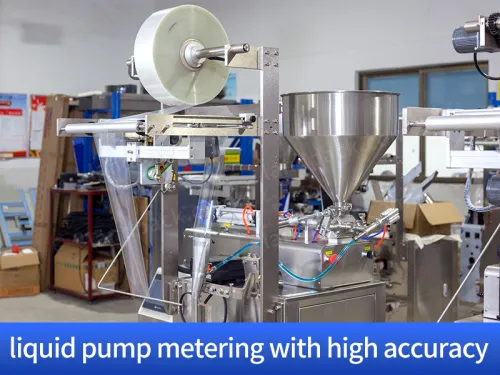

Automatic Liquid Filling

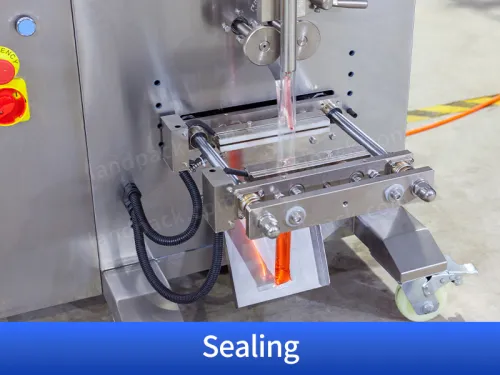

Automatic Sealing

PARAMETER

Vertical Vffs Packing Machine
Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
